Manufacturer: Siemens
Product No.: 6AV7892-0AC10-1AB0
Country of origin:Germany
Product Type: Panel PC
Barcode: 85371098
Payment: T/T, Western Union
Weight: 17450g
Dimensions: 67.00 x 55.00 x 28.00 cm
Shipping port: Xiamen
Warranty: 12 months

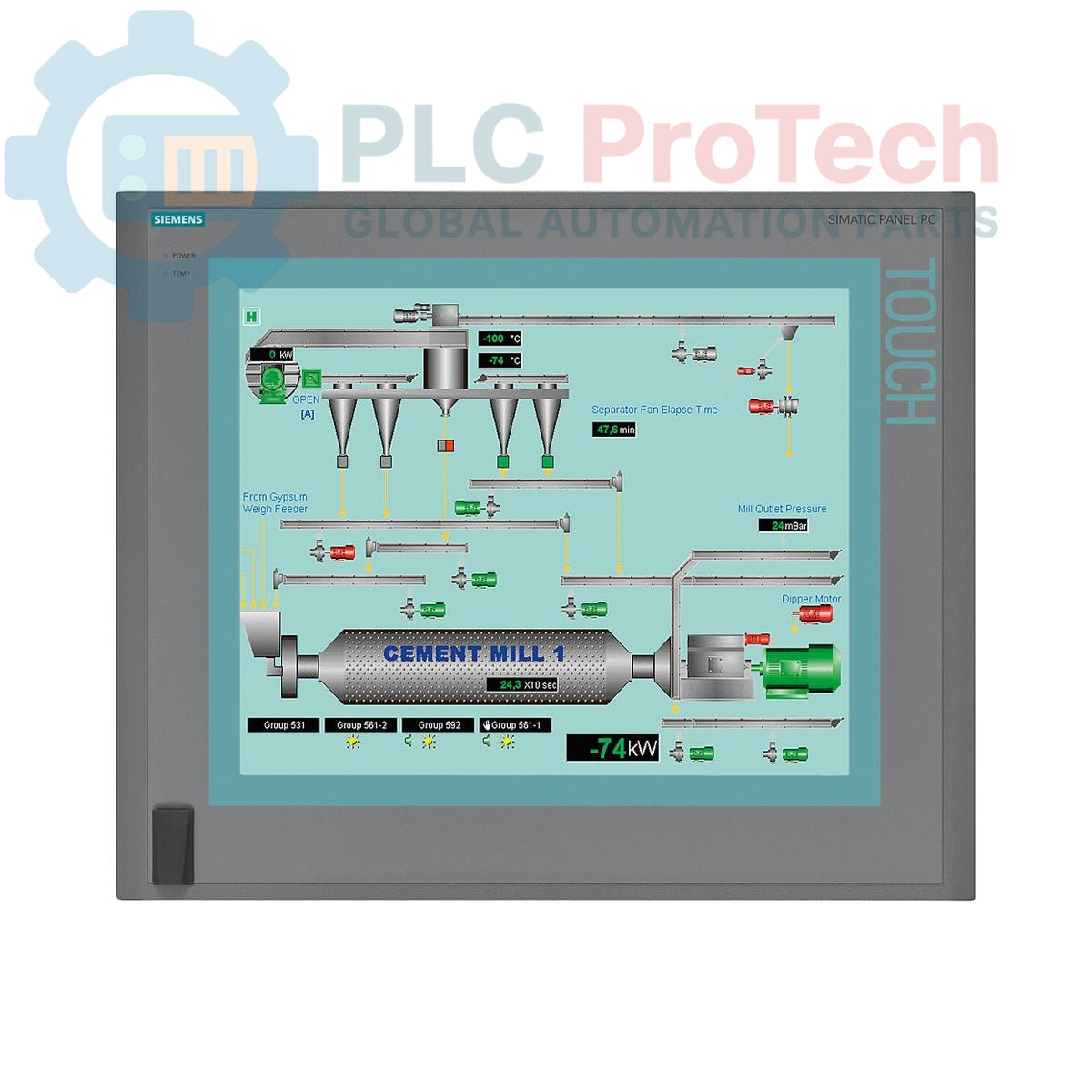

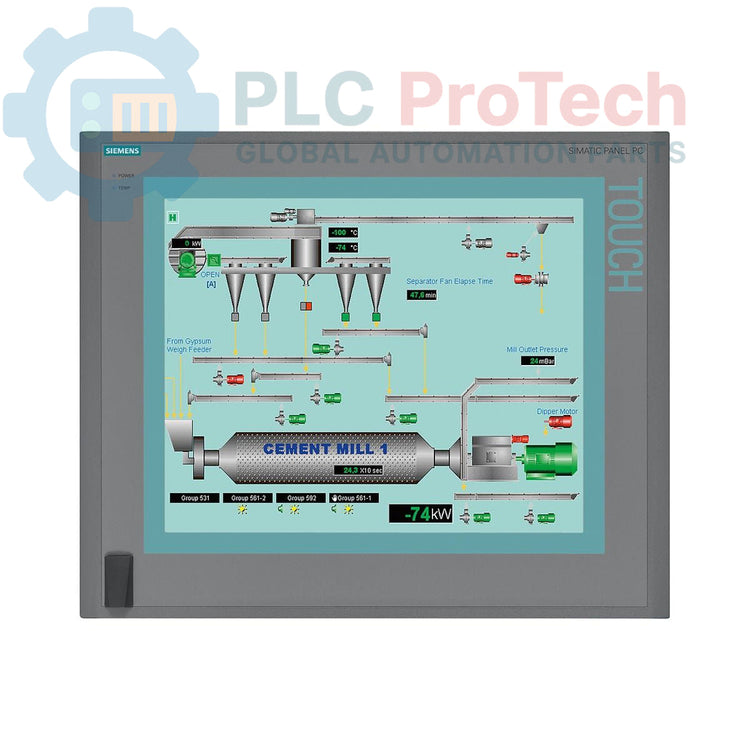

The 6AV7892-0AC10-1AB0 is a SIMATIC HMI IPC677C Panel PC from Siemens, designed for demanding human-machine interface and control tasks in industrial environments. This unit features a 15-inch touchscreen display with a resolution of 1024x768 pixels. It is powered by an Intel Celeron P4505 processor and equipped with 2 GB of DDR3 RAM and a 250 GB SATA hard disk drive for application and data storage. Connectivity is provided through dual Gigabit Ethernet ports, a dedicated PROFINET interface, and multiple USB 2.0 ports. The system includes integrated monitoring for watchdog, temperature, and fan status, along with an onboard RAID controller for data redundancy.
| Specification | Value |
|---|---|
| Manufacturer | Siemens |
| Product Series | SIMATIC HMI IPC677C |
| Model Number | 6AV7892-0AC10-1AB0 |
| Product Type | Panel PC |
| Display | 15" Touchscreen |
| Resolution | 1024 x 768 pixels |
| Processor | Intel Celeron P4505 (2 Cores / 2 Threads, 1.86 GHz, 2 MB Cache) |
| Memory (RAM) | 2 GB DDR3 1066 DIMM |
| Buffered SRAM | 2 MB |
| Storage | 250 GB HDD SATA |
| Optical Drive | DVD+-R+-RW |
| Power Supply | 24 V DC |
| Ethernet Ports | 2 x 10/100/1000 Mbit/s |
| PROFINET Interface | Yes (3x RJ45, CP 1616-compatible) |
| USB Ports | 4 x USB V2.0 (rear), 1 x USB (front) |
| Serial Port | 1 x COM1 |
| Expansion Slots | 2 x PCI (free) |
| Operating System | Windows XP Professional SP3 MUI (de, en, fr, es, it) |
| Product Lifecycle Status | Phase-Out |
| Shipping Weight | 17.45 kg |
| Package Dimensions (Calculated) | 67.00 x 55.00 x 28.00 cm |
| Country of Origin | Germany (Estimate) |
CRITICAL WARNING: RISK OF ELECTRIC SHOCK
Disconnect all power sources before installation, servicing, or removal. Failure to de-energize equipment can result in severe injury or death. All work must be performed by qualified personnel in accordance with local electrical codes.
