Siemens 6AV7892-0BC34-1BC0 SIMATIC IPC677C Panel PC

Description

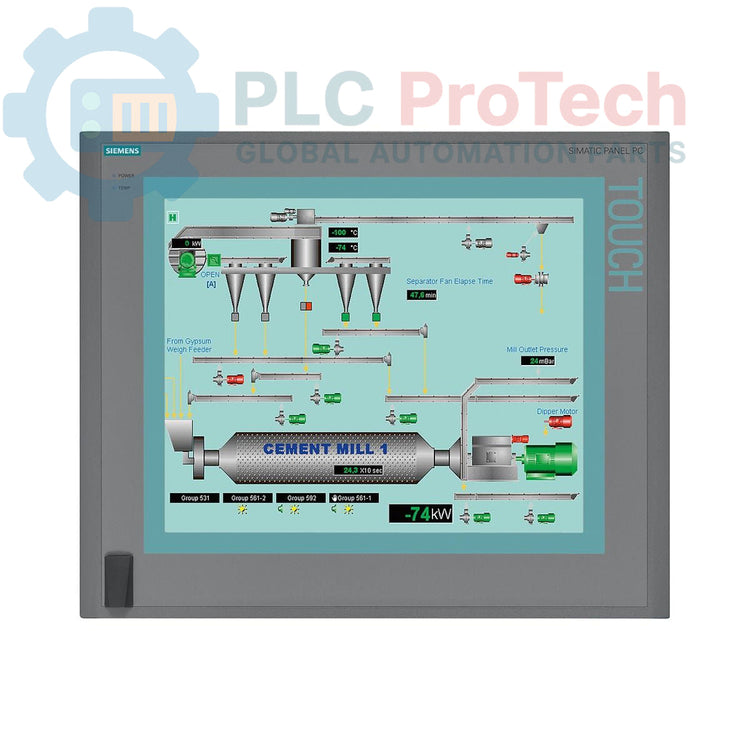

This is a Siemens 6AV7892-0BC34-1BC0 SIMATIC HMI IPC677C, an industrial panel PC designed for human-machine interface (HMI) and control applications. It features a 15-inch touch display with a 1024x768 resolution and is powered by an Intel Celeron P4505 processor. The unit is equipped with 4 GB of DDR3 RAM, a 50 GB SLC solid-state drive for robust data storage, and extensive connectivity including PROFINET, dual Gigabit Ethernet, and multiple USB ports. Integrated monitoring for watchdog, temperature, and fan status ensures operational reliability in demanding industrial environments.

Features

• 15-inch resistive touch screen display.
• Intel Celeron P4505 dual-core processor (1.86 GHz).
• 50 GB Solid-State Drive (SLC) for high-endurance performance.
• Integrated PROFINET interface (CP 1616-compatible).
• Onboard RAID controller for data redundancy.
• Built-in watchdog, temperature, and fan monitoring functions.
• Front-panel USB port for convenient access.
• PCI and PCIe (x16) expansion slots for additional hardware.
• Pre-installed Windows 7 Ultimate 32-bit operating system.

Applications

• Process visualization and control
• Machine data acquisition and logging
• Manufacturing Execution Systems (MES) terminals
• Factory floor automation control
• Quality assurance stations

Technical Specifications

Installation Guidelines

1. 1
   Panel Cutout and Mounting: Prepare the control cabinet panel cutout according to the device's mechanical drawings. Ensure the mounting surface is clean, flat, and rigid. Insert the Panel PC into the cutout and secure it evenly using all provided mounting clamps to maintain the specified IP rating. Do not overtighten.
2. 2
   Protective Earth (PE) Connection: Connect the chassis to the main protective earth busbar of the cabinet using a short, low-impedance conductor. This connection is critical for operator safety and electromagnetic compatibility (EMC). Verify the integrity of the ground connection before applying power.
3. 3
   Power Connection: Connect the 110/230 V AC power supply using the provided power cable. Ensure the source voltage matches the device's rating. Route power cables separately from signal and communication cables to minimize electrical noise interference.
4. 4
   Interface Wiring: Connect Ethernet, PROFINET, USB, and serial cables as required by the application. Use high-quality, shielded cables for all communication links. Ensure cable shields are properly terminated at one end, typically at the cabinet ground bar, to prevent ground loops. Secure all connectors firmly.
5. 5
   Initial Power-Up: After verifying all connections, remove LOTO devices and apply power to the Panel PC. Observe the boot sequence to ensure the operating system loads correctly. Proceed with application-specific software configuration and testing.
