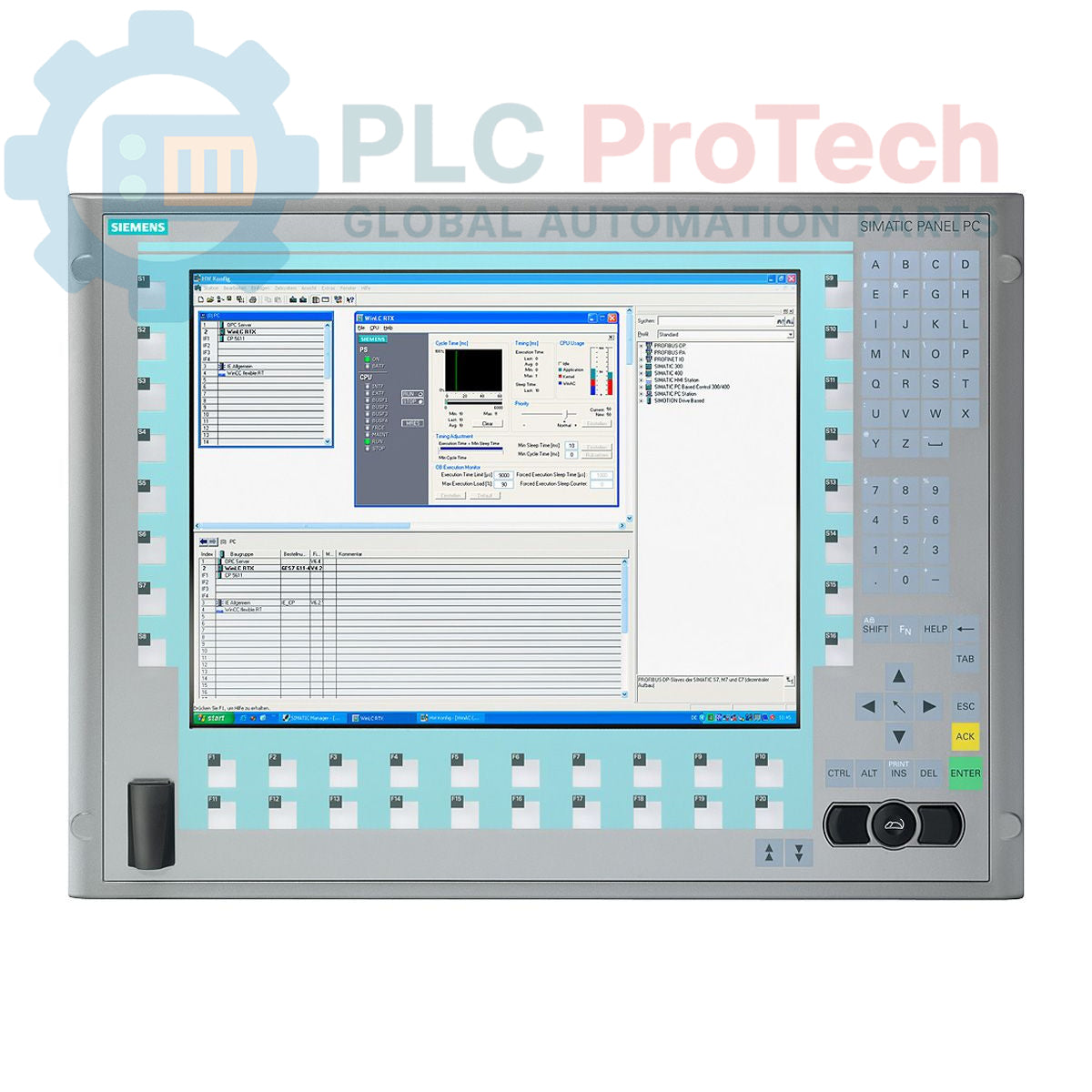

Siemens 6AV7893-0BG10-0AA0 SIMATIC IPC677C Panel PC

SKU 6AV7893-0BG10-0AA0

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6AV7893-0BG10-0AA0
Country of origin:Germany
Product Type: Panel PC
Barcode: 85371098
Payment: T/T, Western Union
Weight: 17450g
Dimensions: 67.0 x 55.0 x 28.0 cm
Shipping port: Xiamen
Warranty: 12 months

Description

The Siemens 6AV7893-0BG10-0AA0 is a SIMATIC IPC677C series Panel PC designed for demanding human-machine interface (HMI) and control tasks in industrial environments. This unit integrates a powerful Intel Core i7-610E processor with a 15-inch keypad display, providing a robust platform for visualization and data processing. It is equipped with 2 GB of DDR3 RAM, a 250 GB SATA hard drive, and an onboard RAID controller for data redundancy. Connectivity options include dual Gigabit Ethernet ports, multiple USB 2.0 interfaces, and a serial port, making it suitable for integration into complex automation networks.

Features

Processor: Intel Core i7-610E (2C/4T, 2.53 GHz, 4 MB Cache)
Display: 15-inch keypad interface with 1024 x 768 resolution
Memory: 2 GB DDR3 1066 DIMM
Storage: 250 GB SATA Hard Disk Drive (HDD)
Networking: Dual 10/100/1000 Mbit/s Ethernet ports
Expansion: Two free PCI slots for additional hardware
System Monitoring: Integrated watchdog, temperature, and fan monitoring
Power Supply: 110/230 V AC input with NAMUR specification
Interfaces: Includes four rear USB 2.0 ports, one front-side USB port, and one serial (COM1) port

Applications

Process visualization and control systems
Machine-level data acquisition and HMI
Manufacturing Execution Systems (MES) terminals
Industrial automation control rooms

Technical Specifications

Specification	Value
Product Series	SIMATIC HMI IPC677C
Processor	Intel Core i7-610E (2 Cores, 4 Threads, 2.53 GHz, Turbo Boost, HT, VT, 4 MB cache)
Memory	2 GB DDR3 1066 DIMM
Internal Storage	250 GB HDD SATA
Storage Controller	Onboard RAID Controller
Display Type	15" Key (Keypad Interface)
Display Resolution	1024 x 768 pixels
Ethernet Ports	2 x 10/100/1000 Mbit/s
USB Ports	4 x USB 2.0 (rear), 1 x Front-Side USB Interface
Serial Port	1 x COM1
Expansion Slots	2 x PCI (free)
Optical Drive	Not included
Operating System	Not included
Power Supply	110/230 V AC with NAMUR specification
Power Cable	Europe
Product Lifecycle Status	Phase-Out
Manufacturer	Siemens
Country of Origin	Contact us for details
Shipping Weight	17.45 kg
Package Dimensions (Calculated)	67.0 x 55.0 x 28.0 cm

Installation Guidelines

CRITICAL WARNING: Hazardous voltages are present. Installation must be performed by qualified personnel only. Ensure the control cabinet is completely de-energized and locked out (LOTO) before beginning any installation, wiring, or maintenance procedures. Failure to comply can result in severe injury or death.

1 Verify the panel cutout dimensions against the device's mechanical drawings. Ensure the mounting surface is clean, flat, and can support the weight of the Panel PC.
2 Insert the Panel PC into the prepared cutout from the front. Secure it from the rear using all provided mounting clamps, tightening them evenly to the manufacturer's specified torque to ensure a proper seal.
3 Connect the protective earth (PE) or functional ground terminal to the cabinet's main ground bus using a low-impedance conductor. This connection must be made first for safety.
4 Connect the AC power supply cable to the unit's power input terminal. Route communication cables (Ethernet, USB, Serial) away from high-voltage power lines to minimize electromagnetic interference.
5 Ensure adequate ventilation clearance around the unit's heat sink and fan openings as specified by the manufacturer to prevent overheating during operation.

FAQ

What processor is installed in this Panel PC?

It is equipped with an Intel Core i7-610E processor, featuring 2 cores, 4 threads, a 2.53 GHz base clock, and 4 MB of cache.

Does this unit come with an operating system?

No, the 6AV7893-0BG10-0AA0 is supplied without a pre-installed operating system, allowing for custom software installation.

What are the primary communication interfaces?

The unit includes two 10/100/1000 Mbit/s Ethernet ports, four rear USB 2.0 ports, one front USB port, and one serial (COM1) port.

What are the power supply requirements?

This Panel PC operates on a 110/230 V AC power supply and is delivered with a European power cable.

Are there expansion slots available?

Yes, this model provides two free PCI slots for installing additional expansion cards.
