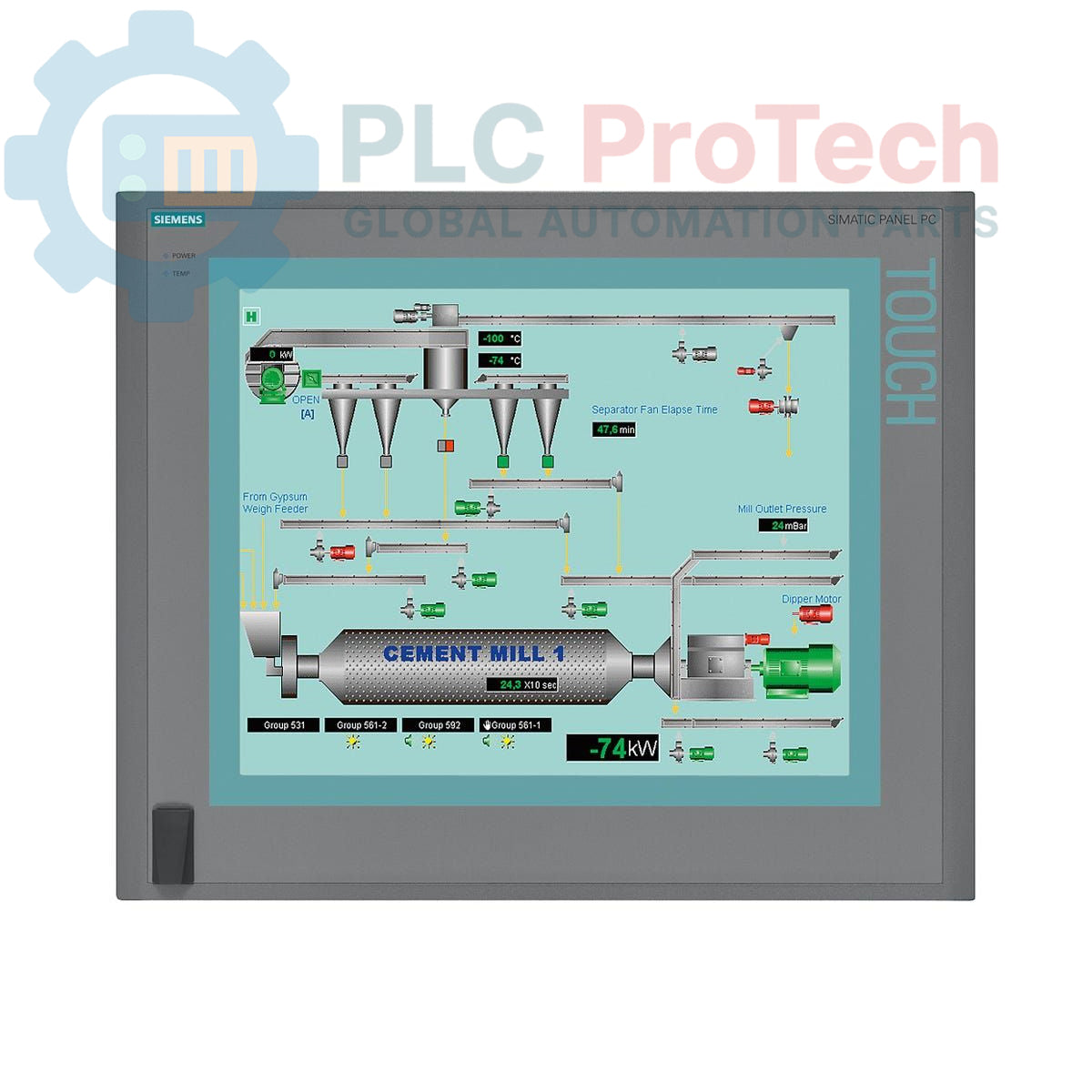

Siemens 6AV7894-0FD12-1AB0 SIMATIC IPC677C Panel PC

SKU 6AV7894-0FD12-1AB0

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6AV7894-0FD12-1AB0
Country of origin:Germany
Product Type: Panel PC
Barcode: 85371098
Payment: T/T, Western Union
Weight: 17350g
Dimensions: 22.0 x 46.7 x 22.5 cm
Shipping port: Xiamen
Warranty: 12 months

Description

The Siemens 6AV7894-0FD12-1AB0 is a SIMATIC HMI IPC677C, an industrial-grade Panel PC designed for demanding human-machine interface and control applications. This unit features a 19-inch touch display with a 1280 x 1024 resolution and is powered by an Intel Core i3-330E processor. It is configured with 2 GB of DDR3 RAM and a redundant RAID1 storage system using two 320 GB SATA hard drives. Integrated system monitoring for watchdog, temperature, and fan status ensures operational reliability. The device includes a comprehensive set of interfaces, including dual Gigabit Ethernet ports, multiple USB 2.0 ports, and a serial port, all housed in a robust enclosure suitable for industrial environments.

Features

19-inch touch display with 1280 x 1024 pixel resolution.
Intel Core i3-330E processor (2.13 GHz, 2 Cores, 4 Threads).
2 GB DDR3 1066 DIMM system memory.
RAID1 mirrored disk configuration with two 320 GB SATA (2.5") hard drives.
Integrated DVD+/-R+/-RW optical drive.
Dual 10/100/1000 Mbit/s Ethernet ports for network connectivity.
Onboard RAID controller and system monitoring for watchdog, temperature, and fan.
Convenient front-side USB port for easy access.
Pre-installed with Windows XP Professional SP3 Multi-Language User Interface (MUI).

Applications

Process visualization and SCADA systems.
Machine-level data acquisition and control.
Manufacturing Execution Systems (MES) terminals.
Industrial control rooms and operator stations.
Automated test and measurement equipment.

Technical Specifications

Specification	Value
Brand	Siemens
Product Series	SIMATIC IPC677C
Product Type	Panel PC
Processor	Intel Core i3-330E (2C/4T, 2.13 GHz, HT, VT, 3 MB cache)
Memory	2 GB DDR3 1066 DIMM
Storage	RAID1 (mirror disks), 2x 320 GB SATA (2.5")
Display	19" Touch, 1280 x 1024 resolution
Ethernet Ports	2x 10/100/1000 Mbit/s
USB Ports	4x USB 2.0, plus front-side USB interface
Serial Port	1x COM1
Expansion Slots	2x PCI (free)
Optical Drive	DVD+/-R+/-RW
Power Supply	110/230 V AC with NAMUR
Operating System	Windows XP Professional SP3 MUI (de, en, fr, es, it)
System Monitoring	Watchdog, temperature, and fan monitoring
Product Lifecycle Status	Phase-Out
Country of Origin	USA (based on included power cable)
Manufacturer	Siemens
Package Dimensions (Source)	22.00 x 46.70 x 22.50 cm
Shipping Weight	17.35 kg

Installation Guidelines

CRITICAL WARNING: Disconnect all power sources and follow Lockout/Tagout (LOTO) procedures before installation, service, or removal. This equipment is intended for use in restricted-access locations by qualified personnel only.

1 Verify the panel cutout dimensions are correct before mounting. Ensure adequate clearance for ventilation around the rear of the unit as specified by the manufacturer to prevent overheating.
2 Insert the Panel PC into the prepared cutout from the front of the enclosure. Secure it evenly from the rear using all provided mounting clamps. Do not overtighten; apply torque evenly to create a uniform seal.
3 Connect the protective earth (PE) terminal to the main enclosure ground using a low-impedance conductor. A reliable ground connection is critical for safety and noise immunity.
4 Connect power, network, and peripheral cables. Route cables to avoid sharp bends and interference from high-voltage power lines. Ensure all connectors are fully seated and secured.
5 After all connections are verified, restore power to the unit and proceed with software configuration and system checks.

FAQ

What processor is installed in the 6AV7894-0FD12-1AB0?

This Panel PC is equipped with an Intel Core i3-330E processor, which has 2 cores, 4 threads, a clock speed of 2.13 GHz, and a 3 MB cache.

What is the storage configuration of this SIMATIC Panel PC?

The unit is configured with a RAID1 (mirroring) setup using two 320 GB SATA 2.5-inch hard drives for data redundancy.

What operating system is pre-installed on this device?

The 6AV7894-0FD12-1AB0 comes with Windows XP Professional Service Pack 3, including a Multi-Language User Interface (MUI) for German, English, French, Spanish, and Italian.

What communication ports are available?

It includes two 10/100/1000 Mbit/s Ethernet ports, four rear USB 2.0 ports, one front-side USB port, and one serial (COM1) port.

Is this model still in active production?

According to the product lifecycle information, this model is in the 'Phase-Out' stage, meaning it is no longer in active production but may be available as a spare part.
