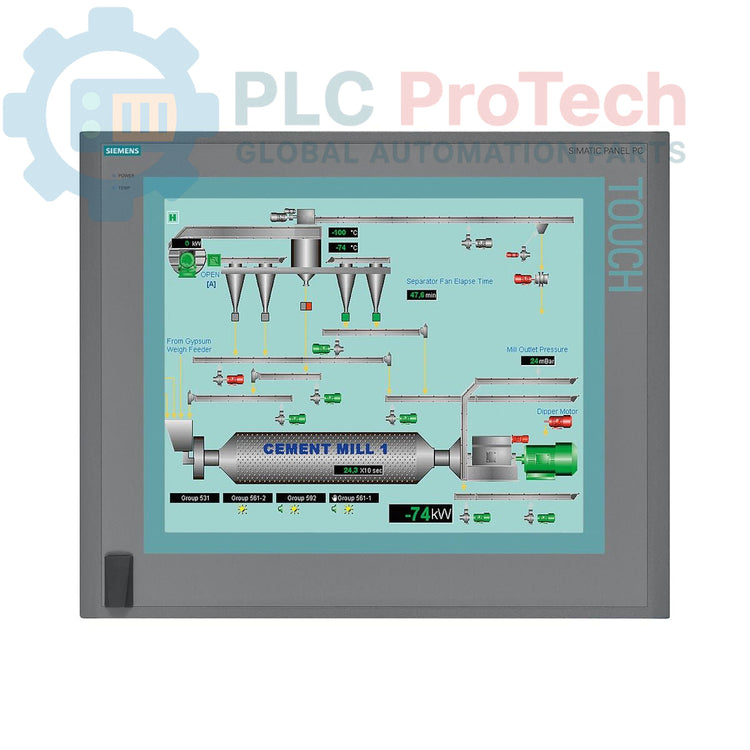

Siemens 6AV7894-0FE12-1AB0 SIMATIC IPC677C Panel PC

Description

The Siemens 6AV7894-0FE12-1AB0 SIMATIC IPC677C is a Panel PC designed for industrial human-machine interface (HMI) and control applications. This unit features a 19-inch touch display with a resolution of 1280x1024, an Intel Core I3-330E processor, and a RAID controller onboard for data redundancy. It provides comprehensive connectivity including 2x 10/100/1000 Mbit/s Ethernet ports, 4x USB V2.0 ports (one front-side), and 1x serial (COM1) interface. Industrial communication is supported via PROFIBUS/MPI, compatible with CP 5611-A2. The system includes 2 GB DDR3 1066 DIMM RAM, 2 MB buffered SRAM, and RAID1 configured 2x 320 GB SATA (2.5") mirror disks. An integrated DVD+-R+-RW drive and 2x free PCI slots offer further expandability. It operates on a 110/230 V AC power supply with NAMUR support and comes with Windows XP Professional SP3 MUI pre-installed.

Features

• 19-inch Touch Display (1280x1024 resolution)
• Integrated RAID1 controller with 2x 320 GB SATA (2.5") mirror disks
• Intel Core I3-330E Processor (2C/4T, 2.13 GHz)
• Multi-protocol Ethernet (2x 10/100/1000 Mbit/s)
• PROFIBUS/MPI interface (CP 5611-A2 compatible)
• 2 GB DDR3 1066 DIMM RAM and 2 MB buffered SRAM
• Watchdog, temperature, and fan monitoring
• 2x free PCI expansion slots
• Pre-installed Windows XP Professional SP3 MUI (Multi-User Interface)

Applications

• Industrial HMI and visualization systems
• Process control and monitoring
• Data acquisition and logging
• Manufacturing automation
• Machine operation and diagnostics

Technical Specifications

Installation Guidelines

1. De-energization: Ensure all power to the installation area is disconnected and locked out before commencing any work on the Panel PC.
2. Mounting: Securely mount the Panel PC into a suitable panel cutout, ensuring adequate ventilation clearances as specified by the manufacturer for optimal heat dissipation.
3. Power Connection: Connect the 110/230 V AC power supply cable to the unit, observing correct polarity and grounding. Utilize the provided USA power supply cable.
4. Grounding: Establish a proper protective earth (PE) connection to the Panel PC chassis to ensure electrical safety and minimize electromagnetic interference.
5. Interface Connections: Connect Ethernet, USB, serial, and PROFIBUS/MPI cables as required for the application. Ensure proper shielding for communication cables in noisy industrial environments.
6. Front-Side USB: Utilize the convenient front-side USB port for temporary connections or maintenance tasks, such as data transfer or peripheral attachment.
7. Environmental Considerations: Ensure the operating environment adheres to the specified temperature and humidity ranges to prevent damage and ensure reliable operation.
8. Cable Routing: Route all cables to prevent strain, sharp bends, and interference with other equipment or moving parts. Separate power and signal cables where possible to reduce noise.
