Siemens 6ES5955-3NC41 SIMATIC S5 Power Supply Module

Description

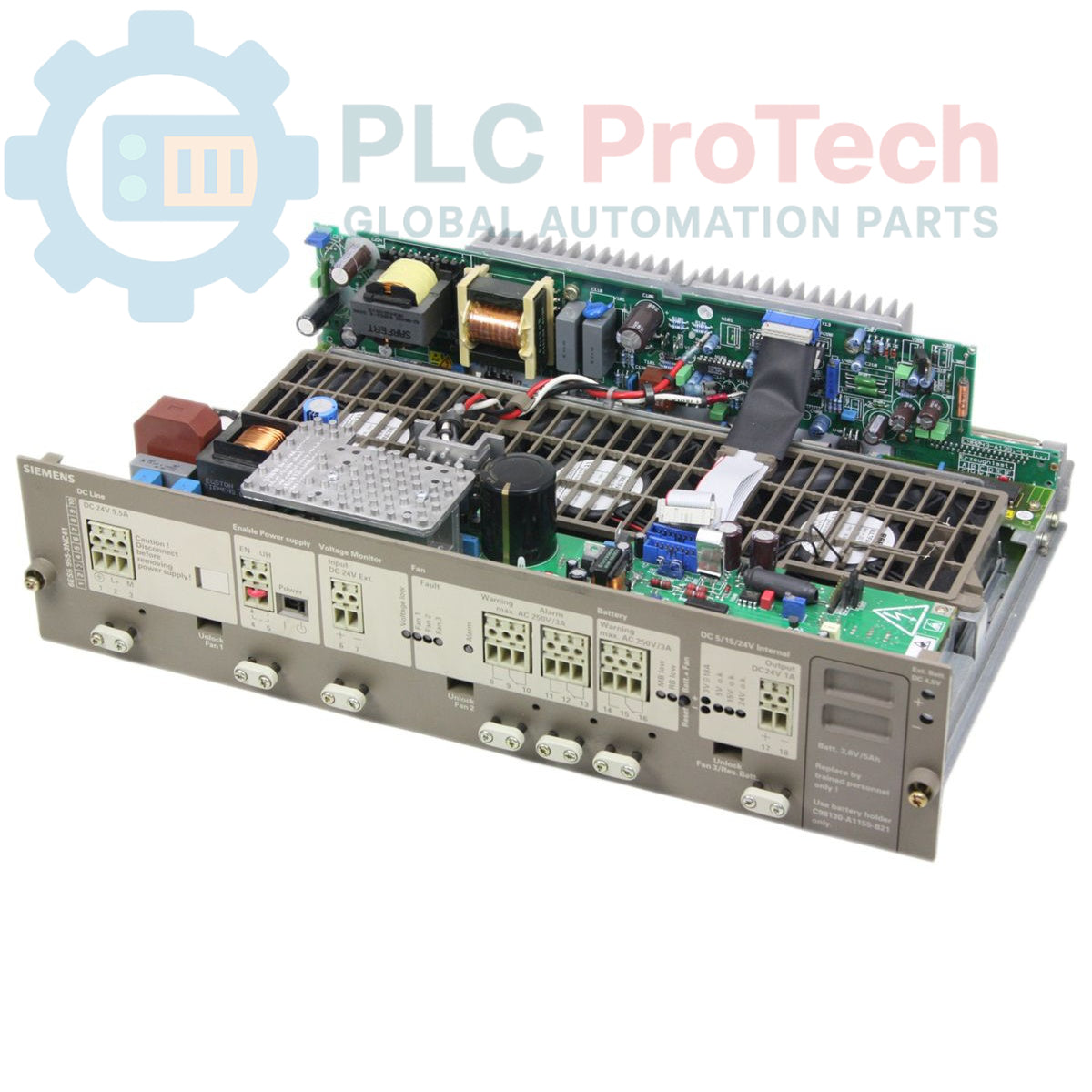

The Siemens 6ES5955-3NC41 is a power supply module for the SIMATIC S5 automation platform. It is specifically designed for compatibility with S5-135U, S5-155U, EU 183U, and EU 185U central controller configurations. This unit converts a 24V DC input to a regulated 5V DC output with a current capacity of 18A, providing stable and reliable power for critical system components in demanding industrial environments.

Features

• Provides a regulated 5V DC, 18A output
• Operates from a 24V DC input supply
• Designed for SIMATIC S5-135U/155U and EU 183/185U systems
• Robust construction for long-term operational durability
• Direct replacement for integration into existing S5 racks

Applications

• Legacy system maintenance in manufacturing plants
• Process control in chemical and water treatment facilities
• Automated material handling and conveyor systems
• Power generation and distribution control systems

Technical Specifications

Installation Guidelines

1. 1 De-energize System: Isolate and disconnect all power sources from the SIMATIC S5 rack. Verify zero energy state with a calibrated multimeter before proceeding.
2. 2 Inspect Module: Before installation, visually inspect the 6ES5955-3NC41 module for any signs of physical damage that may have occurred during shipping or handling.
3. 3 Install Module: Align the module with the card guides in the designated power supply slot of the S5 chassis. Slide the module firmly into place until the connectors are fully seated on the backplane.
4. 4 Secure Module: Engage and tighten the module's retaining screws to secure it firmly within the chassis. This ensures proper electrical connection and resistance to vibration.
5. 5 Connect Input Power: Connect the 24V DC input power wiring to the appropriate terminals on the module's front panel. Ensure correct polarity is observed. Verify that all connections are secure.
6. 6 System Re-energization: After removing all tools and personnel from the enclosure, close the cabinet doors. Remove the LOTO device and re-apply power to the system. Observe the module's status indicators to confirm correct operation.
