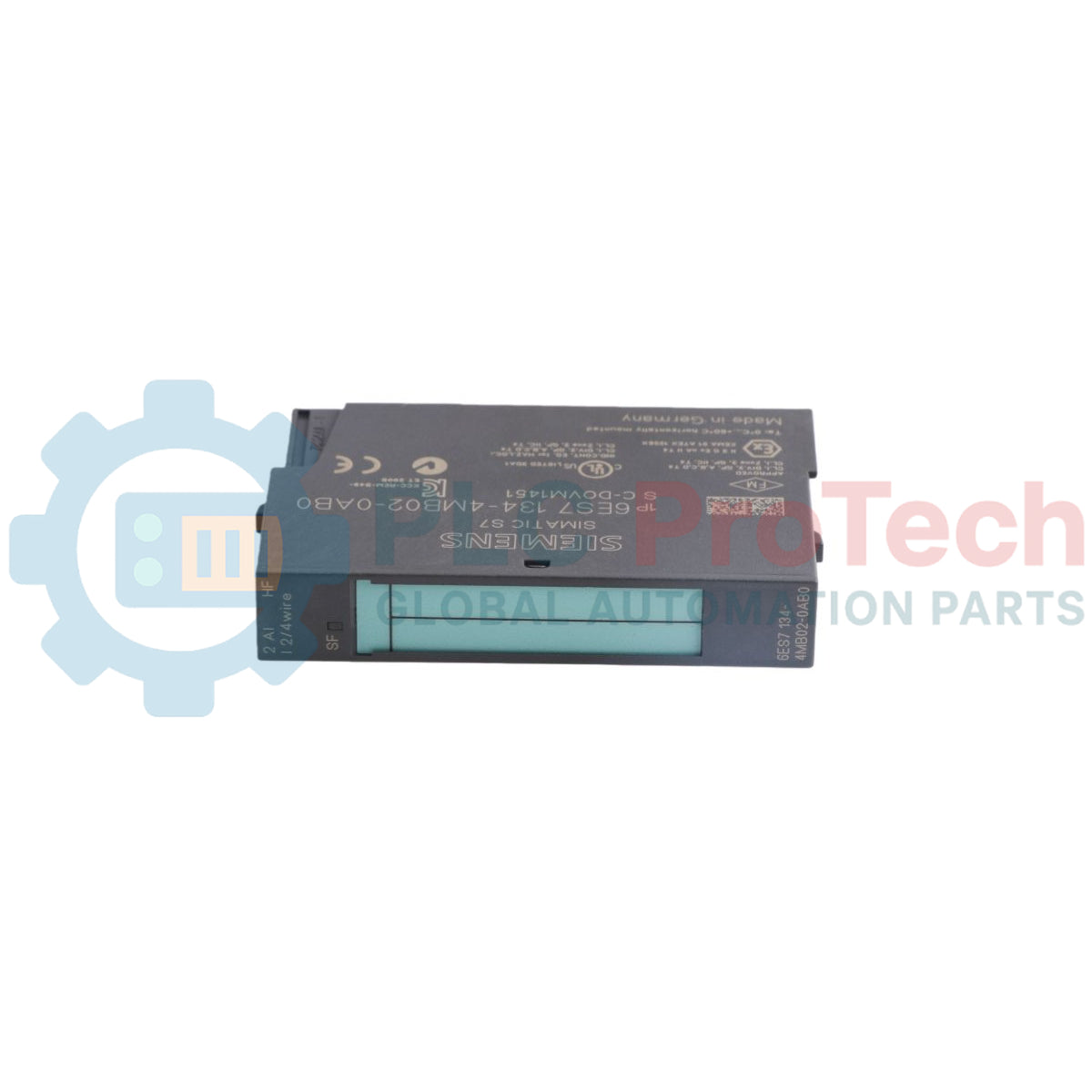

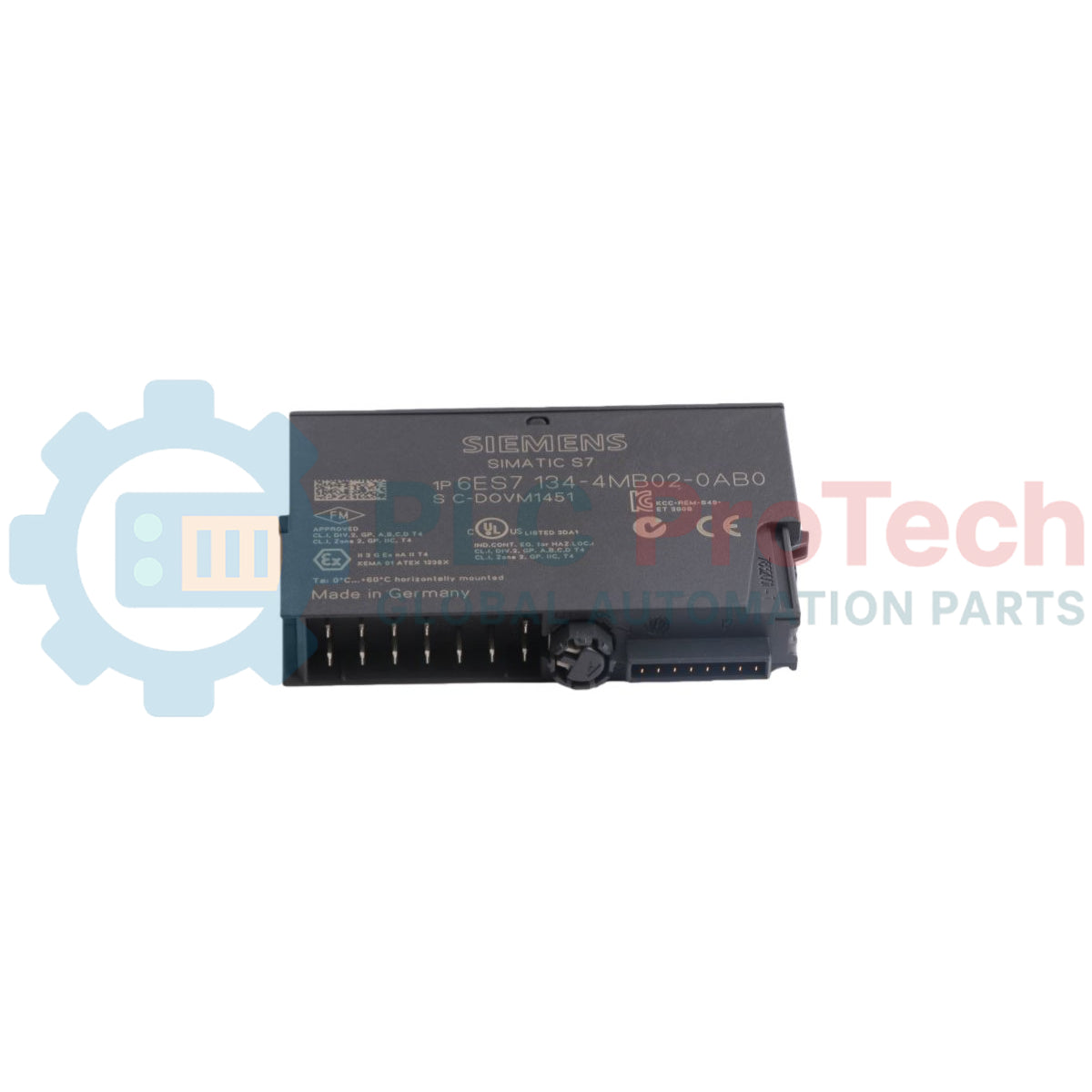

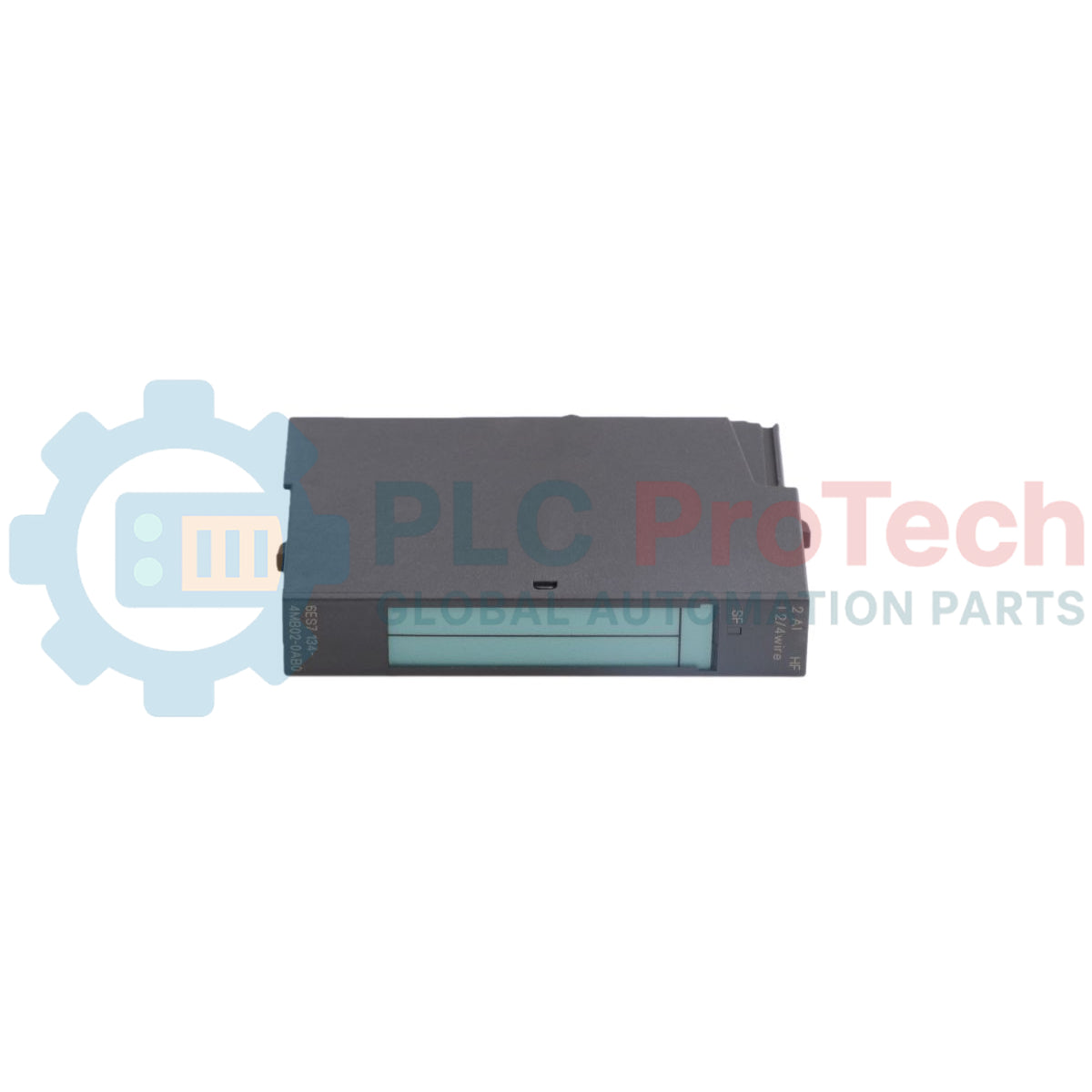

Siemens 6ES7134-4MB02-0AB0 SIMATIC ET 200S Analog Input Module

Description

The Siemens 6ES7134-4MB02-0AB0 is a high-performance analog input module designed for the SIMATIC ET 200S distributed I/O system. This compact 15mm width module maximizes control cabinet space efficiency and provides two precisely isolated current input channels. It supports both ±20 mA and 4-20 mA signal ranges with an exceptional 15-bit plus sign resolution, ensuring accurate measurement for critical process variables. The module delivers reliable operational performance with a minimal ±0.1% operational limit, making it suitable for demanding industrial automation applications where precision is paramount.

The Siemens ET 200S 6ES7134-4MB02-0AB0 features complete electrical isolation from the load voltage L+ and maintains a high permitted common-mode voltage of 100 VAC between channels, ensuring reliable operation in electrically noisy environments. It supports both two-wire and four-wire measuring transducers through flexible terminal configurations, accommodating diverse installation requirements with dedicated connections for Mn+/Mn- signals and separate L+/L- terminals for transducer power supply in four-wire configurations.

A distinctive feature of this module is its support for isochronous operation, achieving a fast minimum conversion time of 0.5 ms per module while synchronizing with a 0.7 ms minimum DP cycle. This high-speed capability, combined with I&M (Identification and Maintenance) functionality and comprehensive diagnostics via the integrated SF LED, positions the Siemens 6ES7134-4MB02-0AB0 as a premium solution for time-critical automation applications requiring precise synchronization and reliable fault indication. It offers an extended operating temperature range from 0 to 50 degC when vertically installed.

Features

• Two isolated current input channels
• Supports ±20 mA and 4-20 mA signal ranges
• 15-bit plus sign resolution for high accuracy
• Isochronous operation support with 0.5 ms conversion time
• Integrated I&M functionality and SF LED diagnostics
• Complete electrical isolation from load voltage L+
• High permitted common-mode voltage of 100 VAC between channels
• Compatible with two-wire and four-wire measuring transducers
• Compact 15mm width design

Applications

• Demanding industrial automation systems
• Time-critical process control and monitoring
• Sophisticated industrial measurement and control systems
• Distributed automation architectures utilizing SIMATIC ET 200S
• Precision data acquisition in electrically noisy environments

Technical Specifications

Installation Guidelines

1. De-energize System: Ensure all power to the SIMATIC ET 200S system and associated field devices is disconnected before installation or removal of the module.
2. Mounting: Insert the 6ES7134-4MB02-0AB0 module into the designated slot on the appropriate terminal module within the ET 200S distributed I/O system. Ensure it is securely latched. The compact 15mm width allows for efficient cabinet space utilization.
3. Wiring: Connect the two-wire or four-wire measuring transducers to the module's terminals. For four-wire configurations, utilize the dedicated Mn+/Mn- signals and separate L+/L- terminals for transducer power supply. Ensure correct polarity for all connections.
4. Grounding and Shielding: Properly ground the module and shield analog signal cables to minimize electrical noise interference, especially given the module's high common-mode voltage capability.
5. Cable Routing: Route signal cables away from power cables and other sources of electromagnetic interference to maintain signal integrity.
6. Environmental Considerations: For optimal performance and to maintain the specified operating temperature range of 0 to 50 degC, ensure the module is installed vertically within the control cabinet, allowing for adequate ventilation.
7. Power On: After verifying all connections, re-apply power to the system. Observe the SF LED for diagnostics and ensure proper module initialization.
