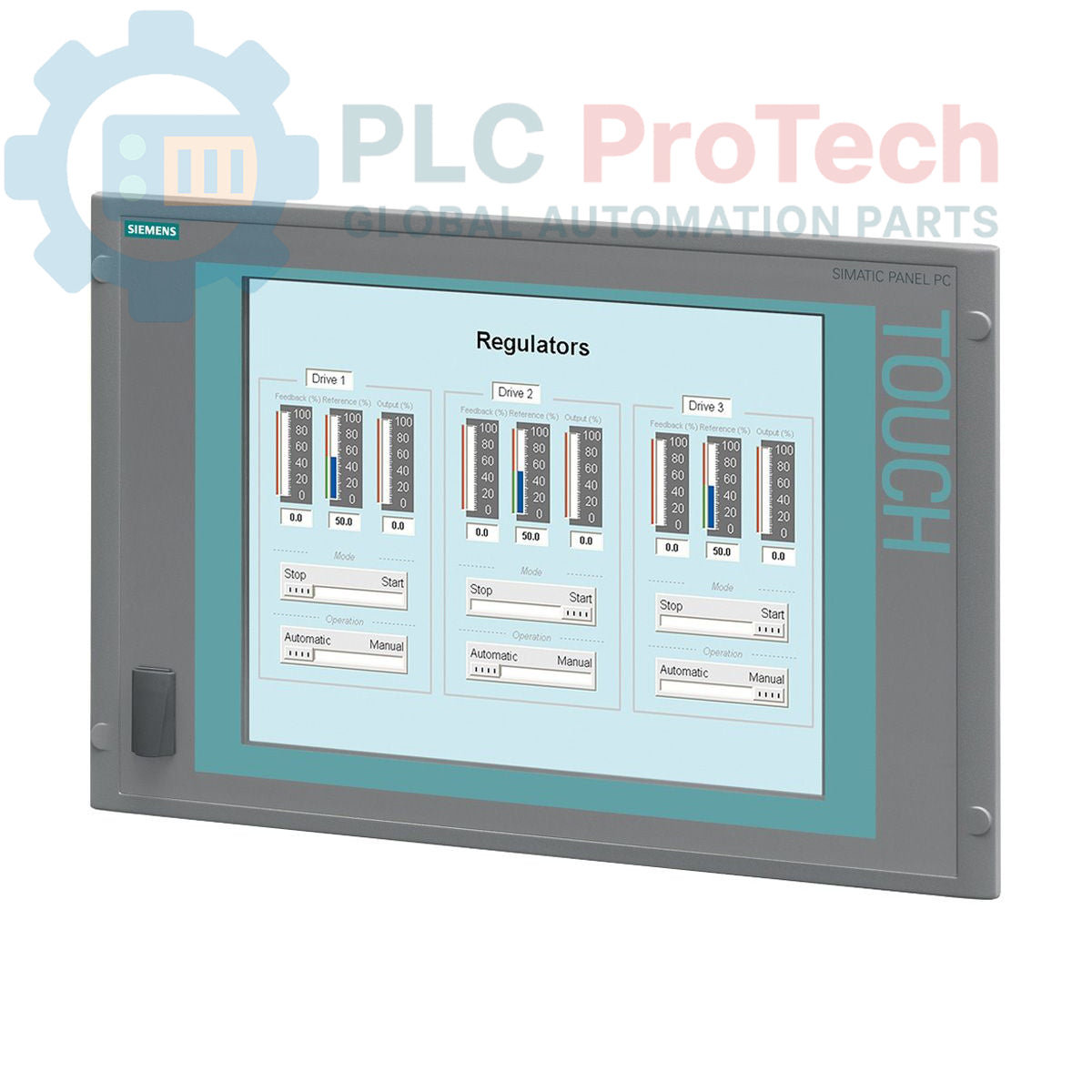

Siemens 6ES7676-3BA00-0CA0 SIMATIC Panel PC 477B

SKU 6ES7676-3BA00-0CA0

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6ES7676-3BA00-0CA0
Country of origin:Germany
Product Type: Panel PC
Barcode: 85371091
Payment: T/T, Western Union
Weight: 8g
Dimensions: 66.50 x 52.00 x 22.00 cm
Shipping port: Xiamen
Warranty: 12 months

Description

The Siemens 6ES7676-3BA00-0CA0 is a SIMATIC Panel PC 477B, an industrial panel PC designed for human-machine interface (HMI) and control applications. This model features a 15-inch touch display with a 1024x768 standard front resolution and a USB interface. It is equipped with an Intel Celeron M 1.0 GHz processor, 1 GB of DDR2 RAM, and comes with Windows XP Embedded preinstalled. Connectivity options include PROFIBUS DP 12, two 1 Gbit/s Ethernet ports, four USB 2.0 ports (500mA), and one RS232 serial interface. The unit operates on a DC 24V power supply and includes two Compact-Flash slots, with one 2 GB Compact-Flash card provided.

Features

15-inch touch display with 1024x768 resolution
Intel Celeron M 1.0 GHz processor
1 GB DDR2 RAM
Integrated PROFIBUS DP 12 interface
Two 1 Gbit/s Ethernet ports
Four USB 2.0 ports (500mA each)
One RS232 serial interface
DC 24V power supply
Two Compact-Flash slots, including one 2 GB Compact-Flash card
Preinstalled with Windows XP Embedded

Applications

The SIMATIC Panel PC 477B is suitable for a wide range of industrial applications requiring robust HMI and computing capabilities. Typical uses include:

Machine operation and visualization
Process control and monitoring
Data acquisition and logging
Factory automation systems
Distributed control systems (DCS) interfaces

Technical Specifications

Manufacturer	Siemens
Range	Simatic Panel PC
Subrange	PC477B
Product Type	Panel PC
Display	15-inch Touch Display, 1024x768 resolution
Processor	Intel Celeron M 1.0 GHz
RAM	1 GB DDR2
Communication Interfaces	PROFIBUS DP 12, 2x Ethernet 1 Gbit/s, 4x USB 2.0 (500mA), 1x RS232
Storage	2 CF-slots (1x 2 GB Compact-Flash included)
Power Supply	DC 24V
Preinstalled Software	Windows XP Embedded
Product Phase	Obsolete
Package Dimensions (Calculated)	66.50 x 52.00 x 22.00 cm
Shipping Weight	8.00 kg
Commodity Code	85371091
Export Control Regulations (ECCN)	5D002

Installation Guidelines

De-energization: Ensure all power to the installation area is disconnected and locked out before beginning any work.
Mounting: Mount the Panel PC securely into a panel cutout, ensuring proper sealing to maintain its industrial protection rating.
Power Connection: Connect the DC 24V power supply to the designated terminals, observing correct polarity.
Grounding: Establish a reliable protective earth (PE) connection to the Panel PC chassis to ensure safety and minimize electromagnetic interference.
Interface Connections: Connect Ethernet cables to the Gbit/s ports, PROFIBUS DP cables to the DP interface, and USB/RS232 devices as required. Ensure all cables are properly routed and secured to prevent strain and damage.
Environmental Considerations: Ensure the installation environment meets the specified temperature and humidity ranges to guarantee optimal performance and longevity.
Power-Up: After all connections are verified, restore power to the system and observe for proper boot-up and operation.

FAQ

What is the display size and resolution of this Panel PC?

The Panel PC features a 15-inch touch display with a resolution of 1024x768 pixels.

What operating system is preinstalled on the 6ES7676-3BA00-0CA0?

The unit comes with Windows XP Embedded preinstalled.

What are the main communication interfaces available?

It includes PROFIBUS DP 12, two 1 Gbit/s Ethernet ports, four USB 2.0 ports, and one RS232 serial interface.

What type of processor does the Panel PC use?

It is equipped with an Intel Celeron M 1.0 GHz processor.

Is this product still actively manufactured by Siemens?

No, the product phase for this model is listed as Obsolete.
