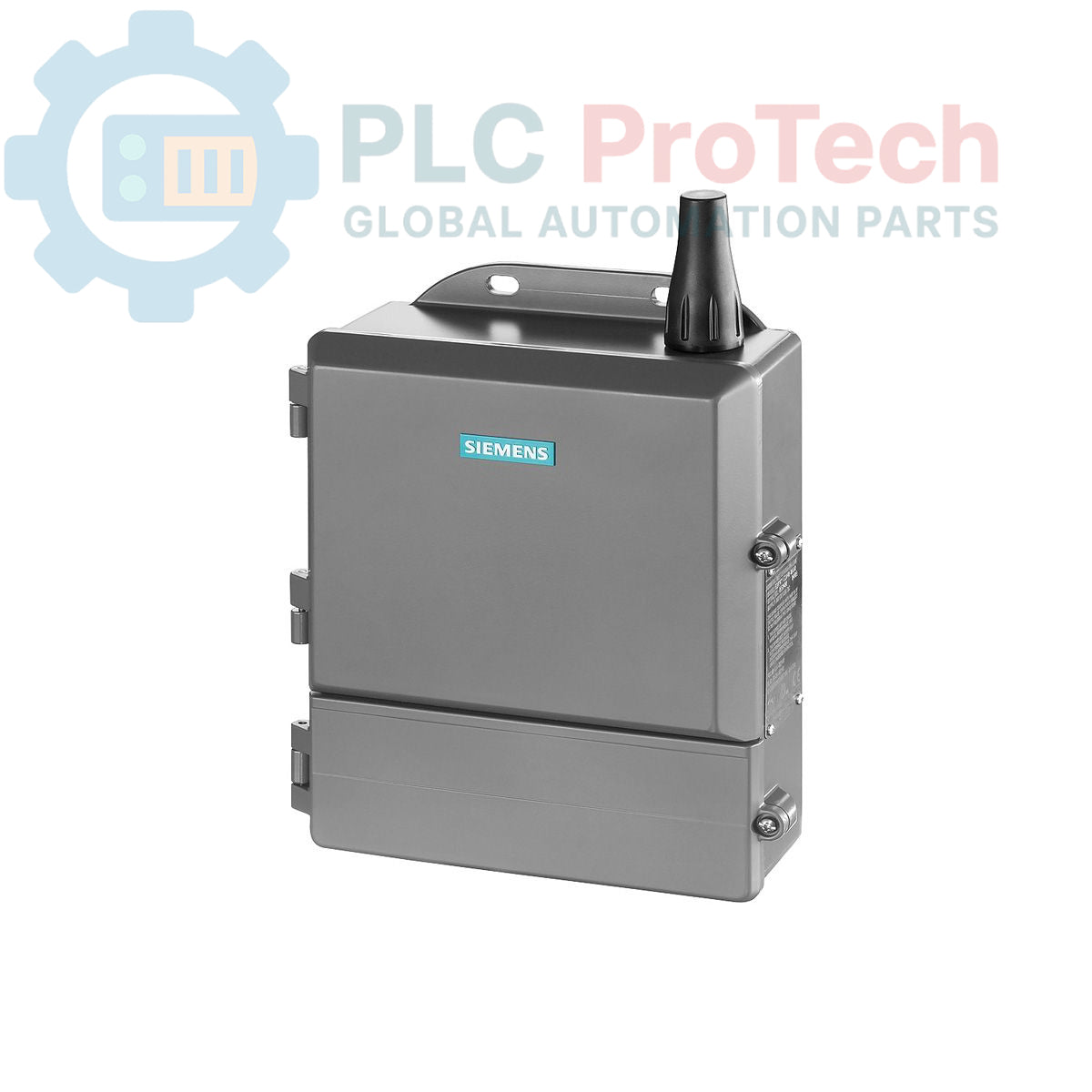

Siemens 6GK1411-6CA40-0AA0 IE/WSN-PA Link Module

Description

The Siemens 6GK1411-6CA40-0AA0 is an IE/WSN-PA Link module with an integrated antenna, designed for seamless network transition between WirelessHART and Ethernet environments. This module supports Ethernet communication at 10/100 Mbit/s, utilizing protocols such as TCP/IP and Modbus TCP. For wireless connectivity, it operates with WirelessHART at 2.4 GHz, and also includes an RS 485 interface with Modbus R support. It holds national approvals for use in USA, Canada, and Europe, and features EX-certification for Zone 2 hazardous areas, making it suitable for various industrial applications requiring robust communication links.

Features

• Integrated antenna for WirelessHART communication
• Network transition between WirelessHART and Ethernet
• Ethernet interface: 10/100 Mbit/s
• Supports TCP/IP and Modbus TCP protocols
• WirelessHART communication at 2.4 GHz
• RS 485 interface with Modbus R support
• National approvals for USA, Canada, and Europe
• EX-certification for Zone 2 hazardous environments

Applications

The Siemens 6GK1411-6CA40-0AA0 module is typically deployed in industrial automation settings where there is a need to integrate wireless field devices into existing wired Ethernet networks. Common applications include:

• Process automation systems utilizing WirelessHART sensors and actuators.
• Remote monitoring and control of industrial equipment in hazardous areas (Zone 2).
• Bridging communication between legacy RS 485 Modbus devices and modern Ethernet-based control systems.
• Enhancing network flexibility and reducing wiring complexity in large-scale industrial plants.

Technical Specifications

Installation Guidelines

Proper installation ensures reliable operation and adherence to safety standards, especially in hazardous environments. Consider the following:

1. De-energization: Always ensure that all power to the installation area is disconnected and locked out before beginning any work.
2. Mounting: Mount the module in a stable, vibration-free location, typically within an industrial enclosure. Ensure adequate ventilation to prevent overheating.
3. Grounding: Establish a proper protective earth (PE) connection to the module's designated grounding terminal to ensure electrical safety and minimize electromagnetic interference.
4. Cable Routing: Route Ethernet, RS 485, and power cables separately from high-voltage or high-current lines to prevent signal interference. Use shielded cables where appropriate for industrial environments.
5. Antenna Placement: As the module has an integrated antenna, ensure it is positioned for optimal wireless signal reception and transmission, free from obstructions or metallic shielding that could degrade performance.
6. Hazardous Area Compliance: When installing in a Zone 2 hazardous area, strictly adhere to all local and national regulations, as well as the specific requirements outlined in the EX-certification documentation for the module.
7. Power Connection: Connect the power supply according to the specified voltage and polarity. Verify connections before re-energizing the system.

Compliance and Certifications

• EX-certification: Zone 2
• National Approvals: USA, Canada, Europe
