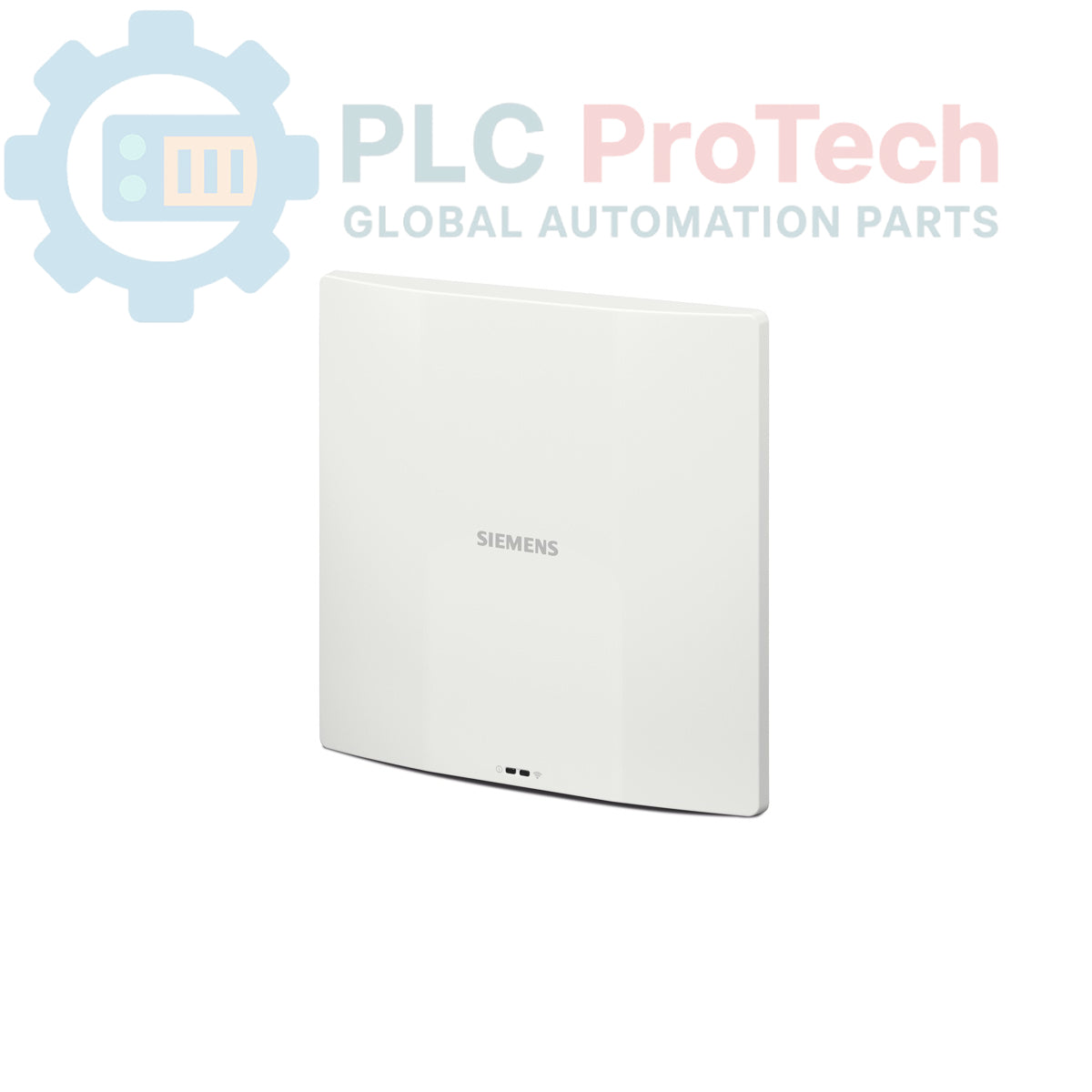

Siemens SCALANCE W1750D-2IA 6GK5750-2HX01-1AA0 Communication Module

Description

The 6GK5750-2HX01-1AA0 is a SCALANCE W1750D-2IA WLAN access point featuring two radios and internal antennas for wireless industrial communication. This device supports IEEE 802.11ac Wave 2 access point standards with MU-MIMO technology, delivering gross data rates of up to 40 Mbps in the 2.4 GHz band and up to 1.7 Gbps in the 5 GHz band. Equipped with dual RJ45 ports supporting Power over Ethernet (PoE) and a USB interface, the 6GK5750-2HX01-1AA0 communication module enables controller-free operation and high-speed wireless connectivity for demanding automation environments.

Features

• Dual-radio WLAN access point with internal antennas
• IEEE 802.11ac Wave 2 AP standard support with MU-MIMO technology
• Gross data rates up to 40 Mbps (2.4 GHz) and up to 1.7 Gbps (5 GHz)
• Dual RJ45 ports with Power over Ethernet (PoE) support
• Onboard USB interface for expanded connectivity options
• Controller-free operation mode capability

Applications

• Industrial wireless local area networks (WLAN)
• Automated guided vehicle (AGV) communication systems
• Mobile operator panel connectivity
• Plant-wide wireless data acquisition and control

Technical Specifications

Installation Guidelines

• Ensure proper mounting positioning to optimize internal antenna signal coverage and propagation.
• Verify compliance with local national radio approvals and certification regulations prior to deployment.
• Connect power via Power over Ethernet (PoE) using properly shielded network cables to mitigate electromagnetic interference.
• Maintain ambient operating temperatures within the specified range of 0 degC to +50 degC.
