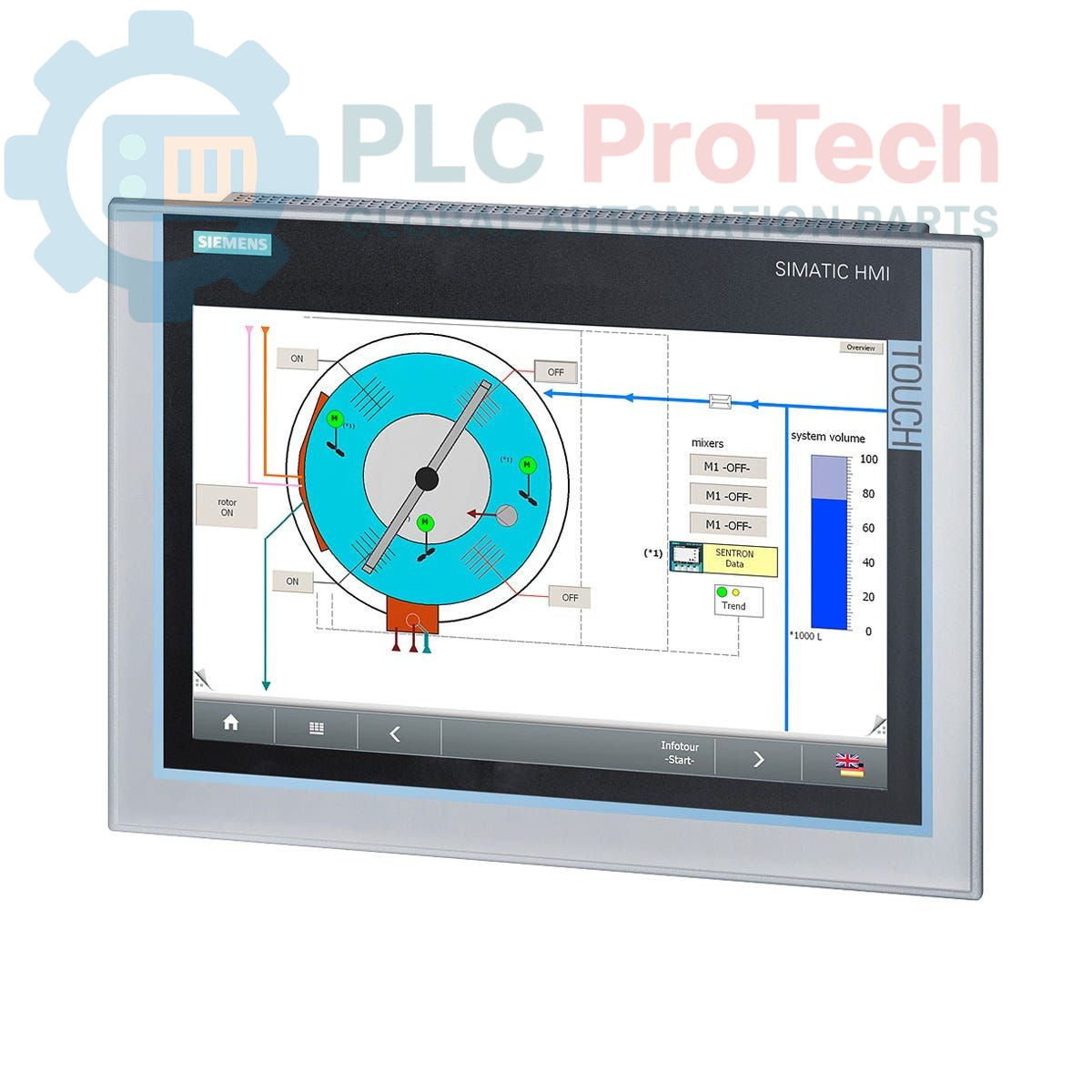

Siemens SIMATIC IPC 477D 6AV7240-3AC04-0EA0 Panel PC

Only 6 item(s) left in stock

Manufacturer: Siemens
Product No.: 6AV7240-3AC04-0EA0
Country of origin:Germany
Product Type: Panel PC
Barcode: 85371098
Payment: T/T, Western Union
Weight: 3200g
Dimensions: 45 x 35 x 20 cm
Shipping port: Xiamen
Warranty: 12 months

Description

This is a Siemens SIMATIC IPC 477D, model 6AV7240-3AC04-0EA0, an industrial panel PC designed for machine-level control and visualization tasks. It features a 12-inch touch display driven by an Intel Core i3-3217UE processor with 4 GB of RAM and a 16 GB CFAST card for storage. Connectivity is provided through dual Gigabit Ethernet ports (IE/PN), four rear-mounted USB ports, and a single RS-232 serial port. This unit operates on a 24 V DC industrial power supply and is delivered without an operating system or SIMATIC software pre-installed.

Features

12-inch resistive touch display
Intel Core i3-3217UE processor
4 GB installed RAM
16 GB CFAST storage card
Dual Gigabit Ethernet ports for IE/PN connectivity
Four rear-mounted USB interfaces
One RS-232 serial communication port
Operates on a 24 V DC power supply

Applications

Human-Machine Interface (HMI) for process control
Machine-level data acquisition and logging
SCADA client stations in manufacturing environments
Production line monitoring and control panels

Technical Specifications

Specification	Value
General Information
Manufacturer	Siemens
Product Series	SIMATIC IPC 477D
Part Number	6AV7240-3AC04-0EA0
Product Type	Panel PC
Performance
Processor	Intel Core i3-3217UE
Memory (RAM)	4 GB
Display
Screen Size	12-inch
Interface	Touchscreen
Storage
Type	CFAST Card
Capacity	16 GB
Interfaces
Ethernet	2 x Gigabit Ethernet (10/100/1000 Mbps), IE/PN compatible
USB	4 x USB (Rear)
Serial	1 x RS-232
Electrical
Input Voltage	24 V DC
Logistics & Compliance
Shipping Weight	3.20 kg
Commodity Code	85371098
Product Lifecycle Status	Phase-Out
Country of Origin	Germany (estimate)
Package Dimensions (Calculated)	45 x 35 x 20 cm

Installation Guidelines

CRITICAL WARNING

Installation must be performed by qualified personnel only. Disconnect all power sources before installation to prevent electric shock and equipment damage. This device is sensitive to electrostatic discharge (ESD); use appropriate grounding measures.

1 De-energize and lock out the main power supply to the control cabinet or enclosure before beginning any work.
2 Prepare the panel cutout according to the device's mechanical specifications. Ensure all surfaces are clean, dry, and free of burrs or debris.
3 Insert the Panel PC into the cutout from the front of the enclosure, ensuring it is seated flush against the panel surface.
4 Secure the unit from the rear using the provided mounting clamps. Tighten the clamps evenly and sequentially to the manufacturer's recommended torque to ensure a proper environmental seal.
5 Connect a stable, dedicated 24 V DC power supply to the designated power input terminals. Verify correct polarity (+/-) before applying power.
6 Establish a low-impedance protective earth (PE) connection to the chassis ground terminal for safety and noise immunity.
7 Connect Ethernet, USB, and serial communication cables as required. Route signal cables separately from high-voltage power lines to minimize electromagnetic interference.
