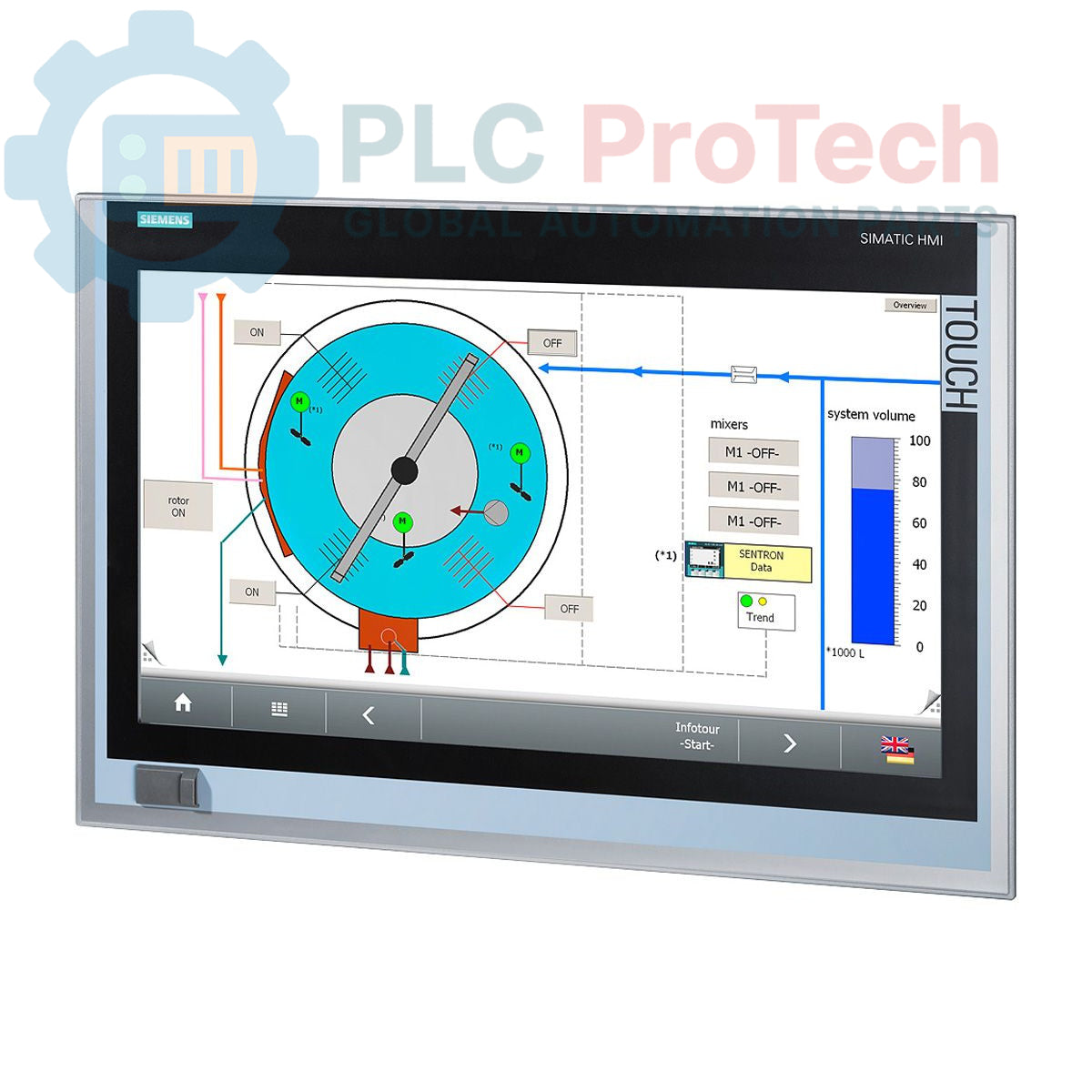

Siemens SIMATIC IPC 477D 6AV7240-6EC05-0KA0 Panel PC

SKU 6AV7240-6EC05-0KA0

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6AV7240-6EC05-0KA0
Country of origin:Germany
Product Type: Industrial Panel PC
Barcode: 85371098
Payment: T/T, Western Union
Weight: 7g
Dimensions: 41.0 x 56.5 x 25.0 cm
Shipping port: Xiamen
Warranty: 12 months

Description

The Siemens SIMATIC IPC 477D, model 6AV7240-6EC05-0KA0, is an industrial panel PC designed for demanding HMI and control applications. This unit features a 22-inch resistive touch display, an Intel Core i7-3517UE processor, and is equipped with 4 GB of RAM and a 320 GB SATA HDD. It operates on a 24 V DC industrial power supply and includes a pre-installed English 64-bit version of Windows Embedded Standard 7 SP1. Connectivity is provided through multiple USB ports, dual Gigabit Ethernet interfaces for PROFINET/Industrial Ethernet, and an RS-232 serial port.

Features

22-inch resistive touch display for operator interaction.
Powered by an Intel Core i7-3517UE processor.
Equipped with 4 GB of system memory (RAM).
Includes a 320 GB SATA Hard Disk Drive for storage.
Pre-installed with Windows Embedded Standard 7 SP1 (English, 64-bit).
Dual Gigabit Ethernet ports for Industrial Ethernet (IE) and PROFINET (PN) networks.
Five USB ports (4 rear, 1 front) and one RS-232 serial port.
Designed for a 24 V DC industrial power supply.

Applications

Human-Machine Interface (HMI) for process visualization and control.
Data acquisition, logging, and analysis at the machine level.
Supervisory control in manufacturing cells and production lines.
Integration into OEM machinery as a primary control interface.

Technical Specifications

Specification	Value
General
Manufacturer	Siemens
Product Series	SIMATIC IPC 477D
Part Number	6AV7240-6EC05-0KA0
Product Type	Industrial Panel PC
Product Lifecycle Status	Phase-Out
Processing & Memory
Processor (CPU)	Intel Core i7-3517UE
Memory (RAM)	4 GB
Storage
Storage Type	SATA Hard Disk Drive (HDD)
Capacity	320 GB
Display
Display Size	22 inch
Display Type	Touch Display
Software
Operating System	Windows Embedded Standard 7 SP1
OS Language	English
OS Architecture	64-bit
Bundled Software	Without SIMATIC Software
Interfaces
Ethernet	2x Gigabit Ethernet (IE/PN), 1x Ethernet (10/100/1000)
USB	4x Rear, 1x Front
Serial	1x RS-232
Expansion Slots	Without PCIe
Power Supply
Input Voltage	24 V DC
Logistics & Compliance
Shipping Dimensions	41.0 x 56.5 x 25.0 cm
Shipping Weight	7.00 kg
Commodity Code	85371098
ECCN	N
Country of Origin	Germany (Estimate)
Package Dimensions (Calculated)	41.0 x 56.5 x 25.0 cm

Installation Guidelines

CRITICAL WARNING: Hazardous voltages may be present. Installation must be performed by qualified personnel only. Failure to de-energize equipment and follow Lockout/Tagout (LOTO) procedures before installation can result in severe injury or death.

1 Ensure the control cabinet or panel is completely de-energized and locked out before beginning work. Verify the absence of voltage.
2 Prepare the panel cutout according to the manufacturer's dimensional drawings. Ensure the mounting surface is clean, flat, and free of debris.
3 Insert the Panel PC into the cutout from the front. Secure it from the rear using all provided mounting clamps, tightening them evenly to the specified torque to ensure a proper seal.
4 Connect a low-impedance protective earth (PE) conductor to the designated grounding terminal on the IPC chassis. This is critical for safety and noise immunity.
5 Connect the 24 V DC power supply wiring to the IPC's power input connector, ensuring correct polarity. Use appropriately sized conductors from a regulated industrial power source.
6 Connect all required network, USB, and serial cables. Ensure proper cable strain relief and routing to prevent interference and physical damage.

FAQ

What processor is installed in the 6AV7240-6EC05-0KA0?

This SIMATIC IPC 477D is equipped with an Intel Core i7-3517UE processor.

What operating system comes pre-installed on this panel PC?

The unit comes with Windows Embedded Standard 7 Service Pack 1, in English, 64-bit architecture.

What is the required input power for this device?

This industrial PC requires a 24 V DC industrial power supply for operation.

How many network ports does this model have?

It features a total of three Ethernet ports: two Gigabit Ethernet ports designated for Industrial Ethernet (IE) / PROFINET (PN) and one standard 10/100/1000 Mbps Ethernet port.

Is this a current-generation product from Siemens?

No, the product lifecycle status for this model is designated as 'Phase-Out', indicating it is an older generation product.
