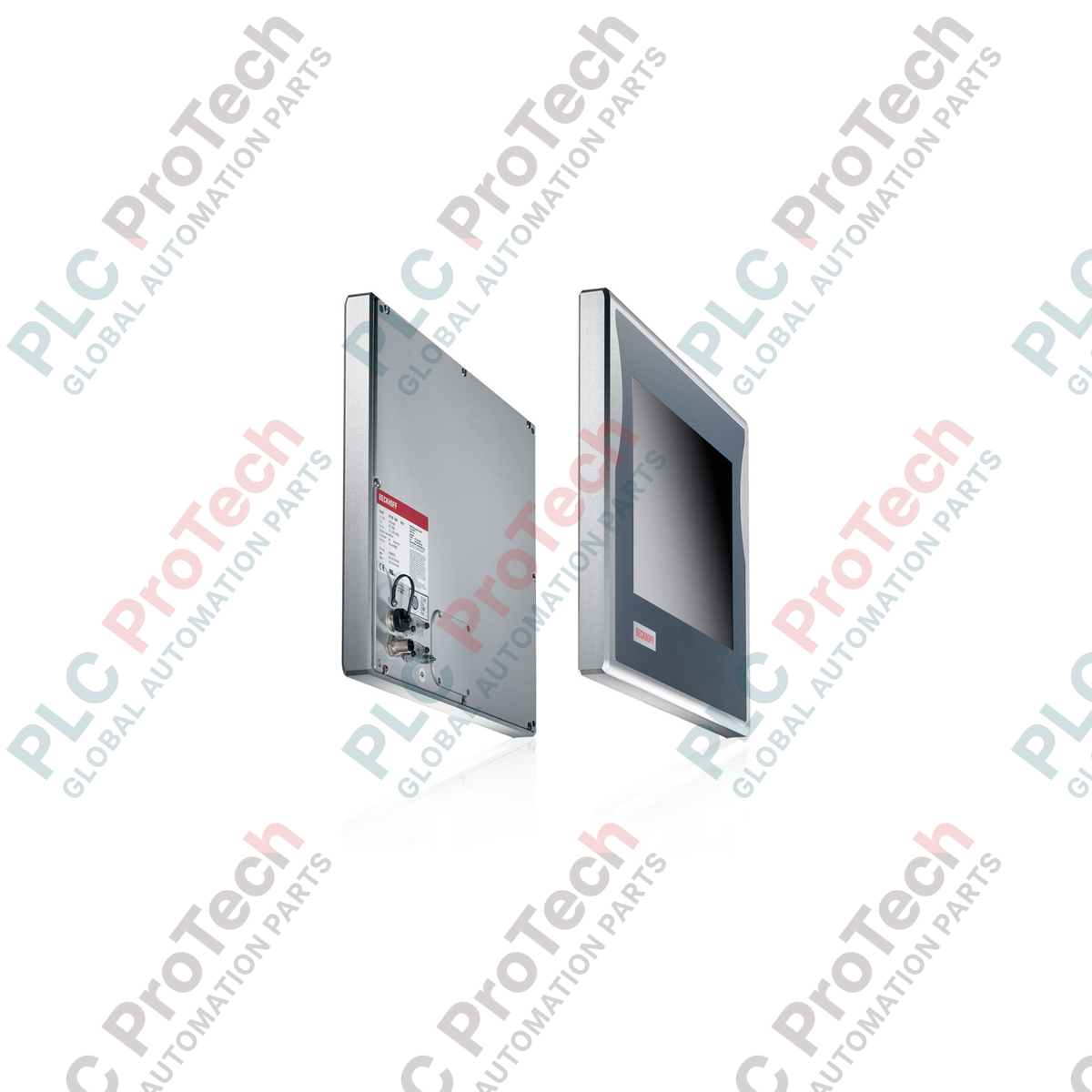

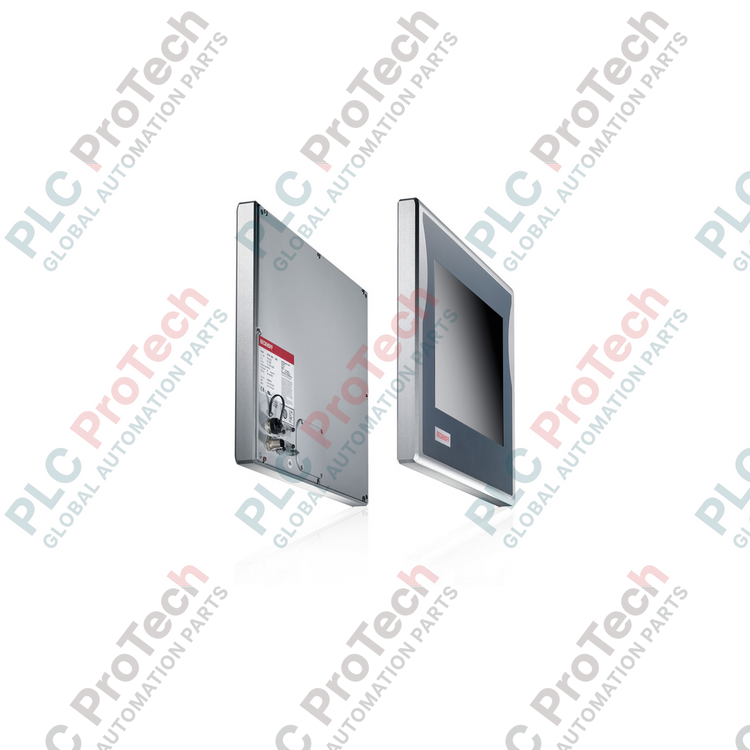

Beckhoff CP7722-0000-0050 CP77xx Series 15-Inch Control Panel PC

Beckhoff CP7722-0000-0050 CP77xx Series 15-Inch Control Panel PC

Apenas 10 item(ns) restante(s) em estoque

  • Fabricante: BECKHOFF

  • Nº do Produto: CP7722-0000-0050

  • País de origem:Alemanha

  • Tipo de Produto: Panel PCs

  • Pagamento: T/T, Western Union

  • Peso: 500g

  • Porto de embarque: Xiamen

  • Garantia: 12 meses

Ver detalhes completos
Descrição do Produto
FAQ
Envio e Devoluções
Detalhes adicionais
Avaliações

Description

Designed for high-performance machine-level visualization and direct mounting arm installation, the Beckhoff CP7722-0000-0050 integrates a high-resolution display with robust industrial computing hardware. Engineered to operate reliably in harsh manufacturing environments, this device features an all-round IP65 protection rating, safeguarding internal electronics against dust, moisture, and water jets. Powered by multi-core Intel Atom processors, the system provides deterministic execution for demanding TwinCAT automation and HMI applications without the need for active cooling components.

Key Features

  • Industrial Visualization: 15-inch active matrix TFT display with a sharp 1024 x 768 XGA resolution.
  • All-Round Protection: Full IP65 rated aluminum enclosure, eliminating the need for protective cabinets or secondary housings.
  • Flexible Connectivity: Dual independent 10/100/1000BASE-T Ethernet channels with sealed IP65 connector interfaces.
  • Efficient Mounting: Rear-panel preparation with 4 x M6 x 18 mm threaded holes optimized for mounting arm adapters.
  • Solid-State Reliability: CFast non-volatile storage media ensures high write-endurance and vibration resistance.

Typical Industrial Applications

  • Automotive assembly lines and robotic work cell visualization.
  • Food, beverage, and packaging machinery requiring washdown-compatible controls.
  • Machine tool control panels and distributed CNC operator interfaces.
  • Process control systems integrated with plant-wide EtherCAT architectures.

Technical Specifications

Technical Parameter Specification Value
Manufacturer Beckhoff Automation
Model / Article Number CP7722-0000-0050
Display Size & Aspect Ratio 15-inch / 4:3
Physical Resolution 1024 x 768 pixels
Processor Architecture Intel Atom x5-E39xx Series (Dual or Quad-Core configuration)
System Memory (RAM) Up to 8 GB DDR3L or DDR4 (configuration dependent)
Storage Interface 1 x CFast card slot (accessible via IP65 cover)
Ethernet Interfaces 2 x 10/100/1000BASE-T (IP65 RJ45 connectors)
Serial Connection 1 x RS232, DIN 12-pin (IP65 backplane port)
Supply Voltage 24 V DC (+20% / -15%)
Enclosure Rating IP65 (fully sealed, all sides)
Operating Temperature 0 to 45 degC
Mounting Configuration Rear-plane 4 x M6 x 18 mm threaded holes
Shipping Weight (Calculated) 8.00 kg

Connections and Interfaces

Port Identifier Connector Type Functional Assignment
Power Input 3-pin IP65 Connector 24 V DC System Power, Ground, and PE
LAN 1 / LAN 2 IP65 RJ45 circular connector Dual gigabit Ethernet links for control and plant networks
COM1 DIN 12-pin (IP65) RS232 serial interface (requires D-sub 9-pin adapter)

Empirical Engineering Insights

Alternative Models & Compatibility

The CP7722-0000-0050 belongs to the legacy CP77xx range, optimized for high-reliability local display operations. When upgrading from older 12-inch or 15-inch models, confirm the TwinCAT 3 runtime level configuration. Devices built with Intel Atom x5-E3930 fall under performance category 40, whereas x5-E3940 configurations require performance category 50 licenses. Retaining the exact mounting arm interface dimensions allows seamless swap-outs with minimal structural modification.

Application Pitfalls & Engineering Notes

Because this Panel PC features a completely closed, fanless aluminum design, thermal management relies strictly on natural convection. Avoid mounting the unit in locations exposed to direct radiant heat sources or enclosed niches with restricted airflow, as temperatures exceeding 45 degC will initiate automatic processor throttling to protect core silicon.

Commissioning & Wiring Tips

To guarantee full IP65 rating integrity, all mating industrial cables must be equipped with the correct threaded sealing hoods and tightened to the specified torque. Standard RJ45 cables without IP65 industrial outer sleeves must not be used on active machinery, as moisture ingress through the backplane ports will result in intermittent network dropouts and potential logic faults.

Installation Guidelines

CRITICAL WARNING: Prior to mounting, wiring, or servicing this Panel PC, ensure the local 24 V DC power supply is de-energized. Do not connect or disconnect any IP65 circular interfaces while the electrical circuit is energized to prevent contact degradation, electrical arcing, or damage to internal communication chips.
1
Mechanical Mounting: Align the rear of the Panel PC with the mounting arm adapter. Fasten using 4 x M6 bolts, ensuring thread penetration does not exceed the maximum backplane depth of 18 mm. Tighten to specification to ensure torque load is evenly distributed.
2
Equipotential Grounding: Establish a low-impedance functional ground connection between the dedicated grounding screw on the enclosure chassis and the machine frame PE rail.
3
Interface Connection: Securely route the Ethernet, serial, and 24 V DC power cables through the mounting arm, avoiding sharp bends. Thread and lock each circular connector until fully seated to compress the integral rubber seals.
4
Power Verification: Apply 24 V DC power and verify system boot-up sequence. Adjust visualization settings using the touch interface or an attached external keyboard as required by local operational parameters.
Loading product navigation…
Key Features:
#Beckhoff CP77xx Series #Panel PCs

What is the IP rating of the Beckhoff CP7722-0000-0050 Panel PC?
The CP7722-0000-0050 features an all-round protection rating of IP65, meaning it is completely dust-tight and protected against water jets from any direction. It can be installed directly on mounting arms in washdown environments without secondary enclosures.

Which TwinCAT licensing performance level is required for this model?
The licensing level depends on the processor core configuration. For models equipped with the Intel Atom dual-core x5-E3930, TwinCAT 3 performance class 40 is required. For models configured with the quad-core x5-E3940, performance class 50 is needed.

How do you connect a standard 9-pin D-sub serial interface to this unit?
The backplane has a sealed DIN 12-pin serial connector. Connecting standard RS232 devices requires a specialized adapter cable that converts the DIN 12-pin interface to a standard 9-pin D-sub connection while maintaining structural integrity.

Does this Panel PC require active fan cooling?
No. The unit uses a fanless design that relies on natural convection cooling through its aluminum housing. It is critical to operate the unit within the specified 0 to 45 degC range and avoid installations with restricted air circulation.
