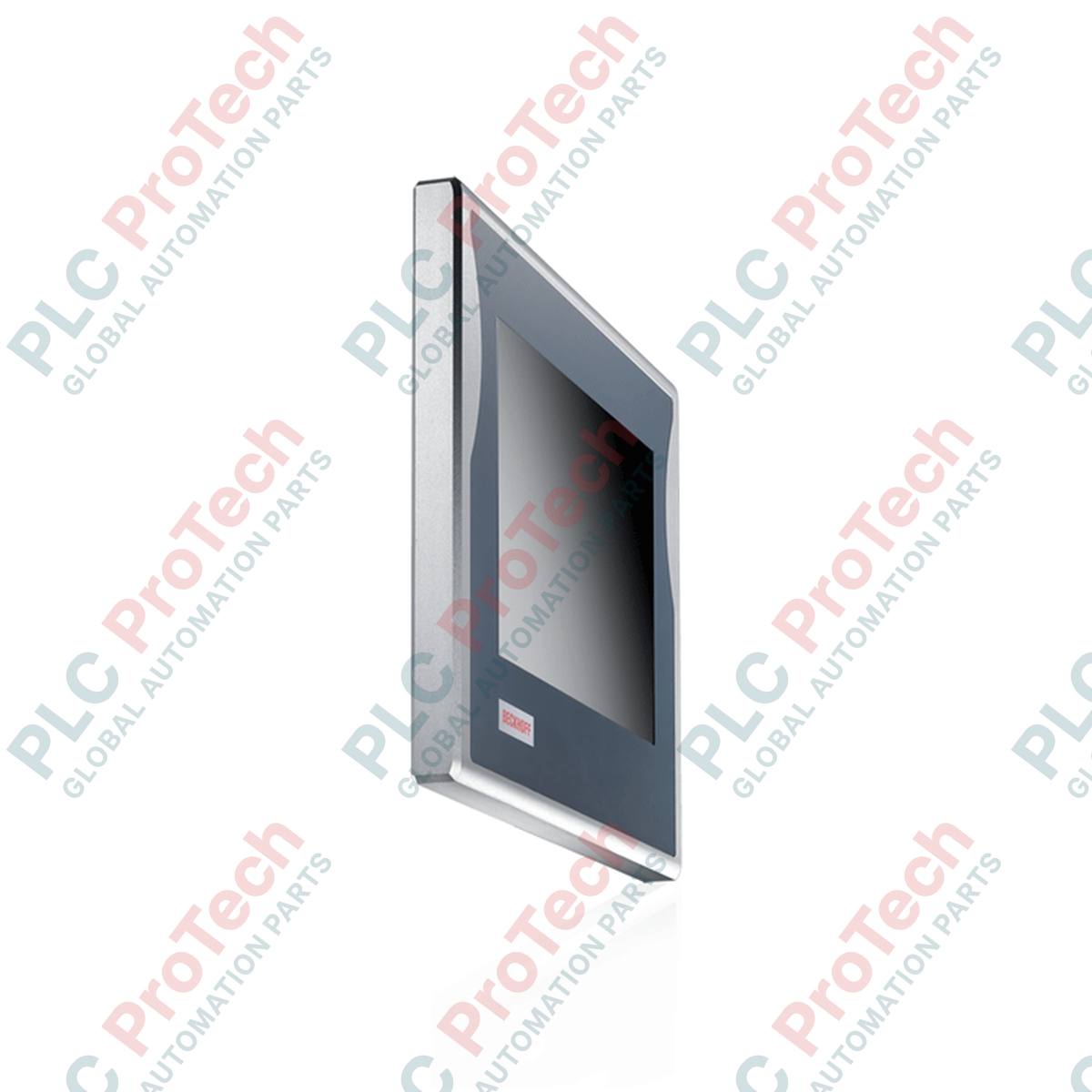

Beckhoff CP7731-0000-0050 CP77xx Panel PC

Description

Engineered for high-performance visualization and direct-machine control, the Beckhoff CP7731-0000-0050 is an integrated 12-inch industrial Panel PC designed for mounting arm installation. Combining a high-contrast 800 x 600 display with a resilient Intel Atom processor, this controller delivers real-time processing and graphical user interface capabilities directly to the field level without requiring an additional control cabinet.

Housed in a robust, fully enclosed aluminum casing, the device provides comprehensive IP65 protection against dust, moisture, and oil ingress. Connectivity is optimized via industrial IP65-rated Ethernet ports and specialized serial interfaces, ensuring reliable communication with higher-level networks and localized PLC systems. The fanless design and low-power processing architecture ensure high reliability and a long operating life cycle in demanding industrial environments.

Features

• High-Resolution Display: 12-inch TFT screen with 800 x 600 resolution for clear technical visualization.
• Robust Housing: Fully enclosed, high-durability aluminum housing providing complete dust and water protection.
• In-Field Installation: Designed with a mounting arm adapter featuring 4 x M6 x 18 mm threaded holes in the rear panel.
• Fanless Operation: Efficient passive cooling via the metal chassis, eliminating moving parts and increasing system lifespan.
• Dual Gigabit Ethernet: Dual 10/100/1000BASE-T IP65 interfaces for reliable network integration.

Applications

• Machine tool visualization and interactive control.
• Automotive production line HMIs.
• Packaging and process automation systems.
• Material handling and plant floor monitoring.

Technical Specifications

Connections and Interfaces

Installation Guidelines

For safe installation and long-term operating stability, adhere to the following instructions:

• Mounting: Attach securely to a suitable mounting arm system using the four integrated M6 x 18 mm threaded holes on the rear plate. Do not exceed the specified screw torque limits.
• Ingress Protection: Ensure all connected cables use IP65-compliant industrial connectors. If any ports are unused, seal them with corresponding IP65 protective caps.
• Environmental Clearance: Ensure adequate air circulation around the aluminum chassis. Do not cover the heat dissipation surfaces on the rear casing. Maintain operating temperature within 0 to 45 degC.
• Grounding: Connect the housing's functional ground connection to the central plant grounding system to minimize electromagnetic interference.
