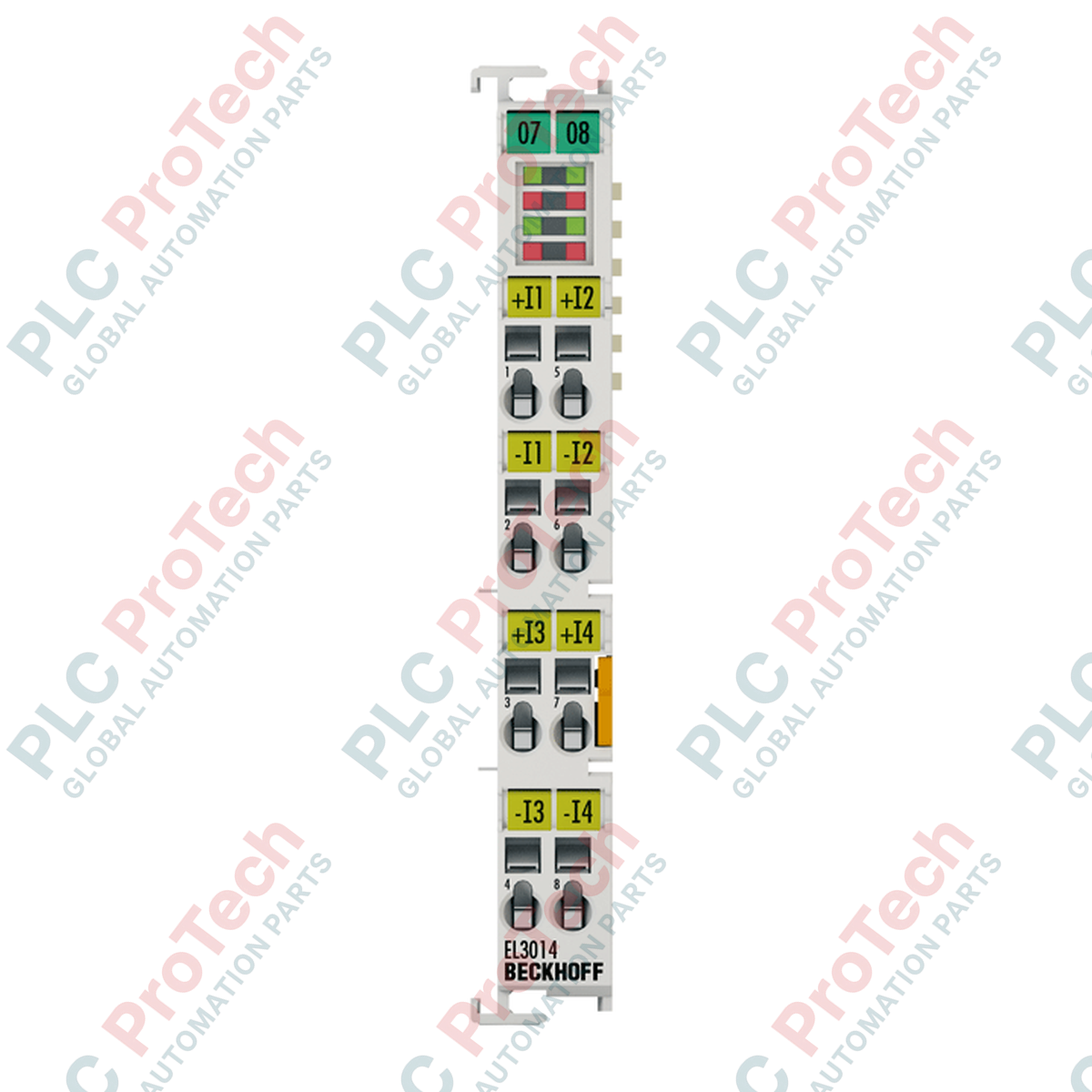

EL3014 | BECKHOFF | EtherCAT Terminal Analog Input Module

Apenas 10 item(ns) restante(s) em estoque

Fabricante: BECKHOFF
Nº do Produto: EL3014
País de origem:Alemanha
Tipo de Produto: EtherCAT Terminal
Pagamento: T/T, Western Union
Peso: 2000g
Dimensões: 12 mm x 100 mm x 68 mm
Porto de embarque: Xiamen
Garantia: 12 meses

Description

The EL3014 is a 4-channel analog input terminal by Beckhoff, specifically engineered for measuring current signals in the 0…20 mA range. This module utilizes differential input technology to provide high noise immunity and signal integrity in industrial environments. Featuring a 12-bit resolution and configurable FIR/IIR filters, the EL3014 enables precise and stable signal processing for complex automation tasks. It is designed to be fully integrated into EtherCAT networks, requiring no manual address or configuration settings.

Features

4-channel analog input (0…20 mA current)
Differential input technology for improved signal quality
12-bit resolution (16-bit internal representation)
Configurable input filtering (FIR/IIR) for noise reduction
Integrated limit value monitoring
Electrical isolation of 500 V (E-bus/signal voltage)
Compact housing with integrated status LEDs

Technical Specifications

Feature	Specification
Manufacturer	Beckhoff
Model	EL3014
Number of Inputs	4 (differential)
Signal Current	0 to 20 mA
Resolution	12 bit
Conversion Time	0.625 ms (default, configurable)
Common-mode Voltage	Max. 10 V
Surge Voltage Resistance	35 V DC
Current Consumption (E-bus)	Typ. 130 mA
Dimensions (W x H x D)	12 mm x 100 mm x 68 mm
Operating Temperature	-25 to +60 degC
Storage Temperature	-40 to +85 degC

Installation Guidelines

Mounting: Secure the EL3014 onto a standard 35 mm DIN rail (EN 60715). Utilize the double slot and key connection for robust side-by-side assembly with other EtherCAT terminals.
Wiring: The terminal uses spring-loaded connections. Strip wires (solid or flexible) to a length of 8–9 mm. Refer to the differential input wiring schematics to ensure correct signal polarity.
Environmental: Rated IP20; install within an enclosure protected against dust and moisture. Ensure operating temperatures remain between -25 and +60 degC.
Hazardous Areas: This terminal carries an ATEX marking (II 3 G Ex nA IIC T4 Gc). Verify compliance with local hazardous area installation requirements before integration.

Compliance and Certifications

CE, UL
ATEX: II 3 G Ex nA IIC T4 Gc
EMC immunity/emission: Conforms to EN 61000-6-2 / EN 61000-6-4
Vibration/shock: Conforms to EN 60068-2-6 / EN 60068-2-27

Key Features:

#Beckhoff #EtherCAT Analog Input Terminals

What is the primary advantage of the differential input technology used in the EL3014?

Differential inputs improve signal integrity by measuring the potential difference between two conductors, which significantly increases noise immunity compared to single-ended inputs.

Is the input filter frequency configurable?

Yes, the module supports activatable FIR/IIR filters, allowing users to configure the filtering based on the application requirements.

What is the surge voltage resistance of this module?

The terminal is protected against surge voltages up to 35 V DC.

Does the EL3014 require manual addressing?

No, it is an EtherCAT terminal and does not require any manual address or configuration settings.
