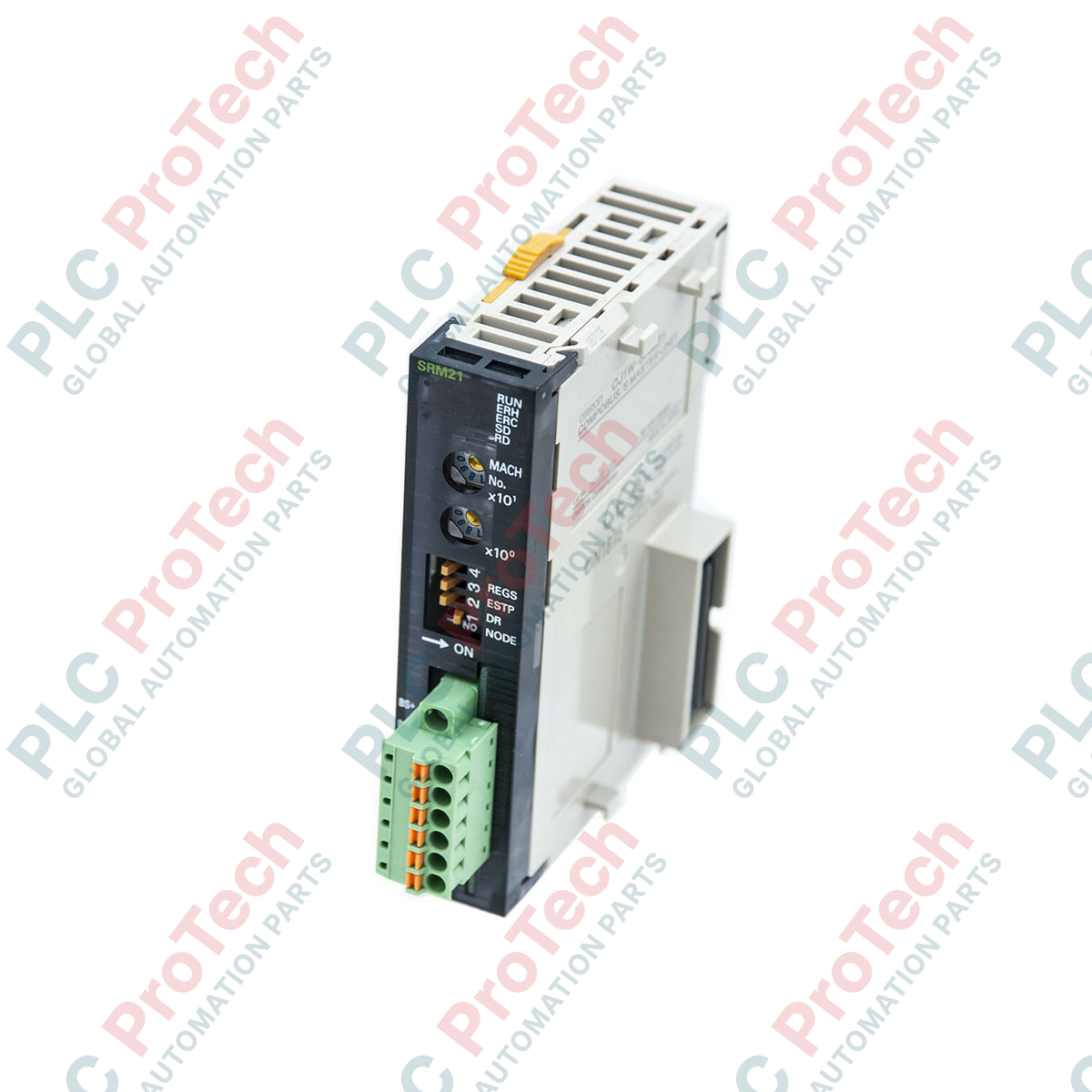

Omron CJ1W-SRM21 CJ1 Series CompoBus/S Master Unit

Description

Designed for high-speed sub-bus communications within automated systems, the Omron CJ1W-SRM21 facilitates seamless I/O integration as a dedicated CompoBus/S Master Unit for CJ-series programmable logic controllers. This module functions as an efficient remote I/O terminal hub, allowing CJ1 CPU architectures to communicate with up to 32 remote slave terminals. By offloading local I/O wiring to a localized high-speed bus network, this module significantly reduces physical wiring paths while retaining extremely low I/O response times. System engineers can dynamically allocate memory allocations between 256 or 128 discrete I/O points depending on network complexity and cycle time requirements.

Features

• Selectable I/O Capacity: Supports configuration for either 256 I/O points (using 20 allocated CIO words) or 128 I/O points (using 10 allocated CIO words).
• Dual Transmission Modes: Easily switch between High-Speed mode (750 kbps for up to 100 meters) and Long-Distance mode (93.75 kbps for up to 500 meters).
• Integrated Diagnostics: Dedicated status word flags monitor participation, communication line failures, and individual slave error states.
• Flexible Mounting: Fully compatible with CJ1G, CJ1H, and CJ2M CPU racks and expansion racks.

Applications

• Distributed packaging machinery and conveyor line control.
• Material handling sorting systems.
• Remote sensory clusters in industrial assembly cells.
• Decentralized pneumatic valve terminal manifolds.

Technical Specifications

Connections and Interfaces

Empirical Engineering Insights

Alternative Models & Compatibility

The CJ1W-SRM21 serves as a drop-in replacement for older CompoBus systems and integrates directly onto CJ-series backplanes. Note that if you are migrating from CS-series architectures using CS1W-SRM21, the memory mapping and CIO allocations match conceptually, but the physical form factor of the module is strictly CJ-series. Ensure you verify backplane physical depth limitations when arranging the CJ1W card in high-density control panels.

Application Pitfalls & Engineering Notes

A common field misconfiguration involves mixing CompoBus/S slave speeds. All connected slaves on the same trunk network must be configured to the same transmission mode as the CJ1W-SRM21 (either all High-Speed or all Long-Distance). If there is a mismatch, the Master Unit will generate persistent participation flags or fail to establish communication with the misplaced nodes entirely.

Commissioning & Wiring Tips

Always power cycle the PLC chassis after modifying the front-panel rotary unit number switches or the internal DIP switches. The CJ CPU registers the CJ1W-SRM21 hardware parameters and physical address configurations only during its initial boot sequence. Additionally, ensure that standard 100-ohm terminating resistors are installed at both physical ends of the communication trunk to eliminate signaling echoes and line noise.
