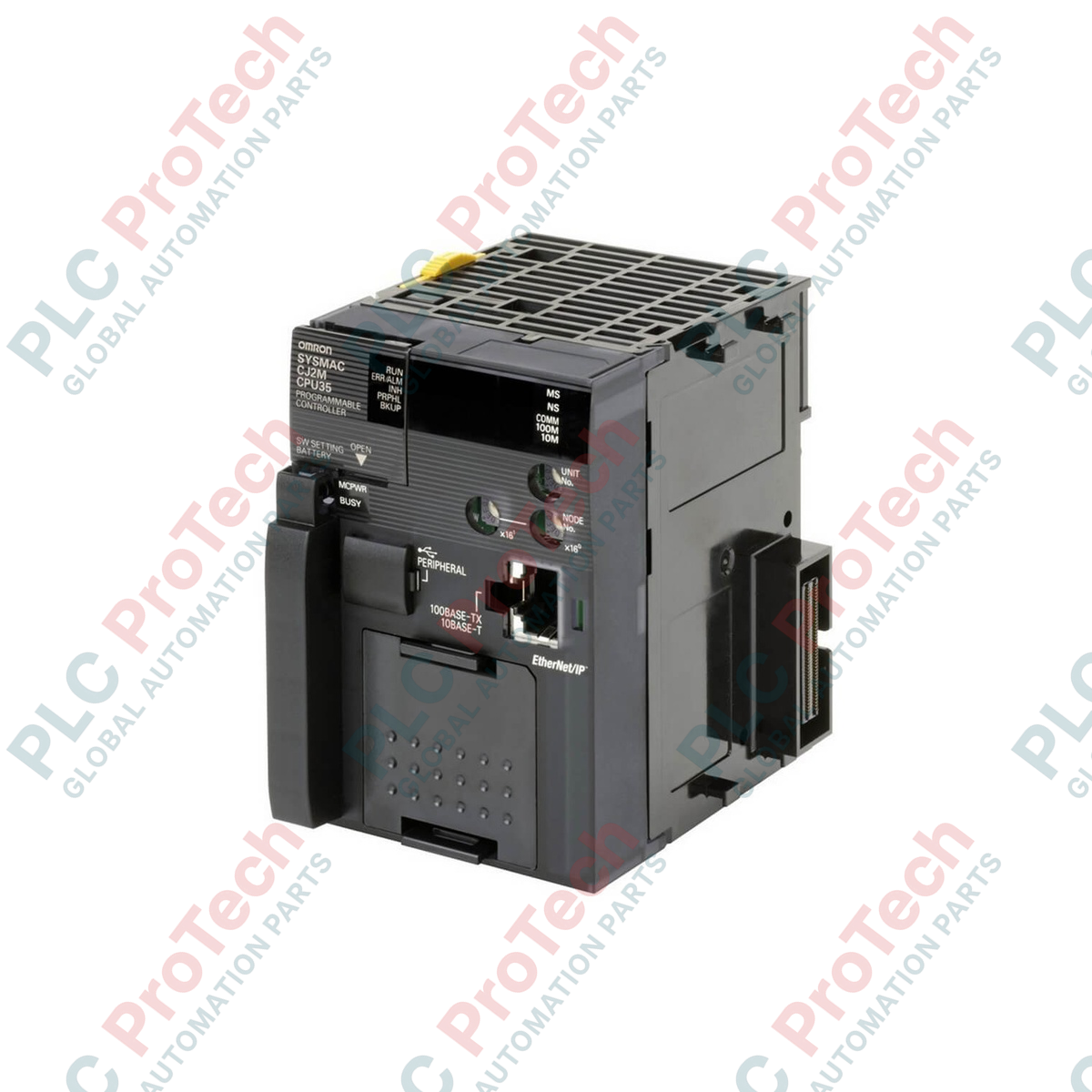

Omron CJ2M-CPU32 CJ2M Series CPU Unit with Built-in EtherNet/IP

Description

Designed for distributed machine control applications, the Omron CJ2M-CPU32 processor offers integrated EtherNet/IP networking and high-speed execution capabilities within the modular SYSMAC CJ Series platform. As an industrial automation workhorse, this controller provides a versatile processing solution featuring built-in Ethernet TCP/IP, USB, and EtherNet/IP interfaces, making it highly compatible with modern factory automation networks. The CPU is equipped with an option slot that allows direct integration of a pulse I/O module to facilitate precise positioning control. Engineered to deliver exceptional processing speed and memory depth, the Omron CJ2M-CPU32 manages complex logic operations and high-density industrial I/O configurations with ease, ensuring low cycle times and high reliability in demanding automation setups.

Features

• High-Speed Processing: Performs logical instruction execution in just 0.04 microseconds, minimizing system scan time.
• Integrated EtherNet/IP Port: Built-in RJ45 EtherNet/IP interface supports cyclic tag data links and message communications for direct SCADA, HMI, and peer-to-peer PLC networking.
• Flexible Memory Allocation: Features a program capacity of 30K steps and a data memory capacity of 64K words for handling sophisticated sequence algorithms.
• USB Interface: Built-in USB 2.0 programming port allows convenient, high-speed connection to CX-Programmer or Sysmac Studio software without specialized adapters.
• Expandable Modularity: Supports up to 40 expansion units and can manage a local digital configuration of up to 2,560 I/O points across the rack assembly.

Applications

• Multi-axis positioning systems using optional high-speed pulse I/O boards.
• Packaging and labeling machinery requiring high-speed indexing and cyclic sensor evaluation.
• Distributed water treatment control and remote telemetry stations.
• Material handling and conveyoring systems integrated with EtherNet/IP frequency drives.

Technical Specifications Table

Connections and Interfaces

Alternative Models & Compatibility

The CJ2M-CPU32 serves as a direct upgrade to the legacy CJ1M and CJ1G series processor modules, aligning perfectly with existing CJ-series backplanes. However, users should note that the built-in EtherNet/IP functionality of the CPU3x series consumes a functional Node address and requires CX-Programmer version 9.12 or higher for proper hardware configuration and tag synchronization. If a built-in EtherNet/IP port is not required by your design, the lower-cost CJ2M-CPU12 model may be considered as a functional alternative, though it will require external serial or separate Ethernet modules for field network access.

Application Pitfalls & Engineering Notes

When configuring cyclic Tag Data Links over the built-in EtherNet/IP port, calculate the total packet-per-second (PPS) load. The CJ2M-CPU32 supports a maximum processing capacity of 1,200 PPS. Exceeding this packet threshold can lead to watchdog timeout errors, communication drops, or extended PLC cycle times. Additionally, ensure that IP routing tables do not conflict with the native FINS UDP/TCP routing system configured within CX-Programmer to prevent dropped programming connections.

Commissioning & Wiring Tips

Always ensure that the CPU rack's power supply module is fully isolated and powered down before installing or removing the optional Pulse I/O board. Ensure the shielding of your EtherNet/IP RJ45 cables is grounded directly to the control panel's single-point ground. If mounting a CJ2M-MD211 Pulse I/O unit on the left side of the CPU, keep all low-voltage pulse signal lines segregated from 400V high-power AC motor drives to protect high-frequency counter signals against electromagnetic noise degradation.
