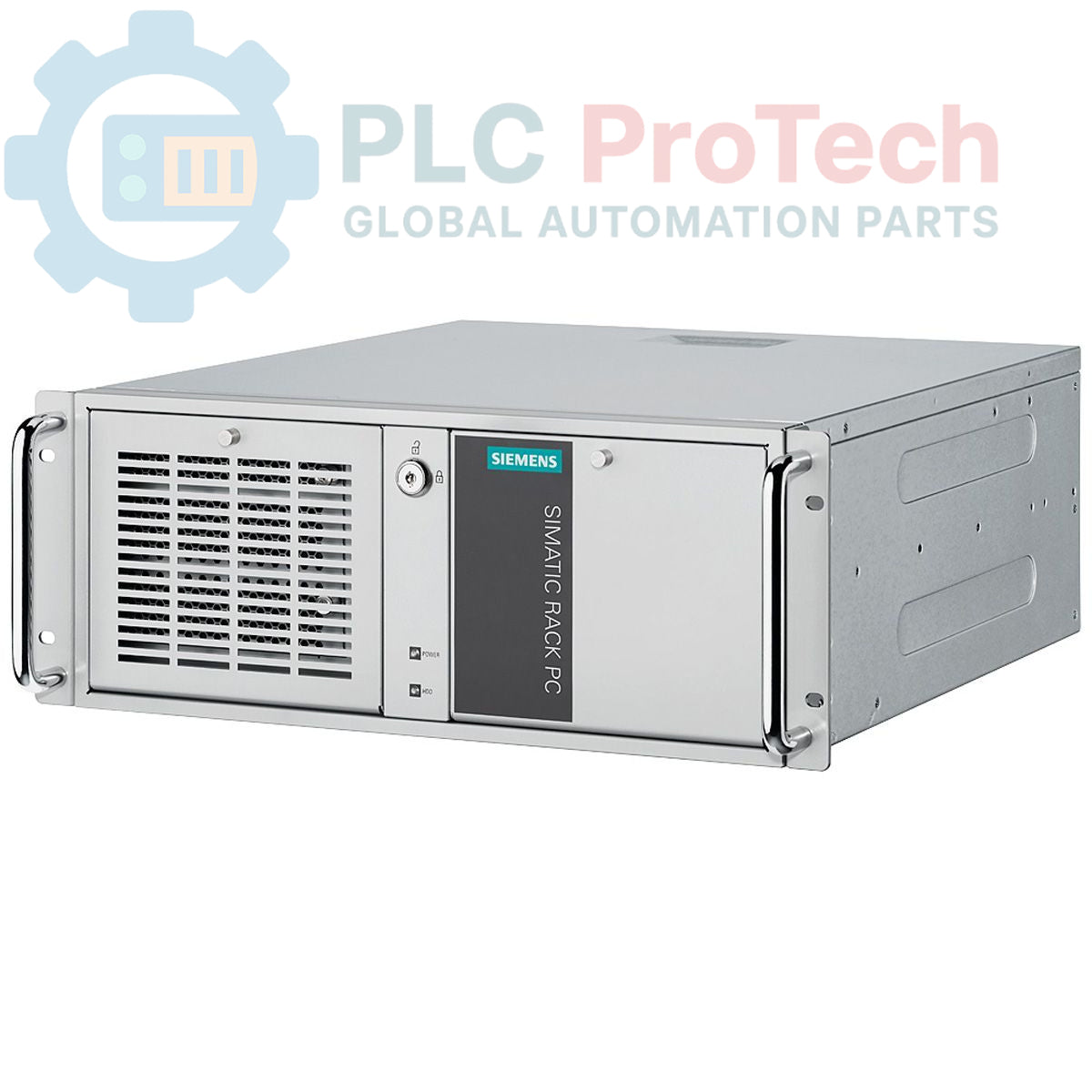

Siemens 6AG4012-0AA22-0XX0 Rack PC SIMATIC IPC347D

Description

The 6AG4012-0AA22-0XX0 is a SIMATIC IPC347D industrial rack-mounted computer designed for demanding automation environments. This 19-inch, 4HU Rack PC serves as a high-reliability platform for data processing, HMI supervision, and industrial control tasks. Featuring an Intel Pentium Dual Core G2010 processor, it provides the necessary compute resources for localized automation nodes and legacy system integration. The unit is equipped with a robust internal 500 GB HDD and 4 GB DDR3 RAM, supported by an industrial-grade 100/240 V power supply for stable operation in fluctuating electrical environments.

Features

• Form Factor: 19-inch 4HU rack-mounted chassis.
• Processor: Intel Pentium Dual Core G2010 (2C/2T, 2.8 GHz, 3 MB cache).
• Memory: 4 GB DDR3 SD-RAM (1x 4 GB), single channel.
• Storage: 1x 500 GB HDD (internal).
• Optical Drive: DVD +/-RW included.
• Connectivity: 2x Gbit Ethernet, 1x DVI-D, 1x VGA, 2x USB (front), 4x USB (rear), 2x serial, 2x PS/2, and audio.
• Power: Integrated 100/240 V industrial power supply.

Applications

• Industrial process monitoring and data logging.
• HMI (Human Machine Interface) visualization stations.
• Control room data processing terminals.
• Integration with legacy industrial communication networks.
• Automation cell management and local supervisory control.

Technical Specifications

Installation Guidelines

• Mounting: Ensure the unit is installed in a standard 19-inch rack using appropriate rail supports to accommodate the 16.76 kg weight.
• Cooling: Maintain adequate clearance around the front and rear of the chassis to ensure optimal airflow and prevent thermal throttling of the CPU.
• Environment: Protect the unit from excessive vibration, moisture, and dust; ensure the installation environment is within standard industrial temperature ranges.
• Power: Connect to a stable 100/240 V AC power source. Verify that local power grounding complies with industrial safety standards to prevent electrical noise interference.
• Cable Routing: Secure all communication cables and peripherals to prevent mechanical strain on the front and rear ports.
