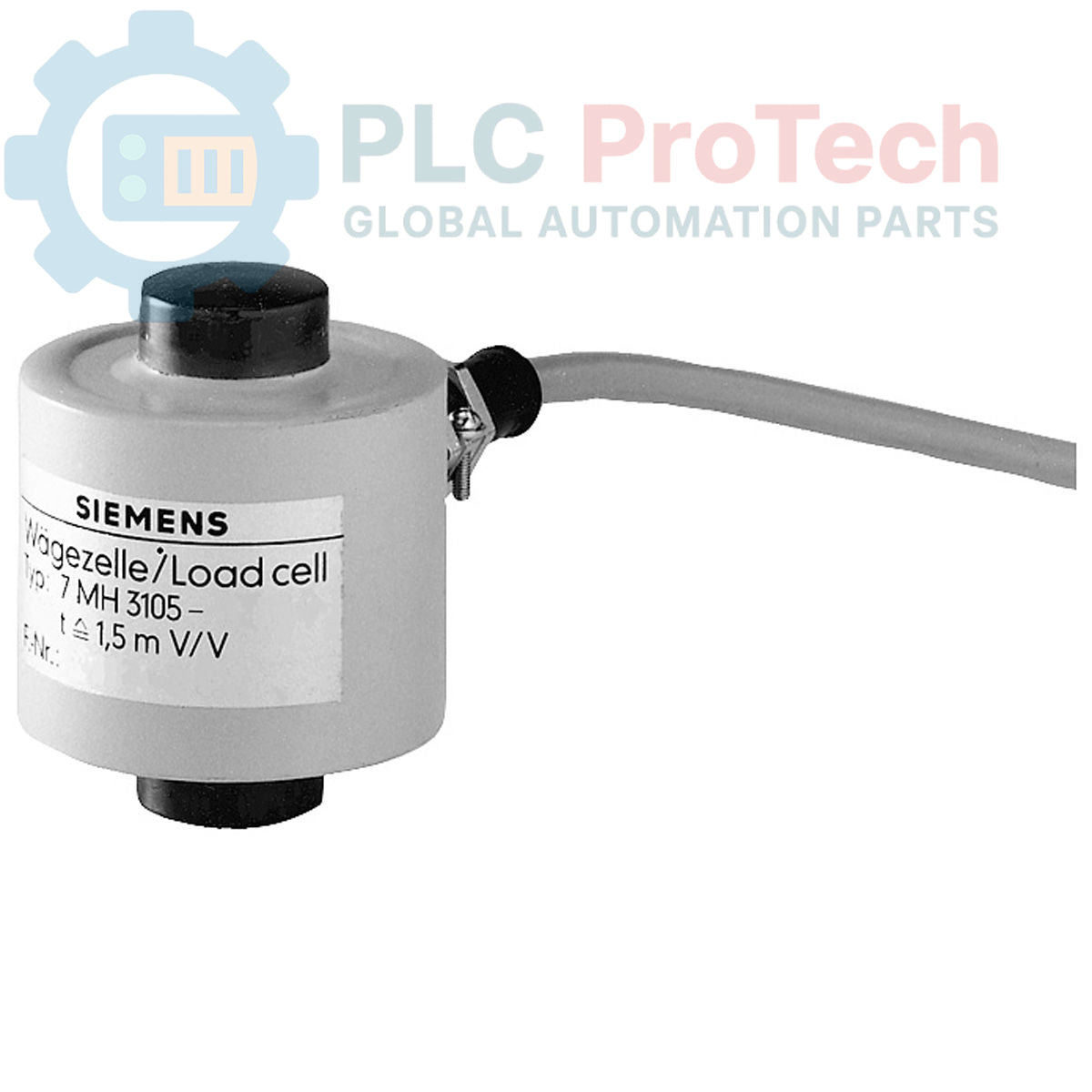

Célula de Carga Siemens 7MH3105-2AC0 SIWAREX R

Description

The 7MH3105-2AC0 is a SIWAREX R series load cell, part of the K-range, designed for accurate weight measurement in industrial scale applications. Engineered for a rated load capacity of 2.8 tons, this sensor is built to deliver high reliability in demanding environments. It features a heat-resistant 5-meter connection cable (with a tolerance of ± 0.1 m), ensuring performance stability in settings where thermal exposure is a factor. With an accuracy class of 0.2%, this load cell provides precise and consistent data for industrial weighing processes.

Features

• Rated load capacity of 2.8 tons
• Integrated heat-resistant connector cable for high-temperature resilience
• Accuracy class of 0.2% for reliable weight measurement
• Included 5-meter (± 0.1 m) connecting cable for flexible installation
• Robust design suitable for industrial-grade weighing systems

Applications

• Industrial platform scales
• Hopper and silo weighing systems
• Process weighing and batching applications
• High-temperature industrial process environments
• General-purpose industrial force and weight measurement

Technical Specifications

Installation Guidelines

• Mounting: Ensure the load cell is installed on a flat, rigid, and vibration-free surface to maintain measurement accuracy.
• Alignment: Proper mechanical alignment is essential; ensure the load is applied vertically and centered to avoid side-loading errors.
• Cabling: Use the provided heat-resistant cable for connections; route the cable away from potential mechanical pinch points or sharp edges.
• Shielding: Ensure all load cell cabling is shielded and connected to the system ground to minimize electrical noise and signal interference.
• Calibration: Perform a system calibration after installation and periodically during service to maintain the 0.2% accuracy standard.
