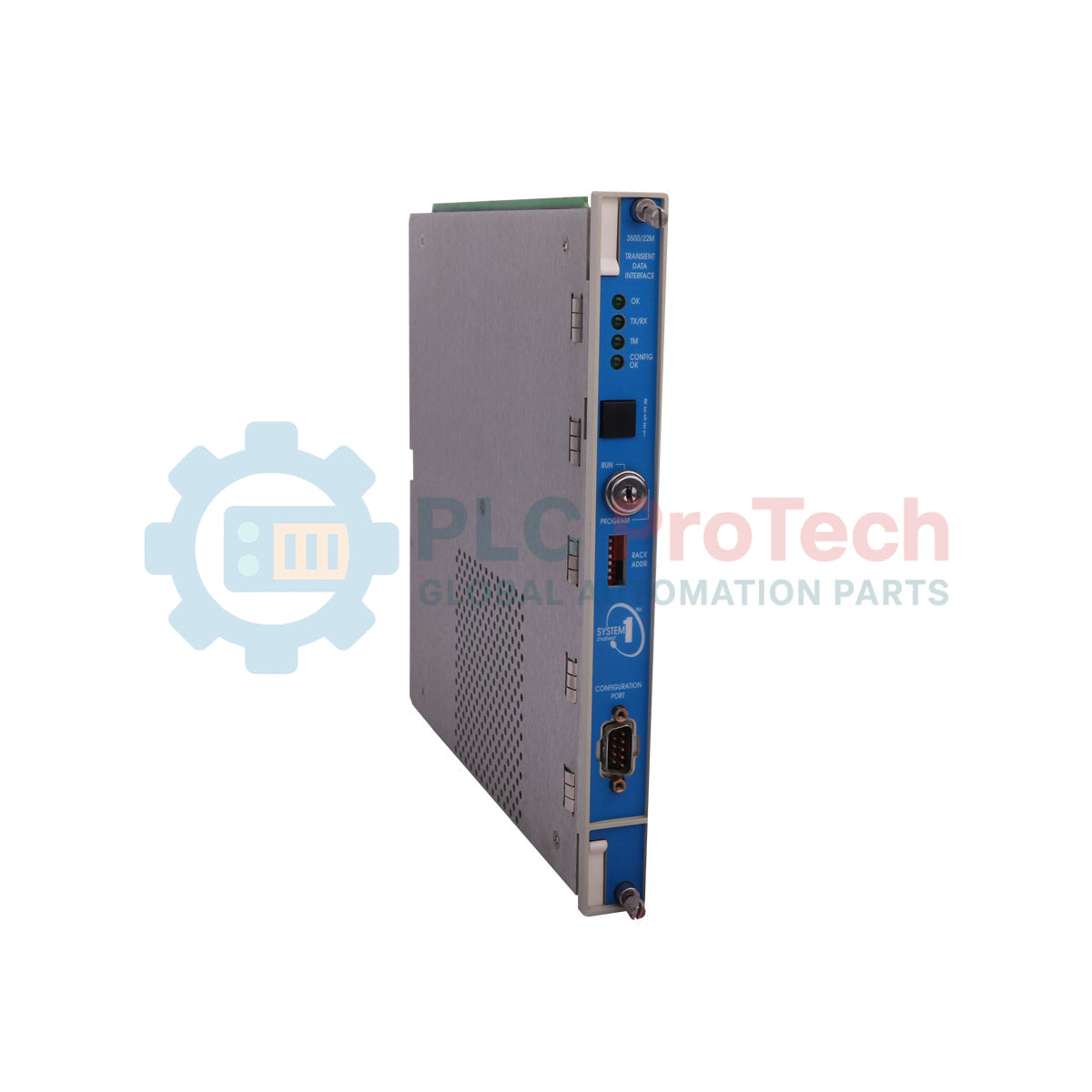

Manufacturer: Bently Nevada
Product No.: 288055-01
Country of origin:สหรัฐอเมริกา
Product Type: Standard Transient Data Interface Module with USB cable
Payment: T/T, Western Union
Weight: 320g
Shipping port: Xiamen
Warranty: 12 months
The 288055-01 is a 3500/22M TDI module designed for precise condition monitoring.
It provides the interface between the 3500 rack and monitoring software.
The module integrates high-bandwidth communication processing for reliable data capture.
It supports static, transient, and high-resolution waveform data across all channels.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 288055-01 |
| Module Type | Standard Transient Data Interface (TDI) |
| System | 3500/22M |
| Country of Origin | Made in U.S.A. |
| Installation Slot | Slot 1 in 3500 rack |
| Interface | Specification |
|---|---|
| USB Port | Front panel USB Type-B |
| USB Version | USB 2.0 |
| Function | Local configuration and diagnostics |
| Network Communication | Requires compatible rear I/O module |
| Backplane Interface | 3500 proprietary rack interface |
| Parameter | Specification |
|---|---|
| Data Types | Static, transient, high-resolution waveforms |
| Acquisition Mode | Continuous, multi-channel |
| Synchronization | Processes synchronous and asynchronous data |
| Internal Storage | Non-volatile flash memory for configuration and event logs |
| Parameter | Specification |
|---|---|
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | Up to 95% non-condensing |
| Parameter | Specification |
|---|---|
| Shipping Weight | 5.0 kg (includes packaging) |
| Packaging | Factory-sealed, ESD-safe materials |
| Accessories | USB configuration cable, quick start manual |
Technicians connect laptops directly to the front USB port.
Rear cabinet access is not required for configuration or diagnostics.
Waveform data streams across all channels simultaneously.
This ensures no data loss during critical machine events.
Captures machine behavior during startup and coast-down.
Helps identify resonance, rotor rubs, and bearing instability.
Advanced shielding protects against electromagnetic interference.
The module maintains signal integrity in harsh industrial environments.
| Requirement | Description |
|---|---|
| Rack Type | 3500/05 or 3500/06 |
| Slot | Slot 1 (TDI slot) |
| Software | 3500 Rack Configuration Software |
| Monitoring System | System 1 (Version 6.x or later) |
| Required I/O Module | Rear I/O module, e.g., 146031-01 for Ethernet |
Is the 288055-01 a replacement for 138607-01?
Yes. It fits the same rack slot and offers improved performance.
Does this module require a rear I/O module?
Yes. Ethernet or network communication requires a compatible rear module.
What data does the 288055-01 collect?
It collects static, transient, and high-resolution waveform data.
Where is this module installed?
It installs in Slot 1 of the 3500/05 or 3500/06 rack.
How can I verify authenticity?
Each unit is factory-sealed with a “Made in U.S.A.” label.
The serial number can be verified against Bently Nevada records.
