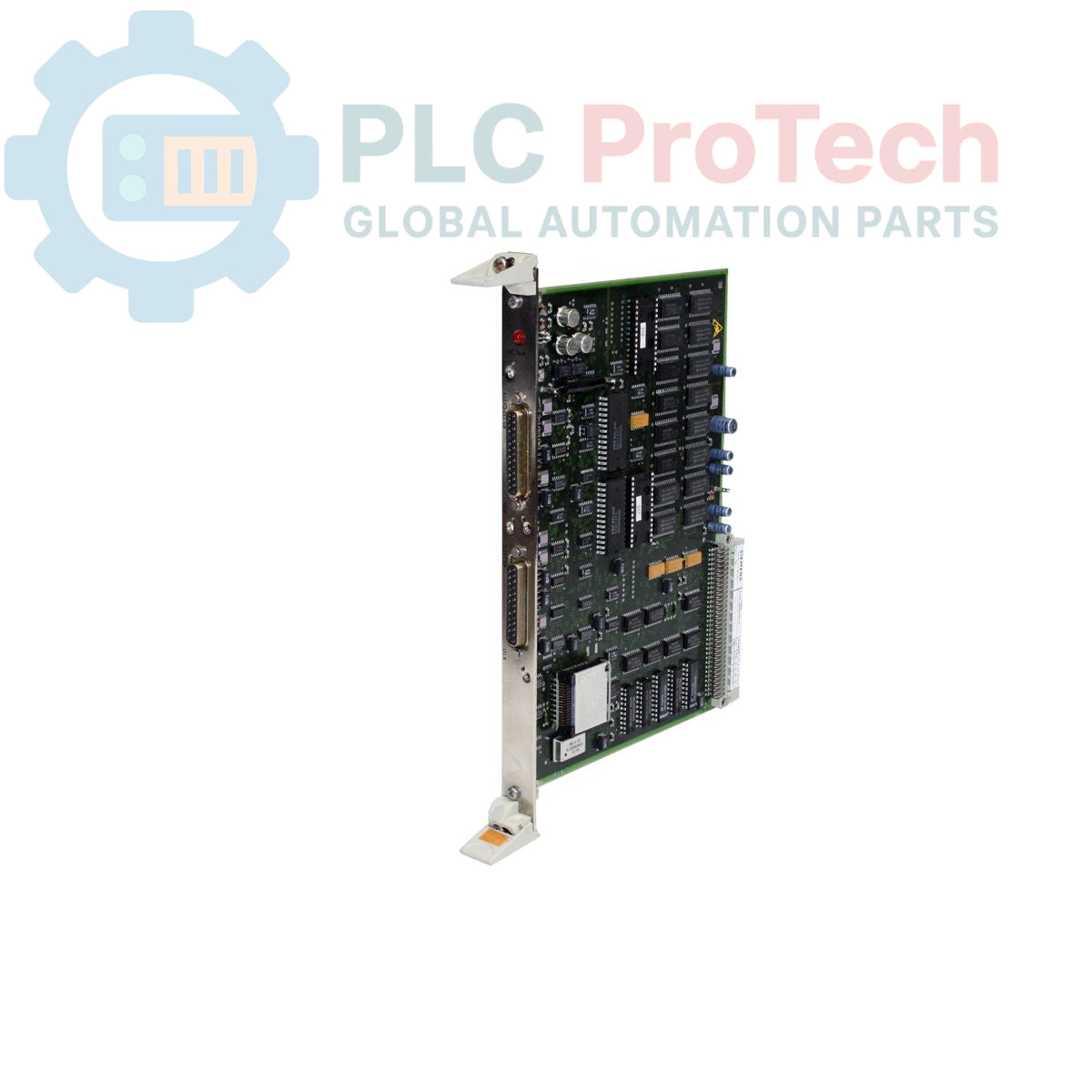

Siemens 6FX1125-8AA04 SINUMERIK 810 GA1 CPU

Description

The 6FX1125-8AA04 is a specialized CPU SMD (Surface Mount Device) module designed for the SINUMERIK 810 GA1 numerical control system. This processing unit features 128 KB of memory, providing essential logic and control execution capabilities for legacy CNC machine tool applications. Note that this specific unit is supplied without a boot memory component. As a critical core component of the SINUMERIK 810 architecture, it is responsible for interpreting control instructions and managing coordinate data within precision manufacturing environments. Its compact, high-density design makes it a vital spare part for the maintenance and continued operation of older SINUMERIK-controlled machinery.

Features

• Processor Architecture: Designed for the SINUMERIK 810 GA1 CNC platform.
• Memory Capacity: Features 128 KB of integrated memory for control tasks.
• Form Factor: Compact SMD-based module for streamlined control cabinet integration.
• Maintenance Compatibility: Ideal replacement component for sustaining legacy CNC systems where original hardware availability is limited.

Applications

• Retrofitting and maintenance of SINUMERIK 810 GA1 CNC systems
• Precision machine tool motion control
• Legacy automation equipment repair
• Industrial control logic processing for manufacturing systems

Technical Specifications

Installation Guidelines

• Handling: As a highly sensitive SMD electronic component, handle only in an ESD-safe environment using proper grounding straps to prevent irreparable damage.
• Boot Requirements: Ensure that a compatible boot module or firmware environment is available, as this unit is provided without a boot sequence.
• Insertion: Align the pins or connector interface carefully with the host control board; ensure the module is fully seated to guarantee secure electrical contact.
• Power: Ensure the CNC control system is fully de-energized before performing any module swaps to avoid voltage spikes.
• Verification: After installation, verify system parity and initialize the control software to confirm successful recognition of the CPU memory.
