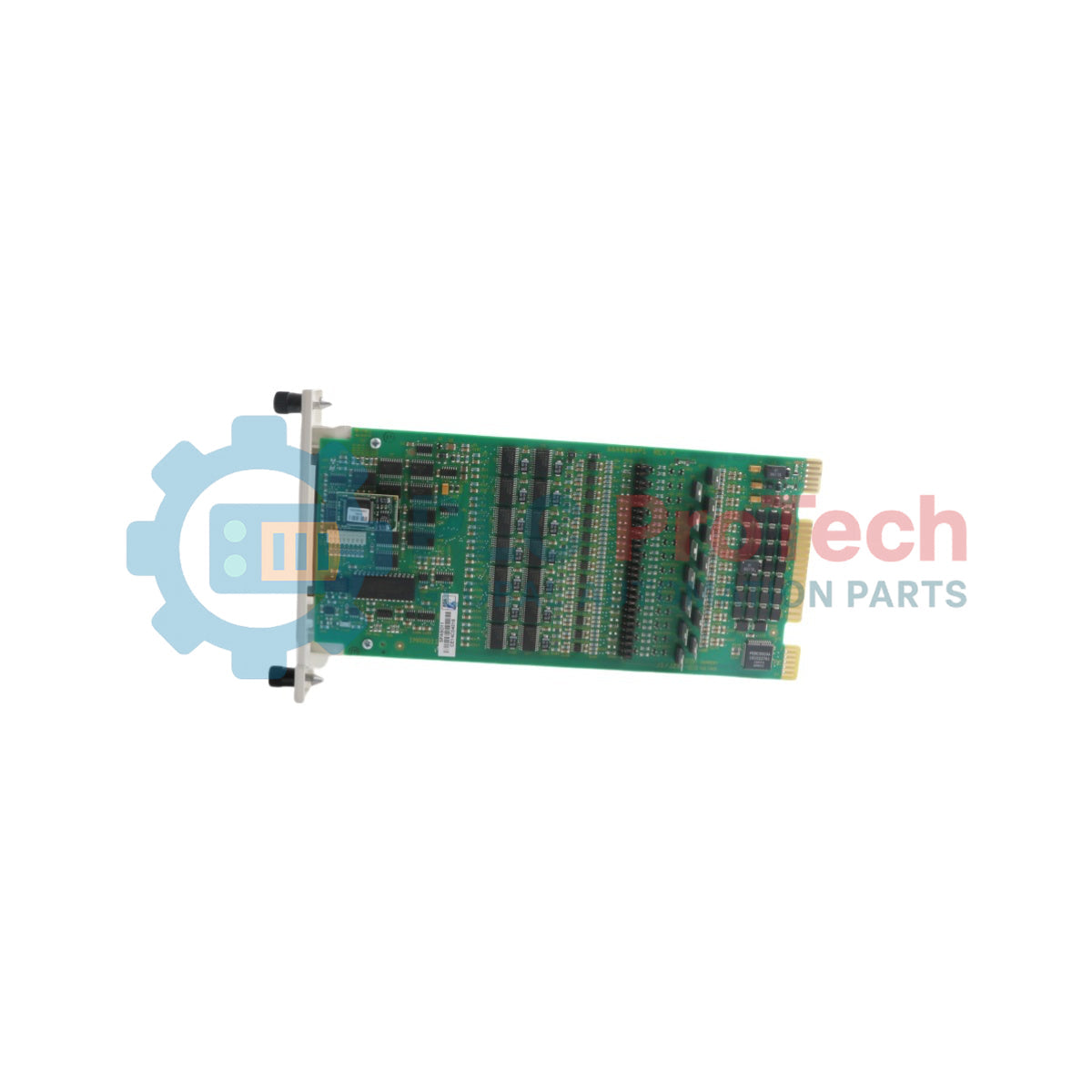

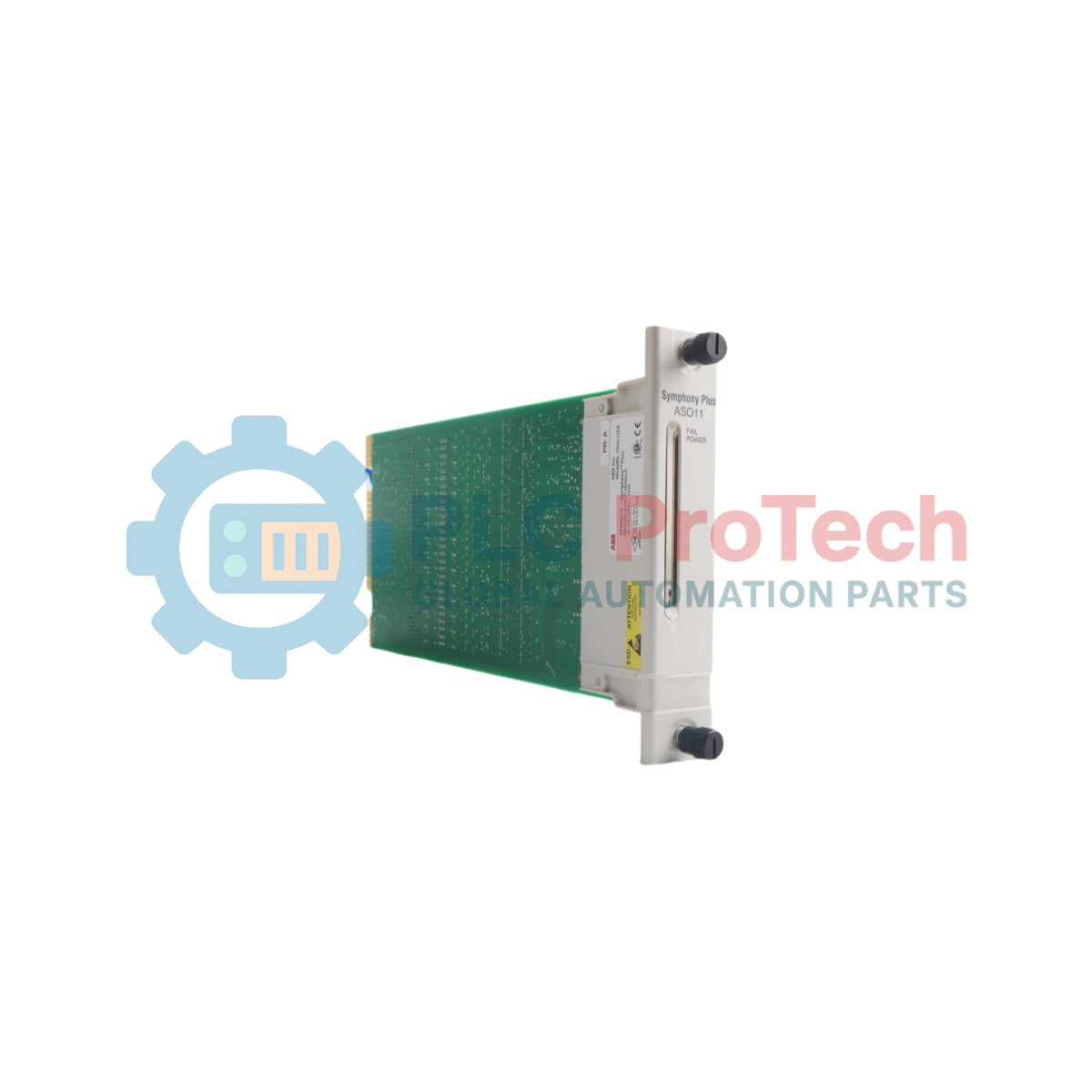

ABB SPASO11 Symphony Plus Analog Output Module

The ABB SPASO11 is a high-density Analog Output Module engineered to act as the physical control interface between the Symphony Plus execution architecture and industrial process modulators. Functioning as a fundamental component of the S+ HR Series (Harmony Rack) platform, this module translates digital processor variables into high-resolution analog instrumentation paths. The ABB SPASO11 delivers 14 independent channels designed to drive critical industrial field assets such as pneumatic positioners, variable frequency drives, and multi-range current loops with deterministic feedback processing.

Features

• 14 Monitored Output Channels: Provides a high-density footprint layout to maximize spatial efficiency inside standard rack enclosures.
• Multi-Standard Signal Handling: Operates natively across 4-20mA current loops and 1-5VDC voltage span profiles.
• Harmony Rack Form Factor: Integrates into legacy Bailey Infi 90 subracks and upgraded Symphony Plus processing structures.
• Zero-Battery Core Design: Eliminates periodic maintenance routines by relying on non-volatile distributed rack parameters.

Applications

• Modulating steam governor valves and feedwater regulator systems in heavy utility thermal power plants.
• Transmitting precision speed setpoints directly to medium-voltage variable frequency drives in processing environments.
• Controlling linear stroke actuator systems inside petrochemical continuous distillation columns.

Technical Specifications

Empirical Engineering Insights

Alternative Models & Compatibility

The SPASO11 modernizes the role previously fulfilled by the vintage ASO11 and AS01 functional cards. Although pinouts map flawlessly to old terminal units, executing a loop modernization requires verifying your operational block libraries inside S+ Engineering (Composer) to guarantee correct calibration registers match this revision.

Application Pitfalls & Engineering Notes

Operating channels near high loop impedance thresholds can cause output driver truncation or analog errors. Ensure total line impedance plus device input load remains securely beneath the hardware channel limit to prevent signal clipping during peak 20mA conditions.

Commissioning & Wiring Tips

Always route the field analog signals using individual twisted-pair shielded cables. Loop shields must be continuously bound together and referenced to the dedicated instrument ground bus on the rack chassis; floating shields or multi-point grounding will introduce induced noise, distorting valve position commands.

Installation Guidelines
