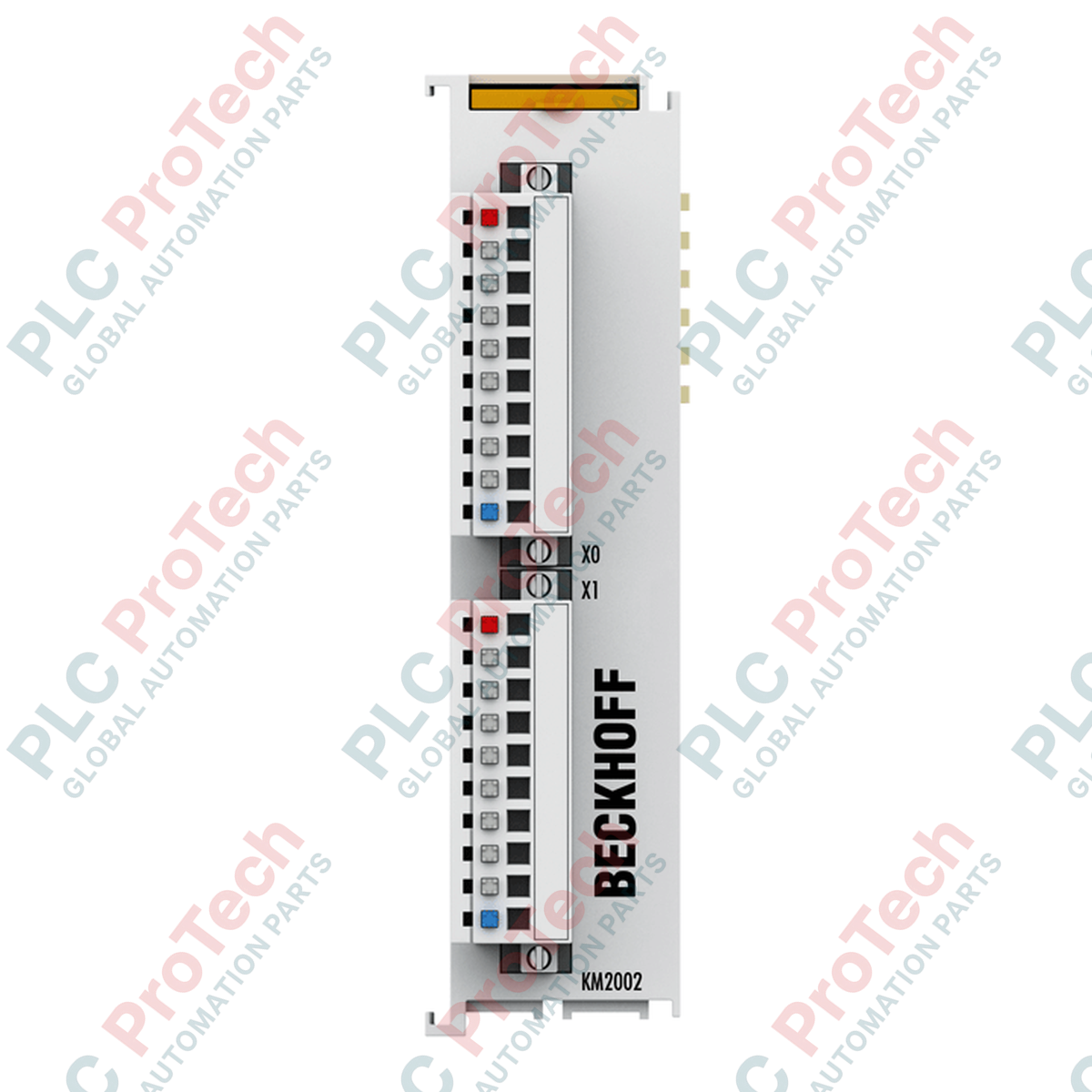

Beckhoff KM2002-0001 Bus Terminal Module

The KM2002-0001 is a 16-channel digital output Bus Terminal module designed for the efficient switching of 24VDC actuators in industrial control systems. Engineered by Beckhoff, this compact I/O module features a high-density design, providing 16 output channels distributed across two 8-channel connectors to optimize cabinet space while maintaining electrical isolation between the K-bus and the field potential.

Features

• 16 digital output channels (2 x 8-channel blocks)
• 24VDC operating voltage with 0.5A max output current per channel
• Short-circuit proof design with a short-circuit current limit of < 2 A
• Electrical isolation of 500 V between K-bus and field potential
• Integrated reverse voltage protection
• Pluggable 1-wire connection technology for streamlined wiring and maintenance
• Compact form factor suitable for 35 mm DIN rail mounting

Applications

• Distributed control systems (DCS) for process automation
• Factory automation and machine control
• Signal distribution for actuators, relays, and pilot lamps
• High-density digital signal switching in confined electrical enclosures

Technical Specifications

Connections/Interfaces

Installation Guidelines

• Mounting: Install on a 35 mm DIN rail conforming to EN 60715. Secure the module using the provided lock mechanism.
• Side-by-Side Mounting: Utilize the double slot and key connection for stable, modular assembly.
• Wiring: Use stranded or solid wire with a cross-section between 0.08 and 1.5 mm2. Ensure a stripping length of 8 mm.
• Environment: Maintain the installation within an IP20-rated enclosure to prevent dust and moisture ingress. Ensure ambient conditions remain within the specified 0 to +55 degC range.
• EMI/RFI: Maintain proper cable routing practices to ensure compliance with EMC standards EN 61000-6-2 and EN 61000-6-4.
