Manufacturer: Bently Nevada
Product No.: 32000-16-05-08-070-03-02
Country of origin:สหรัฐอเมริกา
Product Type: 32000 Metric Proximity Probe Housing
Payment: T/T, Western Union
Weight: 320g
Dimensions: 32.02cm x 9.14cm x 9.14cm
Shipping port: Xiamen
Warranty: 12 months

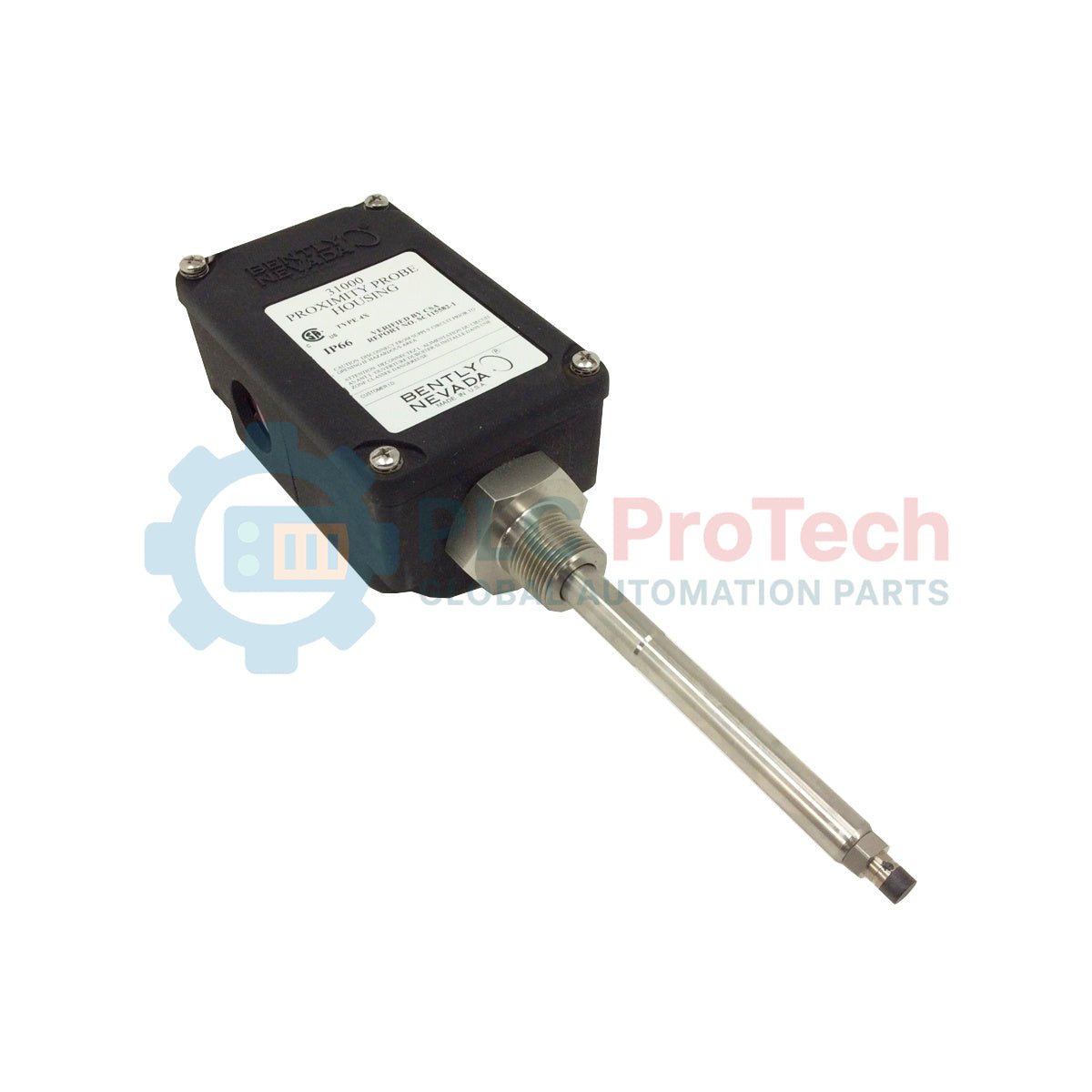

The 32000-16-05-08-070-03-02 from Bently Nevada is a high-quality 32000 Metric Proximity Probe Housing, designed for reliable installation of 3300 XL 8 mm probes in industrial machinery. Its rugged construction and certified protection ratings ensure accurate shaft vibration monitoring in harsh and hazardous environments.
Ideal for:
Steam and gas turbines
Industrial pumps and compressors
Motors and rotating equipment requiring vibration monitoring
Hazardous or high-impact environments
The housing maintains precise probe alignment while protecting the sensor from mechanical stress, temperature extremes, and environmental contaminants.
Compatible with 3300 XL 8 mm probes
Standoff adapter: 80 mm, probe penetration: 70 mm
Robust PPS thermoplastic housing with conductive fibers
Stainless steel sleeve and retaining chain (AISI 304), exterior screws (AISI 303)
CSA Type 4X and IP66 rated, CENELEC EN50014 compliant
O-ring: Neoprene®, temperature range: -51°C to +105°C
Certified impact resistance at -39°C, +115°C, and ambient conditions
Two M20 fittings, plugs, and cable seal grip for armored cables
Lightweight and durable (1.2 kg), shipping weight 2 kg
| Parameter | Specification |
|---|---|
| Product Type | 32000 Metric Proximity Probe Housing |
| Model / Part Number | 32000-16-05-08-070-03-02 |
| Compatible Probe | 3300 XL 8 mm probe |
| Probe Cable Length | 0.5 m |
| Standoff Adapter | 80 mm |
| Probe Penetration | 70 mm |
| Fittings | Two plugs, M20 fitting, cable seal grip for armored cable |
| Mounting Thread | 3/4-14 NPT |
| Housing Material | Glass-reinforced PPS thermoplastic with conductive fibers |
| Sleeve & Retaining Chain | AISI 304 stainless steel |
| Exterior Screws | AISI 303 stainless steel |
| O-Ring Material | Neoprene® |
| Protection Ratings | CSA Type 4X, IP66, CENELEC EN50014 |
| Impact Strength | Certified for 4 Joule at -39°C & 115°C, 7 Joule ambient |
| Temperature Rating | -51°C to +105°C (-60°F to +221°F) |
| Dimensions (LxWxH) | 32.02 cm x 9.14 cm x 9.14 cm |
| Weight | 1.2 kg |
| Shipping Weight | 2 kg |
| Country of Manufacture | USA |
| Typical Application | Shaft vibration monitoring in turbines, pumps, and rotating machinery |
