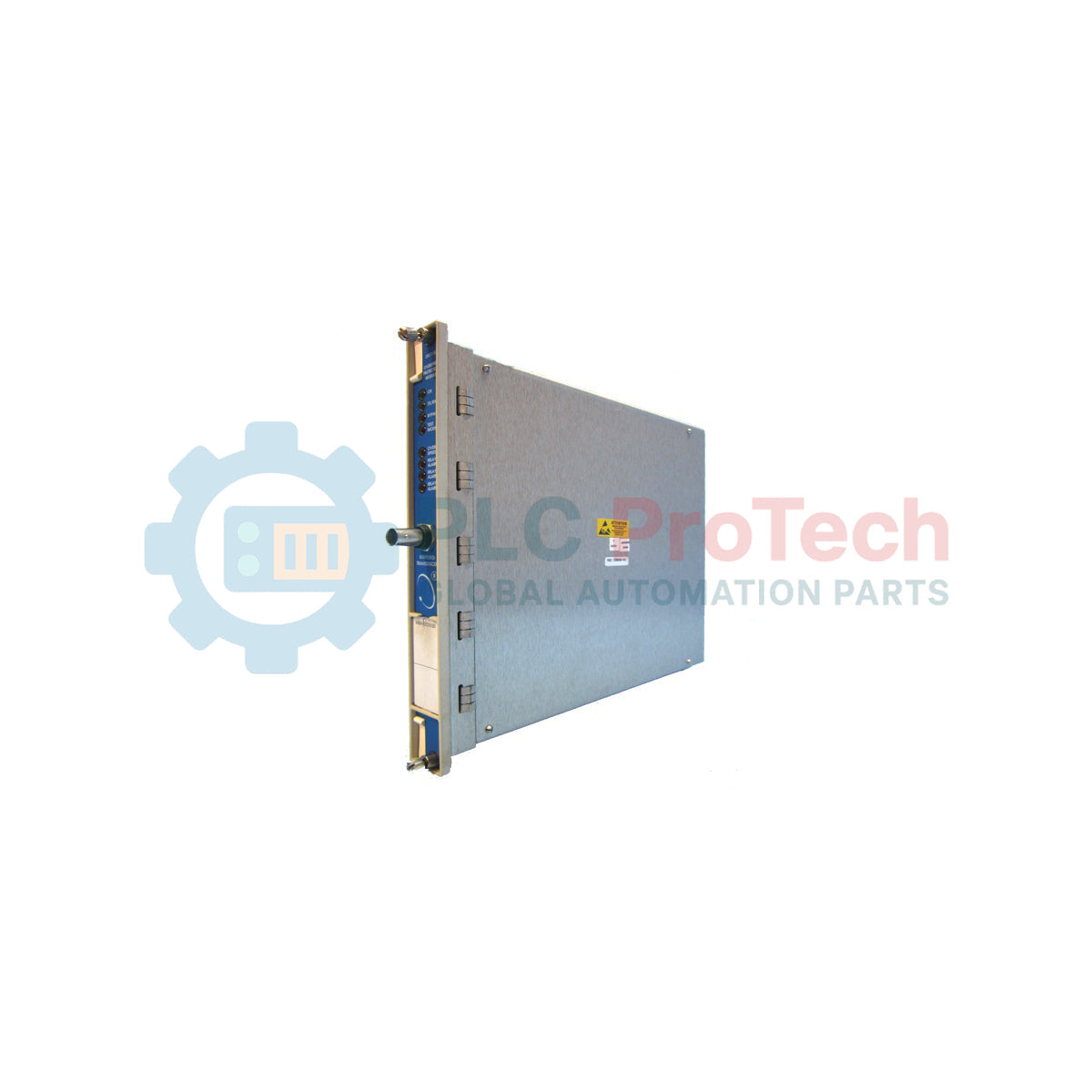

Bently Nevada 3500/53-02-00 Electronic Overspeed Detection System

Description

Engineered for highly critical rotating machinery protection, the Bently Nevada 3500/53-02-00 provides highly reliable, continuous overspeed detection within the 3500 Series machinery monitoring architecture. This two-channel hardware-based system is designed to respond rapidly to overspeed and underspeed conditions, ensuring automatic shutdown capability to prevent catastrophic mechanical failure. By processing raw signals directly from dynamic speed sensors, the system performs real-time frequency-to-velocity calculations with extreme precision, independent of the main turbine control system.

The 3500/53-02-00 configuration features a dual-channel module structure without agency approvals, making it an optimal, cost-effective drop-in replacement or system expansion unit for non-hazardous industrial zones. It integrates seamlessly into standard 3500 backplane racks, interfacing directly with the rack's power supplies and internal communications buses.

Features

• Dual-Channel Protection: Two independent speed channels configured to accept direct transducer signals.
• Transducer Versatility: Direct compatibility with passive magnetic pickups and active proximity probe sensors.
• Internal Signal Limiting: Robust protective circuitry limits over-range input voltages to maintain operational integrity.
• Hardware-Based Speed Analysis: Processes high-frequency speed signals locally to ensure ultra-fast trip response times.
• System Redundancy Support: Configurable within the 3500 system to support multiple voting configurations for enhanced safety.

Applications

• Steam, gas, and hydro turbines in power generation utilities.
• High-speed centrifugal and axial compressors in petrochemical processing.
• Turboexpanders and large-scale industrial fans.
• Heavy industrial rotating machinery requiring dedicated mechanical overspeed trip protection.

Ordering Information

Technical Specifications

Empirical Engineering Insights

Alternative Models & Compatibility

The 3500/53 system requires dedicated overspeed configuration software utilities within the broader Bently Nevada 3500 Rack Configuration package. Note that while this model is a two-channel module (-02), it can be deployed alongside another 3500/53 module to establish a redundant voting system (such as 2-out-of-2 or 2-out-of-3 voting topologies) via the backplane relay modules.

Application Pitfalls & Engineering Notes

A common field issue is signal attenuation at low startup speeds when using magnetic pickups. Passive magnetic pickups require a minimum surface speed to generate the threshold voltage needed for detection. Ensure the sensor-to-target gap is precisely adjusted to provide at least 1.0 V peak-to-peak during the lowest monitoring speeds to prevent false transducer failure alarms or startup trip lockouts.

Commissioning & Wiring Tips

To eliminate electromagnetic interference (EMI) on high-frequency speed input channels, always install three-wire or two-wire shielded cables. Ensure the cable shield is grounded strictly at the 3500 rack ground plane and left floating (insulated) at the sensor end. Grounding both ends will create a ground loop, introducing electrical noise that can manifest as erroneous high-speed spikes and cause nuisance machine trips.
