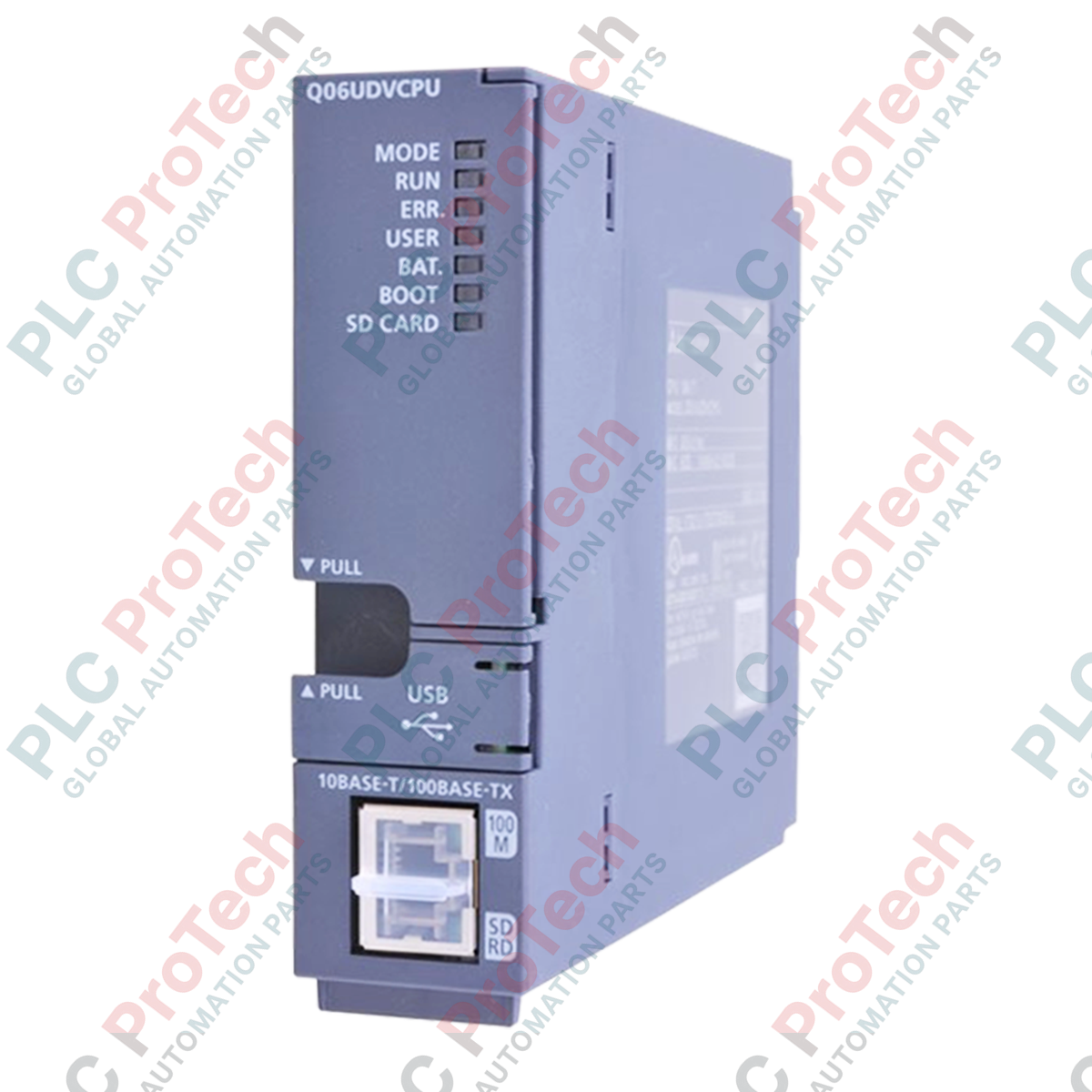

Mitsubishi Electric Q06UDVCPU MELSEC-Q Series CPU Module

Description

High-speed control operations within the MELSEC-Q platform are anchored by the Q06UDVCPU Universal Q series CPU module. This controller integrates built-in USB and RJ45 Ethernet interfaces directly onto the module, optimizing program uploads, debugging, and system integration without requiring dedicated network cards. Engineered for high-throughput production environments, the unit delivers execution times down to 1.9 ns for basic sequence instructions (LD X0).

The Q06UDVCPU features a program capacity of 60K steps (240 KB) paired with robust memory management systems, including an integrated SD/SDHC memory card slot for data logging, backup, and recipe storage up to 32 GB. Optimized for multi-CPU configurations, it allocates a dedicated high-speed communication area of 32 KB to minimize data transfer latency between multiple processors on the same backplane.

Features

• High-speed processing execution at 1.9 ns per basic instruction.
• Integrated communication interfaces including USB and 100Mbps Ethernet.
• Dedicated SD and SDHC memory card slot supporting storage expansion up to 32 GB.
• Substantial memory capacity with 60K steps program memory and 768 KB standard RAM.
• Support for up to 8192 direct input and output points (X/Y0 to X/Y1FFF).
• High-speed multi-CPU shared memory allocation (32 KB area) for parallel processing setups.

Applications

• High-speed packaging and sorting systems.
• Semiconductor manufacturing tools and material handling lines.
• Multi-axis motion synchronization and assembly automation.
• Water treatment, environmental monitoring, and distribution systems requiring remote telemetry.

Technical Specifications

Connections and Interfaces

Installation Guidelines

• Mount the CPU module directly onto a compatible MELSEC-Q series base unit.
• Ensure that the system power supply is completely shut off before inserting or removing the CPU module from the backplane.
• Establish low-resistance grounding through the protective ground (FG) terminal on the system base unit.
• Do not touch the conductive paths or electronic components of the module directly to prevent electrostatic discharge (ESD) damage.
• Maintain sufficient clearance above and below the module to allow optimal heat dissipation during operation.
