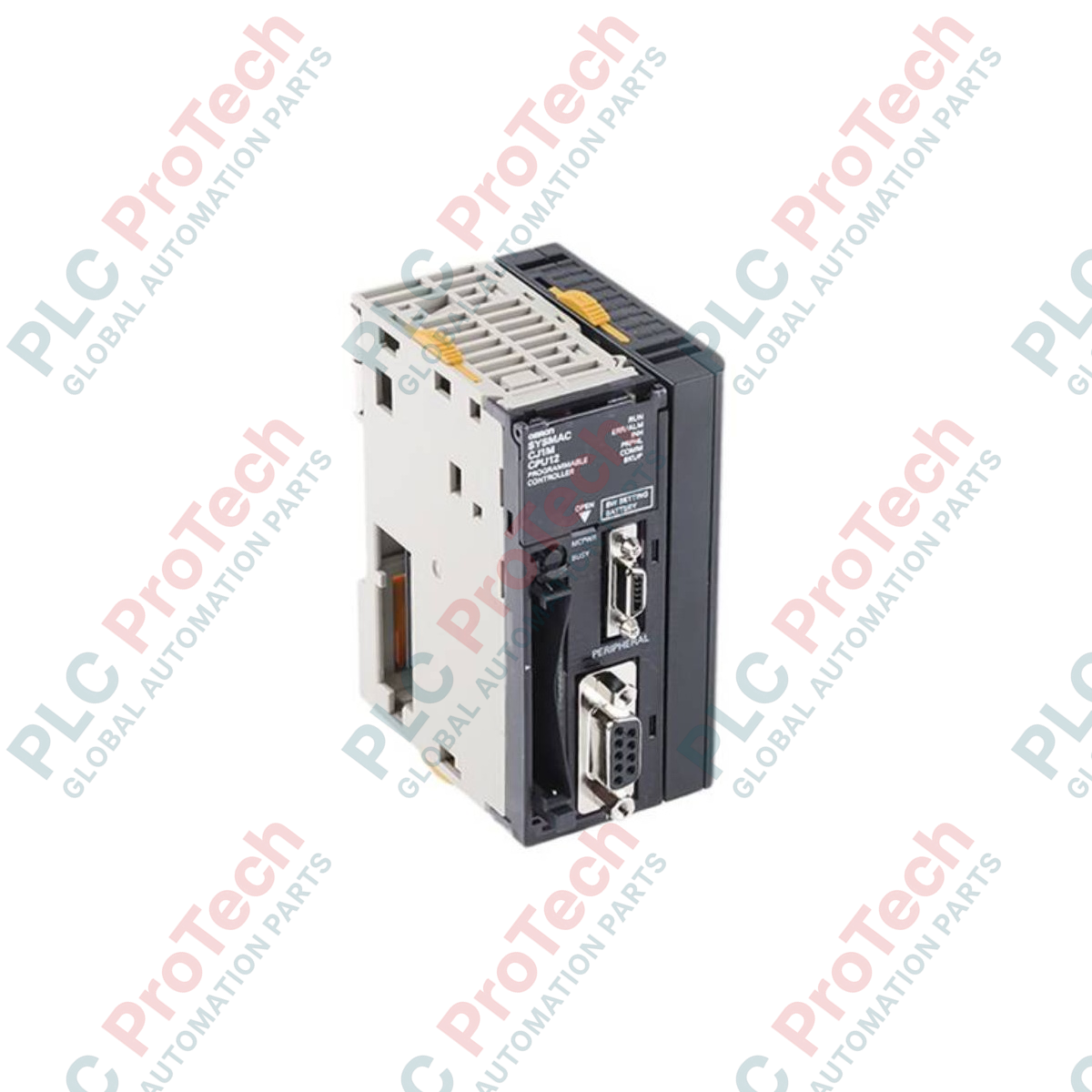

Omron CJ1M-CPU12 CJ Series PLC CPU Unit

Description

Executing logical control in localized machinery setups, the Omron CJ1M-CPU12 CPU unit delivers high-speed, compact processing power for automated systems. This unit manages up to 320 local I/O points and coordinates up to 10 directly connected modules without the need for expansion racks. Engineered for precision and space-constrained enclosures, it features a logical instruction execution speed of 100 nanoseconds and integrates built-in serial and peripheral communications to streamline fieldbus networking and configuration.

Key Features

• Direct Rack-Mounted Control: Supports up to 10 CJ-series expansion units directly on the CPU rack.
• Dual Integrated Communication Ports: Features one dedicated peripheral port and one RS-232C port for simultaneous HMI, programming tool, or third-party serial interface connections.
• Optimized Memory Configuration: Features 10 Ksteps of program capacity and 32 Kwords of DM (Data Memory) space.
• Compact Flash Card Slot: Supports external memory card operations for backup data, logging, and parameter transfers.
• Interrupt and Subroutine Capabilities: Handles up to 1024 subroutines/jumps and 2 scheduled interrupts for time-critical automation routines.

Applications

• Packaging machinery control and sequencing
• Small-scale material handling systems and conveyors
• Auxiliary and secondary control cabinets in wastewater and automotive plants
• Distributed machinery sub-assembly integration

Technical Specifications

Connections and Interfaces

Empirical Engineering Insights

Alternative Models & Compatibility

The CJ1M-CPU12 bridges the gap between the entry-level CJ1M-CPU11 (160 I/O) and the CJ1M-CPU13 (640 I/O). If upgrading from legacy CQM1 systems, note that the physical footprint, instruction address mappings, and communication cables are distinct. Additionally, unlike the larger CJ1M-CPU2x series, this processor lacks built-in pulse I/O or positioning outputs on the CPU board, meaning motion tasks require separate CJ1W-NC position control modules.

Application Pitfalls & Engineering Notes

Because this CPU does not support expansion racks, users are strictly capped at 10 slots on the main CPU rack. When configuring the system, perform a comprehensive current consumption analysis. High-density output modules combined with network units can exceed the current rating of the power supply unit. In such setups, upgrade the power supply to the CJ1W-PA202 (AC) or CJ1W-PD022 (DC) to prevent system drops or communications faults.

Commissioning & Wiring Tips

Verify the physical status of the hardware configuration DIP switches behind the front cover flap prior to commissioning. Switch 5 determines the communication protocol of the built-in RS-232C port. Setting Switch 5 to ON forces toolbus default programming protocols, ignoring settings defined in CX-Programmer's PLC Setup. Conversely, setting Switch 5 to OFF activates the customized serial parameters written to system memory.

Installation Guidelines
