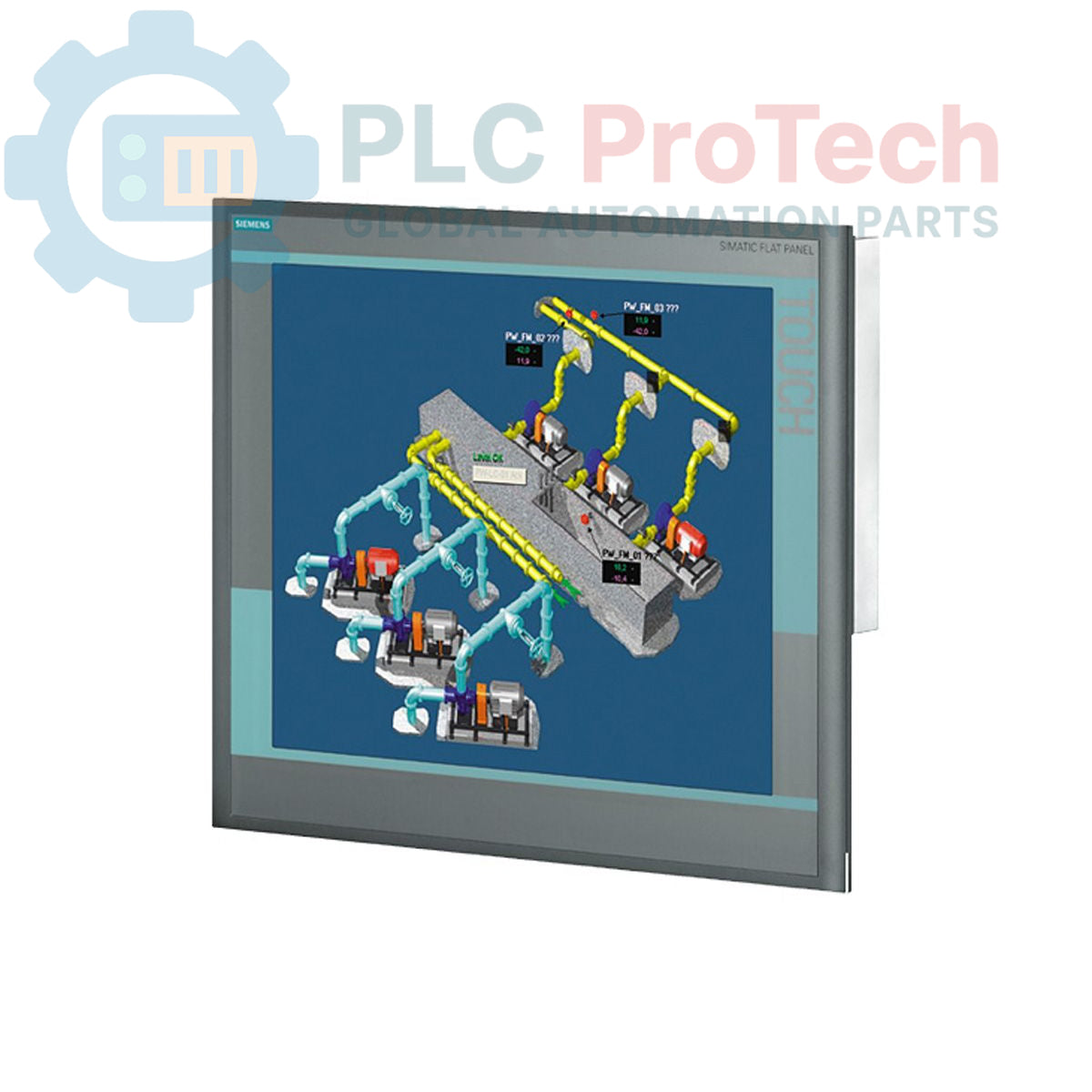

Siemens 6AV7861-3AB00-2AA0 SIMATIC Flat Panel 19

Description

This is a SIMATIC Flat Panel 19 from Siemens, model 6AV7861-3AB00-2AA0, designed for industrial visualization applications. It features a 19-inch TFT screen with a native resolution of 1280 x 1024 pixels. The unit offers flexible power options, supporting both 24 V DC and 120/240 V AC inputs. Connectivity is provided through standard VGA and DVI-D interfaces, ensuring compatibility with a wide range of industrial PCs and controllers. This model is supplied with a 1.8-meter VGA cable for immediate setup.

Features

• 19-inch Thin-Film Transistor (TFT) display
• 1280 x 1024 pixel screen resolution
• Dual power supply compatibility: 24 V DC and 120/240 V AC
• Standard video inputs: VGA and DVI-D
• Includes a 1.8 m VGA cable

Applications

• Machine-level Human Machine Interface (HMI)
• Process control and monitoring stations
• Industrial PC visualization
• Control room display panels
• Data acquisition and SCADA systems

Technical Specifications

Installation Guidelines

1. 1 Prepare Mounting Location: Verify the panel cutout dimensions match the monitor's requirements. Ensure the mounting surface is clean, flat, and can support the unit's weight (12.00 kg).
2. 2 Mount the Unit: Carefully insert the flat panel into the prepared cutout. Secure it using the appropriate mounting clamps and hardware, tightening evenly to the manufacturer's specified torque to ensure a proper seal.
3. 3 Connect Protective Earth (PE): Connect the chassis grounding terminal to the facility's protective earth system using a low-impedance conductor. This is a critical safety connection.
4. 4 Connect Power Supply: Connect the appropriate power source (24 V DC or 120/240 V AC) to the designated power input terminals. Ensure correct polarity for DC connections and proper line/neutral/ground for AC connections.
5. 5 Connect Video Signals: Connect the video source (e.g., Industrial PC) to either the VGA or DVI-D port on the monitor. Secure cable connectors firmly to prevent intermittent signal loss.
6. 6 Final Checks: After all connections are made, remove LOTO devices and apply power to the unit. Verify correct operation and display functionality before placing the system into service.
