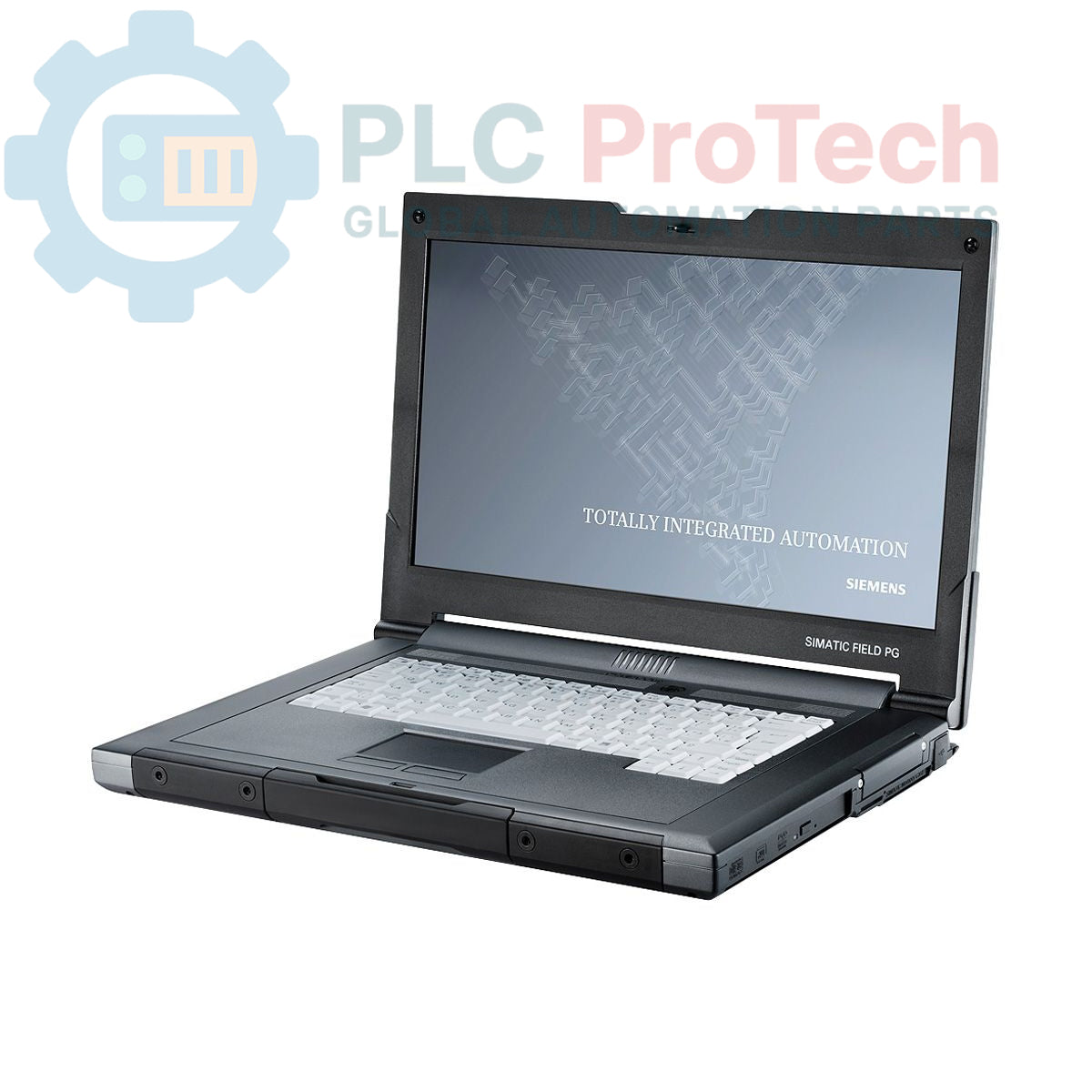

Siemens 6ES7715-1BB20-0AD0 SIMATIC Field PG M3 Programming Device

Description

The Siemens 6ES7715-1BB20-0AD0 is a SIMATIC Field PG M3 Premium model, a ruggedized portable computer designed for engineering, commissioning, and maintenance of industrial automation systems. This unit is configured with an Intel Core i5-520M 2.4 GHz processor, a 500 GB S-ATA HDD for storage, and a DL Multistandard DVD RW optical drive. It features a 15.6-inch Full HD (1920 x 1080) display for clear visualization of complex processes and programming environments. This specific configuration is supplied with a QWERTY keyboard with German layout and does not include the legacy S5 interface or S5 EPROMMER hardware.

Features

• Processor: Intel Core i5-520M operating at 2.4 GHz
• Storage: 500 GB S-ATA Hard Disk Drive
• Optical Drive: DL Multistandard DVD RW
• Display: 15.6-inch Full HD with 1920 x 1080 resolution
• Keyboard: QWERTY layout with German character set
• Product Line: Part of the SIMATIC Field PG M3 series

Applications

• PLC and HMI programming and configuration
• Commissioning of industrial control systems
• On-site diagnostics and troubleshooting
• System maintenance and software updates in factory environments
• Process visualization and monitoring

Technical Specifications

Installation Guidelines

1. 1 Place the Field PG on a stable, level surface with adequate clearance around ventilation openings to prevent overheating. Avoid areas with high levels of dust, moisture, or vibration.
2. 2 Connect the AC adapter to a properly grounded and surge-protected power outlet. Verify the power source is stable and within the device's specified voltage range before powering on.
3. 3 Before connecting any programming or communication cables (e.g., PROFIBUS, PROFINET), ensure the target PLC or device is in a safe state. Use only Siemens-approved cables with the correct pinout for the intended interface.
4. 4 Securely fasten all cable connections to prevent accidental disconnection during operation. Route cables away from high-traffic areas to avoid creating a tripping hazard and to protect them from physical damage.
