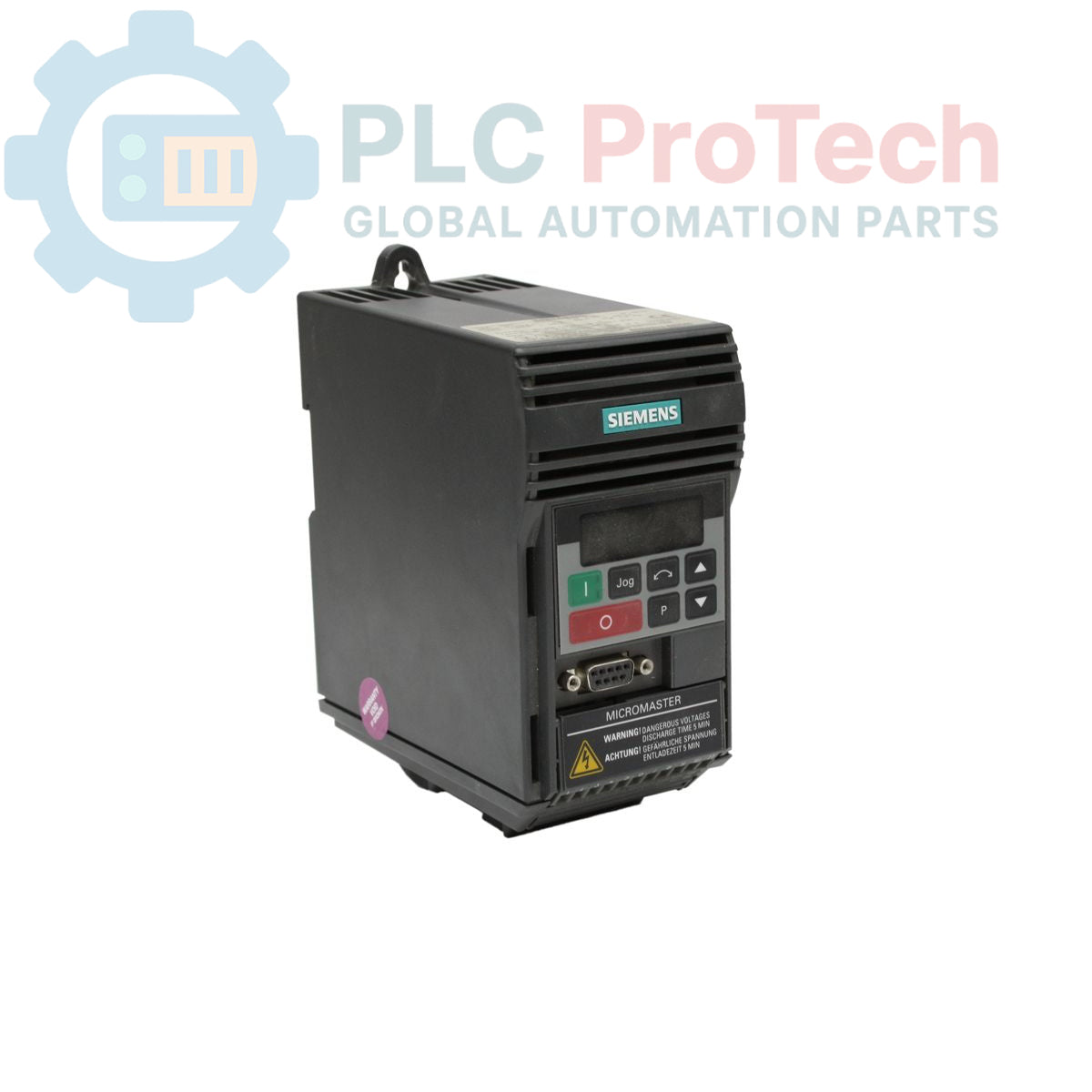

Siemens 6SE9213-6BA40 Micromaster MM75 Frequency Converter

Description

The 6SE9213-6BA40 is a Micromaster MM75 series frequency converter engineered for constant torque motor control applications. This drive is designed for single-phase 208–240 V AC (±10%) input at 50/60 Hz and provides a rated power output of 0.75 kW. It features an integrated Class A filter to meet EMC standards and offers a robust overload capacity of 150% for 60 seconds. Housed in an IP20-rated enclosure, the drive is built for reliable operation in industrial environments with ambient temperatures ranging from 0 degC to 50 degC.

Features

• Constant torque motor control capability
• Integrated Class A EMC filter for reduced interference
• Overload capacity of 150% for up to 60 seconds
• Compact dimensions for space-efficient cabinet mounting
• Robust IP20 protection rating for standard industrial environments

Applications

• Constant torque industrial machinery
• Material handling and small conveyor systems
• Industrial fan and pump control
• General-purpose industrial automation

Technical Specifications

Installation Guidelines

• Mounting: Install the frequency converter in a vertical position to allow for optimal airflow and cooling.
• Clearance: Ensure adequate ventilation space around the unit to prevent thermal buildup, keeping the ambient temperature within the 0 degC to 50 degC range.
• Wiring: Connect incoming power to the specified 1-phase input terminals; ensure all connections are secured to maintain low electrical resistance.
• Grounding: Establish a reliable earth connection to the drive chassis to ensure effective Class A filter performance and operational safety.
• Environment: Locate within a controlled cabinet or environment free from excessive moisture, conductive dust, or corrosive vapors.
