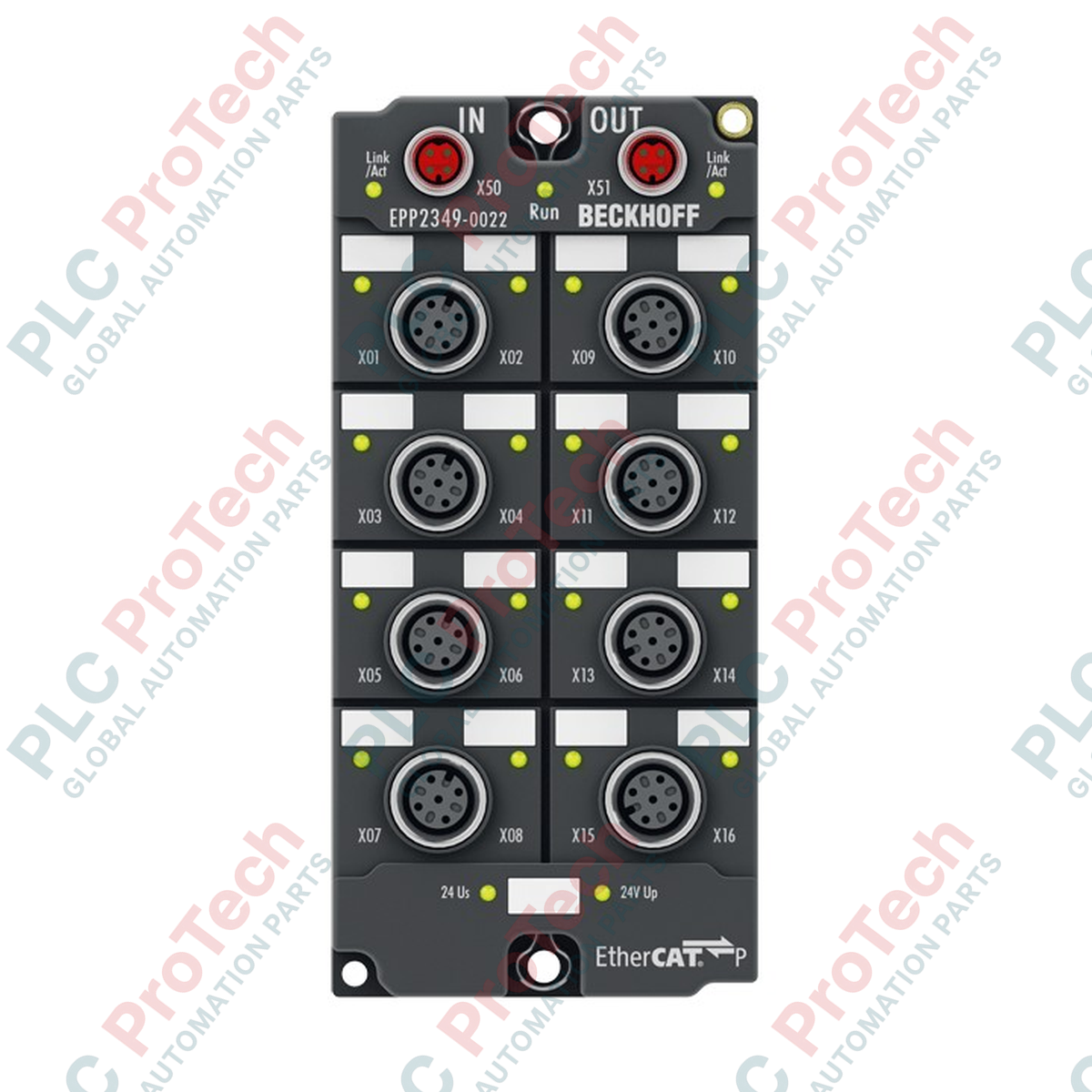

BECKHOFF EPP2349-0022 EtherCAT P Box

Description

Engineered for decentralized automation architectures, the Beckhoff EPP2349-0022 is a highly versatile, field-mountable EtherCAT P Box designed to manage bidirectional digital signals under demanding conditions. This module features 16 digital channels that are individually configurable as either inputs or outputs. By consolidating multiple signal types into a single unit, this module simplifies system topology, eliminates the need for separate dedicated input/output modules, and optimizes wiring configurations in machine control environments.

The EPP2349-0022 utilizes standard EtherCAT P technology, combining high-speed EtherCAT communication and unit/load power supply (Us and Up) into a single, specialized four-wire cable. This design streamlines installation, reduces cabling overhead, and allows for direct connection of external sensors and actuators via robust M12 connections, bypassing the requirement for a separate protective control cabinet.

Features

• 16 digital channels, individually configurable as digital inputs or digital outputs.
• Integrated EtherCAT P interface combining power and fieldbus communication in a single P-coded M8 connection.
• Robust IP67-rated housing optimized for direct machine installation without protective enclosures.
• Adjustable configuration complying with EN 61131-2 Type 1/3 physical input standards.
• Individually short-circuit proof outputs with a combined safety limit of 3 A.
• Fast internal input filtering and rapid switching characteristics for real-time application responsiveness.

Applications

• Automated assembly systems and packaging machinery.
• Intralogistics conveyor systems and material handling.
• Robotic end-of-arm tooling and end-effector control.
• Machine tool monitoring and decentralized sensor hubs.

Technical Specifications

Connections and Interfaces

Installation Guidelines

• Mounting: Secure the unit directly to machine framing or standard panels utilizing the integrated mounting holes. Fits variable installation positions.
• Shielding & Grounding: Ensure the functional ground connection is established cleanly to avoid electromagnetic interference. Use shielded cables for high-noise environments.
• Cabling: Maintain appropriate bend radiuses for all M8 P-coded and M12 connection cables to prevent mechanical stress on the sealed interfaces.
• Torque Limits: Hand-tighten all mating connectors to the specified torque limit to guarantee the IP67 protective seal without damaging the plastic threads.

Compliance and Certifications

• CE
• UL
