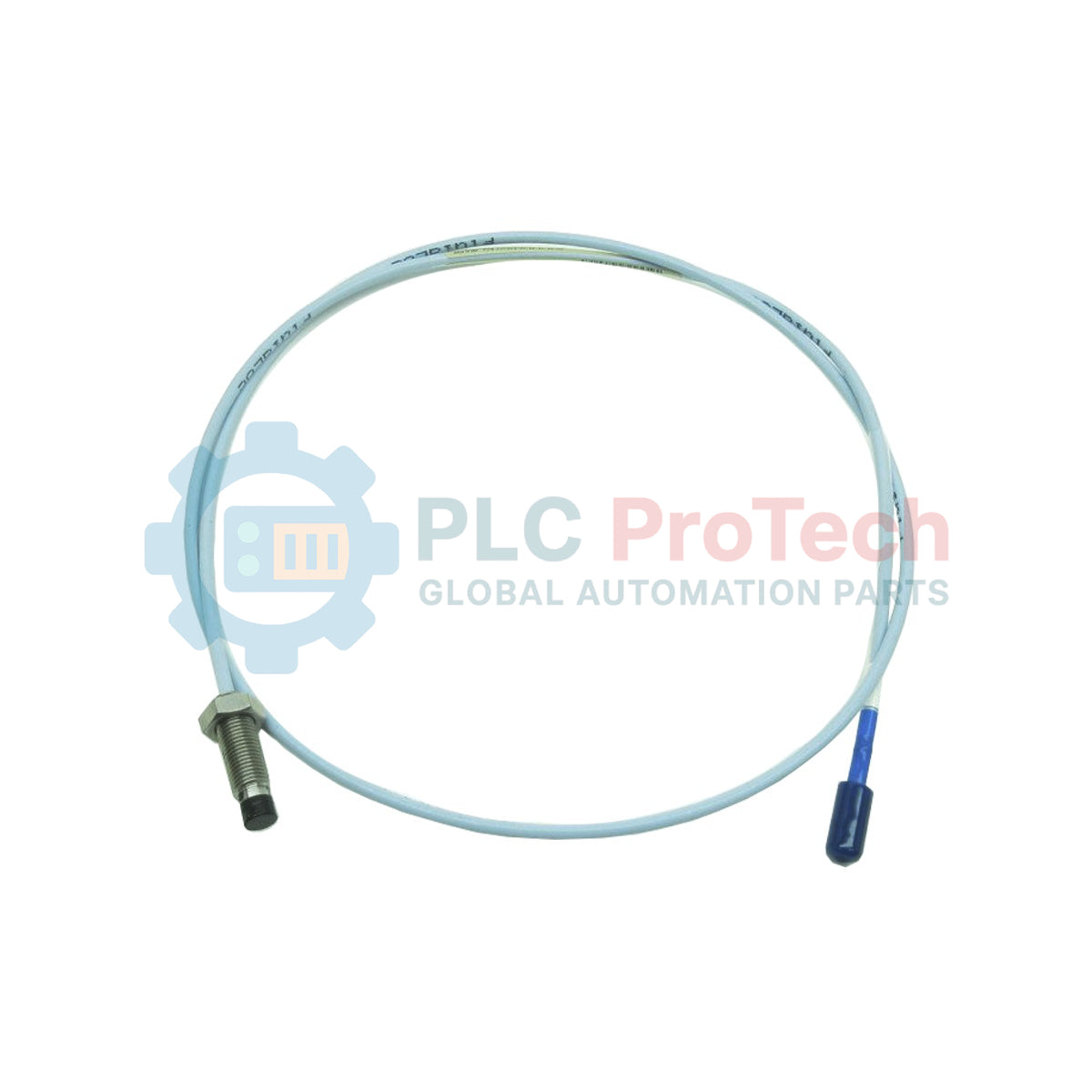

Bently Nevada 330101-00-27-10-02-CN 3300 XL 8 mm Proximity Probe

Stokta sadece 6 adet kaldı

Üretici: Bently Nevada
Ürün No.: 330101-00-27-10-02-CN
Menşei ülke:Amerika Birleşik Devletleri
Ürün Türü: Proximity Probes
Ödeme: T/T, Western Union
Ağırlık: 323g
Gönderim limanı: Xiamen
Garanti: 12 ay

Description

For continuous machinery protection and critical asset monitoring, the Bently Nevada 330101-00-27-10-02-CN operates as a ruggedized proximity probe within the industry-standard 3300 XL 8 mm transducer family. This non-contacting sensor measures static and dynamic distances between the probe tip and the observed target, facilitating precise shaft vibration, position, and speed measurements in demanding turbomachinery applications.

Engineered without protective armor, this model features a 3/8-24 UNF thread profile with a fully customizable mechanical configuration to match specific machine casing requirements. It interfaces seamlessly with 3300 XL extension cables and proximity transmitter or sensor systems to feed vibration analysis monitors, TSI systems, and distributed control systems (DCS).

Features

Non-contacting eddy current measurement principle for long-term reliability.
Robust PPS (polyphenylene sulfide) probe tip material for high chemical and thermal resistance.
AISI 303 and AISI 304 stainless steel probe case construction prevents corrosion.
Miniature coaxial ClickLoc connector provides secure, moisture-resistant connections.
High-temperature capability optimized for standard industrial and hazardous areas.

Applications

Steam and gas turbines
Centrifugal and axial compressors
Pumps, fans, and blowers
Hydroelectric generators
Industrial gearboxes and heavy rotating machinery

Technical Specifications

Manufacturer	Bently Nevada
Part Number/Model	330101-00-27-10-02-CN
Series	3300 XL 8 mm
Thread Profile	3/8-24 UNF thread (unarmored)
Unthreaded Length Option	0.0 in
Overall Case Length Option	2.7 in
Total Length Option	1.0 meter (3.3 feet)
Connector and Cable-Type Option	Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option	CN (Approvals country specific)
Probe Tip Material	Polyphenylene sulfide (PPS)
Probe Case Material	AISI 303 or 304 stainless steel (SST)
Operating and Storage Temperature	-51 degC to +177 degC (-60 degF to +351 degF)
Weight	0.323 kg
Country of Origin	United States

Connections and Interfaces

Connector Component	Function
ClickLoc Connector Pin	Signal input / output (coaxial core)
ClickLoc Outer Ring	Shield / Common ground reference

Installation Guidelines

Ensure proper calibration matching the specific target material (typically AISI 4140 steel) before final commission.
Observe minimum bend radius guidelines for coaxial cables during installation to prevent signal attenuation or physical damage.
Verify thread engagement and torque values to avoid damage to the 3/8-24 UNF casing.
Use appropriate electrical conduit and routing practices to protect standard cables from mechanical stress and electromagnetic interference (EMI).

Compliance and Certifications

CN Country-Specific Approvals

Model Number / Title	Condition	Availability	Action
Bently Nevada 330901-00-78-10-02-00 3300 XL NSv Yakınlık Probı	Original New	In Stock	View Details
Bently Nevada 330104-00-04-10-11-01 3300 XL 8 mm Yakınlık Probı	Original New	In Stock	View Details
Bently Nevada 330104-00-04-10-02-01 3300 XL 8 mm Yakınlık Probı	Original New	In Stock	View Details

Key Features:

#3300 XL Series #Proximity Probes

What is the mechanical configuration of the 330101-00-27-10-02-CN?

This 3300 XL 8 mm probe features a 3/8-24 UNF thread, a 0.0 in unthreaded length, a 2.7 in overall case length, a 1.0-meter total cable length, and an unarmored standard cable with a miniature coaxial ClickLoc connector.

What temperature range is this Bently Nevada probe rated for?

The operating and storage temperature range for this standard probe is -51 degC to +177 degC (-60 degF to +351 degF).

What target material is standard for the 3300 XL series?

The standard calibration target for 3300 XL 8 mm probes is AISI 4140 steel, which provides the specified linear scale factor and electrical performance.
