Bently Nevada 330103-00-09-05-02-00 3300 XL 8 mm Proximity Probe

Description

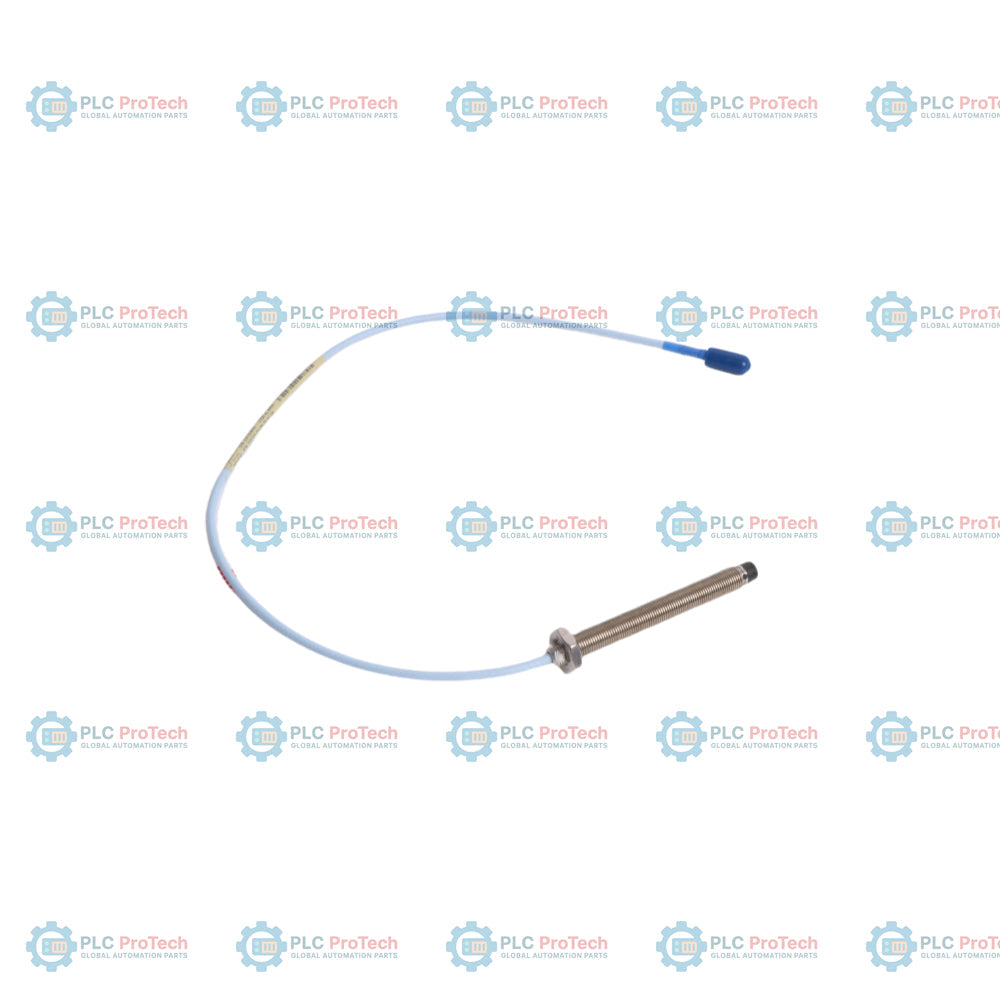

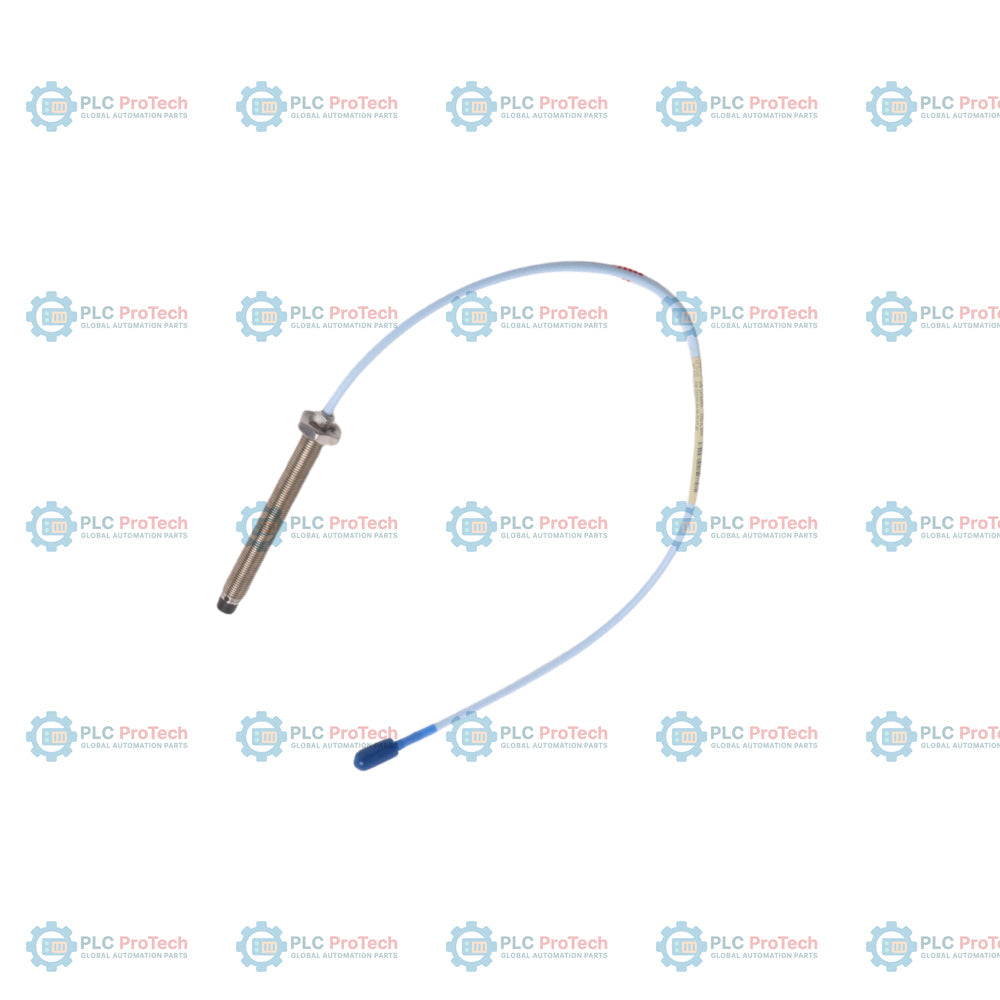

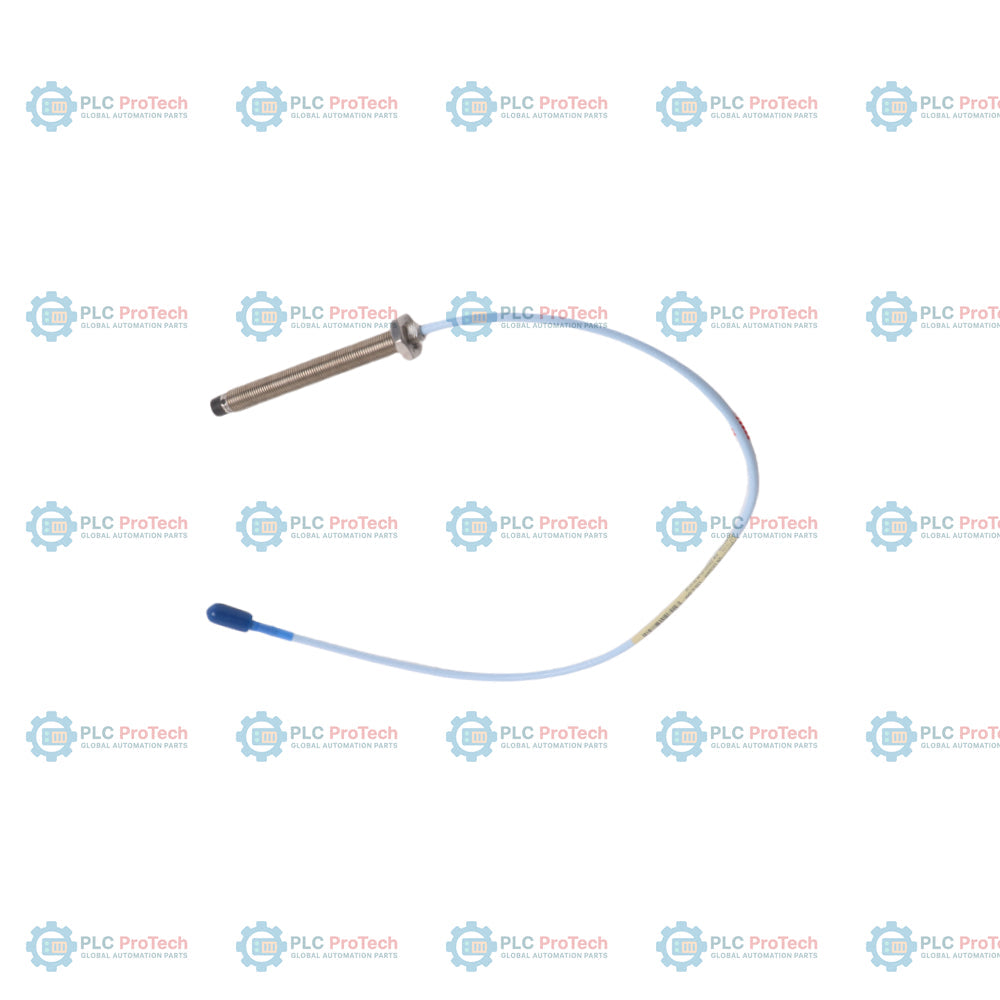

The 330103-00-09-05-02-00 is a Bently Nevada 3300 XL 8 mm metric proximity probe featuring an M10 x 1 thread without armor. This specific configuration is specified with a 0 mm unthreaded length (Option 00) and a 90 mm overall case length (Option 09), making the probe body fully threaded. It includes a 0.5 meter (1.6 feet) standard cable (Option 05) terminated with a miniature coaxial ClickLoc connector and is supplied without a connector protector (Option 02). This configuration is ordered with no agency approvals (Option 00) for standard non-hazardous environments.

Operating as an eddy-current transducer, this probe provides a nominal 2.0 mm (80 mils) linear range when paired with a matching 3300 XL Proximitor sensor and extension cable. The standard M10 x 1 thread allows direct casing installation on rotating machinery. Unlike armored configurations like the 330104 series or assemblies featuring FluidLoc fluid-barrier cables, this unarmored standard-cable model offers a simple and flexible mechanical installation profile suitable for clean environments and dry casings.

Features

• M10 x 1 metric thread design without stainless steel armor for direct machine housing installation
• Option 00 fully threaded probe body with 0 mm unthreaded length
• Option 09 provides a 90 mm overall case length for customized immersion depth
• Option 05 specifies a total probe length of 0.5 meters (1.6 feet)
• Option 02 utilizes a miniature coaxial ClickLoc connector without a connector protector
• Option 00 configuration is designated for standard, non-classified industrial environments without agency approvals
• Standard 8.0 mm probe tip diameter for consistent magnetic eddy-current coupling

Applications

This proximity probe is used for shaft vibration, axial position, and radial position monitoring in industrial rotating machinery. Typical applications include monitoring steam turbines, gas turbines, generators, centrifugal compressors, fans, and heavy-duty industrial pumps in electric power utilities, petrochemical plants, and natural gas transport facilities.

Ordering Information

Technical Specifications

Connections and Interfaces

Installation Guidelines

Do not exceed the maximum thread engagement length of 15 mm for M10 x 1 threads during installation to prevent probe casing binding. Maintain a minimum side-view clearance from adjacent structural metal equal to at least 3.0 times the probe tip diameter (24 mm). Tighten the ClickLoc coaxial connector only finger tight. Avoid routing the probe cable near high-voltage lines or sharp mechanical edges without standard protective conduit.

Compliance and Certifications

RoHS compliant, CE marked. For this configuration (Agency Approval Option 00), hazardous area certifications (such as ATEX, IECEx, or CSA) are not requested or included.
