Siemens 6AG1331-7NF10-2AB0 SIPLUS S7-300 Analog Giriş Modülü

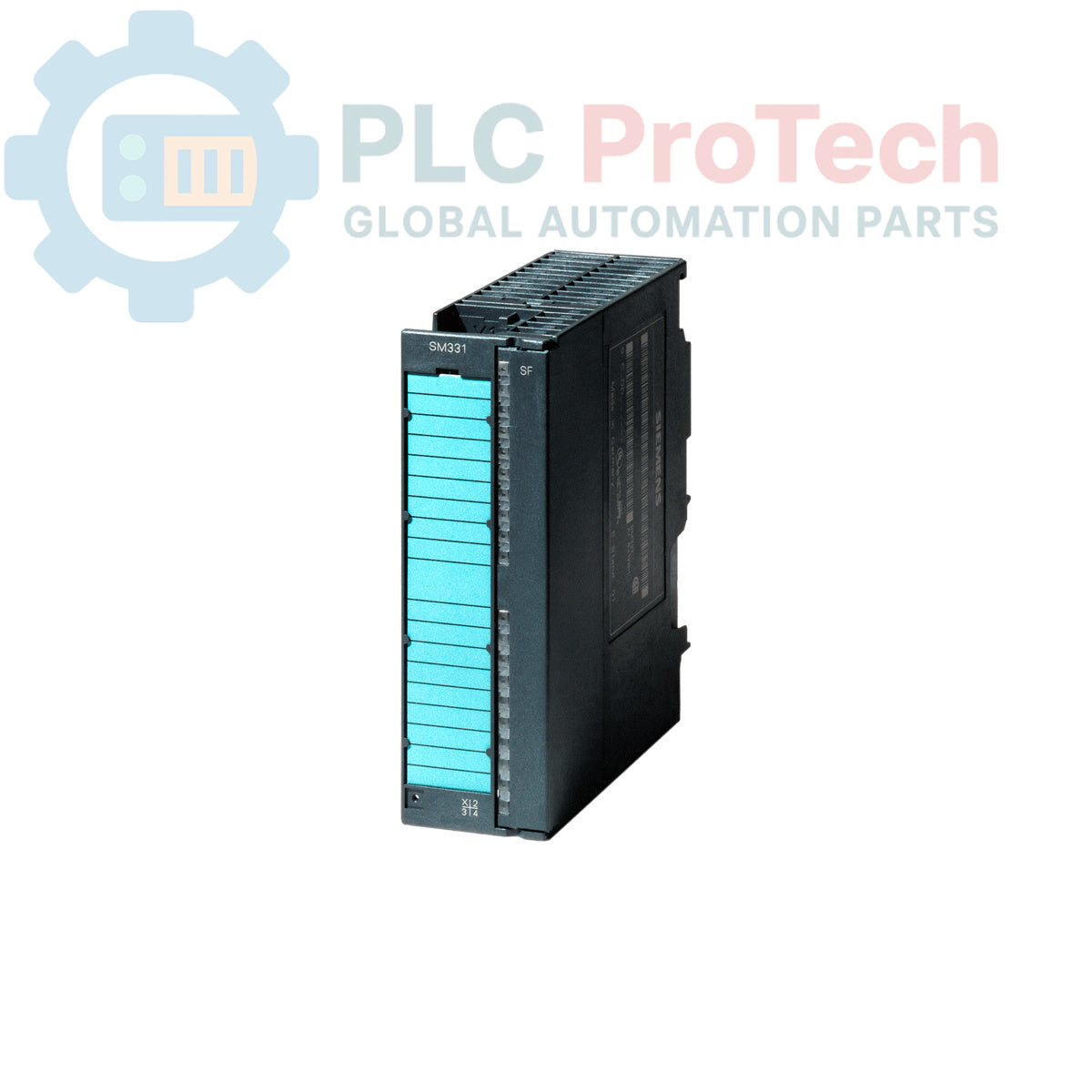

The 6AG1331-7NF10-2AB0 is a SIPLUS S7-300 SM 331 analog input module, technically based on the 6ES7331-7NF10-0AB0. This module is enhanced with a conformal coating to provide high reliability in demanding industrial environments, supporting an extended operating temperature range of -25 degC to +60 degC. It features 8 isolated analog inputs with 16-bit resolution, supporting various voltage and current signal types, and requires a 40-pole front connector for integration into the S7-300 automation system.

Features

• Robust Construction: Based on standard S7-300 technology with conformal coating for increased environmental resistance.

• Operating Temperature: Extended range from -25 degC to +60 degC.

• High Precision: 16-bit resolution for accurate signal processing.

• Input Flexibility: 8 isolated analog inputs supporting voltage (+/-5/10V, 1-5V) and current (+/-20mA, 0/4-20mA).

• Efficiency: Configurable conversion time (4-channel operation: 10 ms; 8-channel operation: 23-95 ms).

• Connectivity: 1x 40-pole connector interface.

Applications

• Process automation in harsh industrial environments

• Remote monitoring and data acquisition systems

• Oil and gas infrastructure automation

• Chemical and material processing control

• Outdoor or non-climate-controlled factory automation cabinets

Technical Specifications

Installation Guidelines

• Front Connector: Use a standard 40-pole front connector for wiring. Ensure all connections are secure to prevent intermittent signal errors.

• Grounding: Maintain proper shielding of analog signal cables. Connect cable shields to a common grounding point to minimize electromagnetic interference (EMI).

• Environment: The conformal coating provides protection against condensation and atmospheric pollution; however, avoid direct contact with corrosive agents or extreme moisture.

• Configuration: Adjust the software parameters within the S7-300 configuration to match the channel operation speed (4-channel vs 8-channel) based on process requirements
