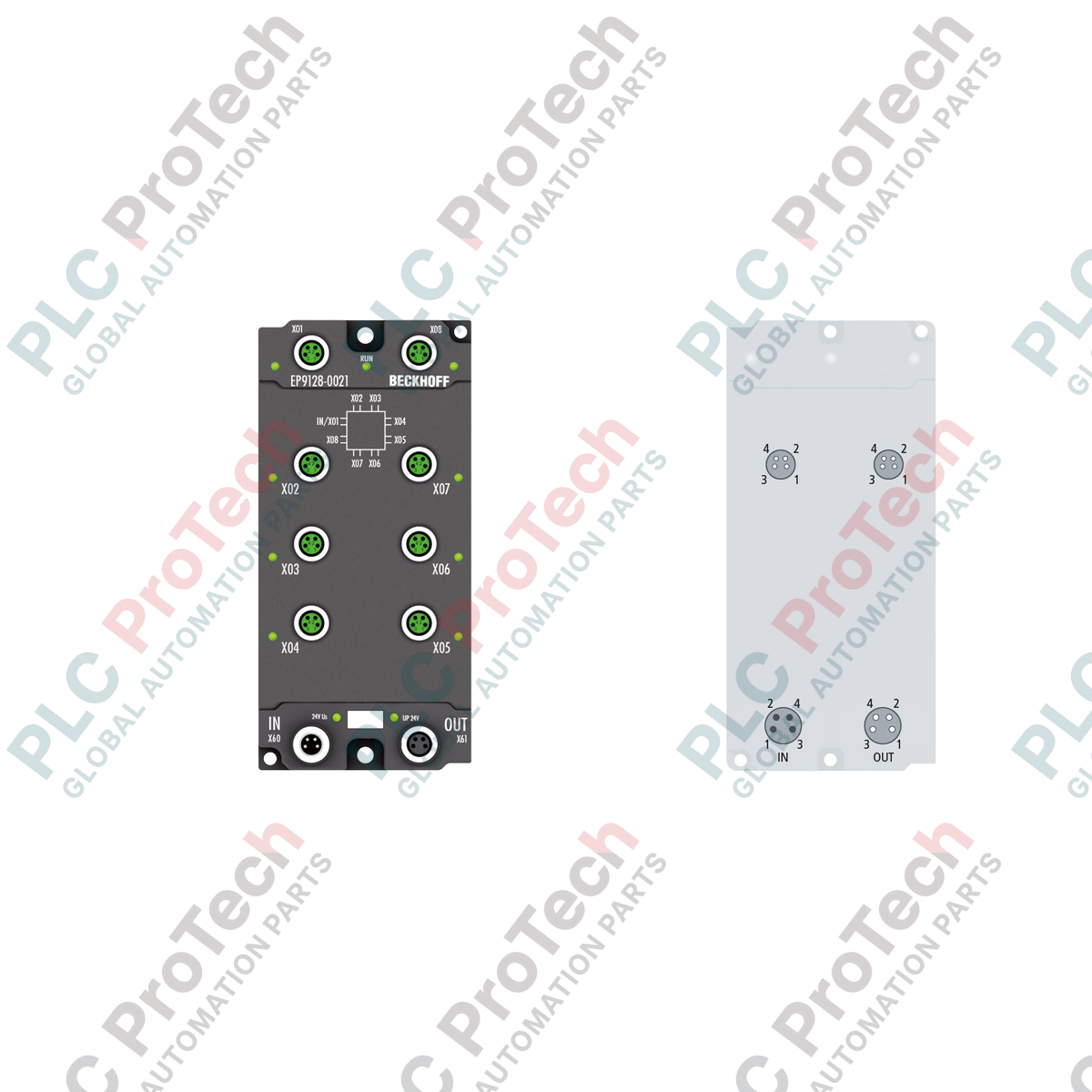

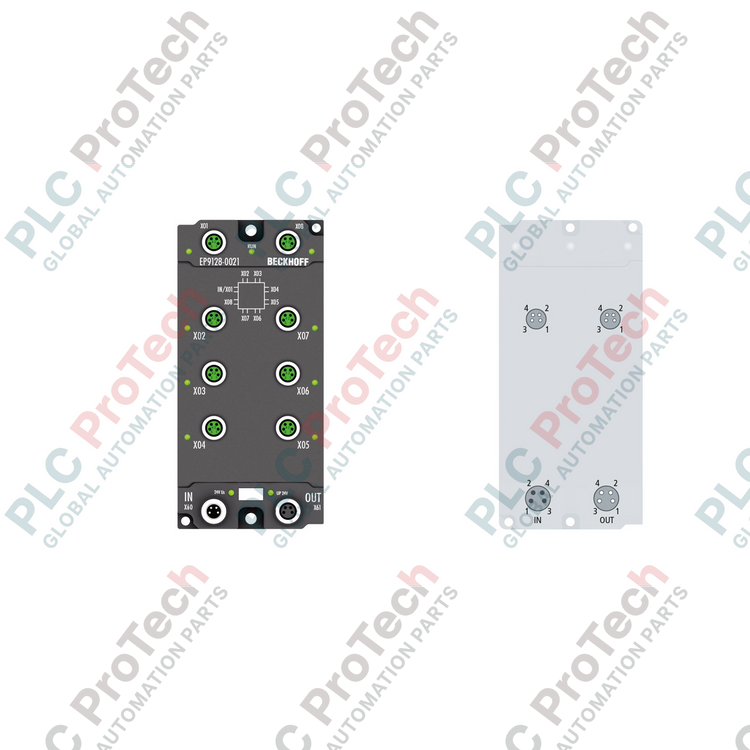

BECKHOFF EP9128-0021 EtherCAT tarmoq taqsimlagichi

SKU EP9128-0021

In stock
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: BECKHOFF
  • Product No.: EP9128-0021
  • Origin Germany
  • Product Type: EtherCAT ulanish qutilari
  • Payment: T/T, Western Union
  • Weight: 0.3 kg
  • Dimensions: 60 mm x 126 mm x 26.5 mm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

EtherCAT Box EtherCAT Junctions
Quantity
Call sales Contact

Product Description

Tavsif

BECKHOFF EP9128-0021 murakkab sanoat muhitlarida EtherCAT topologiyalarini tarmoqlash uchun mo‘ljallangan 8 portli EtherCAT ulanish modulidir. Ushbu EtherCAT Box himoya boshqaruv shkaflariga bo‘lgan ehtiyojni bartaraf etib, kabel sarfini kamaytirgan holda liniya, yulduz yoki daraxt topologiyalarini bevosita ish maydonida sozlash imkonini beradi. U standart ekranlangan M8 ulanishlaridan foydalanib, EtherCAT signalini sakkiztagacha alohida ulanish nuqtasiga taqsimlaydi.

Ixcham poliamid korpusga joylashtirilgan BECKHOFF EP9128-0021 IP65/66/67 himoya darajasi bilan tashqi muhit ta’sirlariga mukammal chidamlilikni ta’minlaydi. Uning markazlashtirilmagan dizayni har bir port uchun taxminan 1 mikrosekundlik minimal tarqalish kechikishi bilan 100 Mbit/s gacha tezlikda sanoat ma’lumotlarini uzatishni qo‘llab-quvvatlaydi. Bu uni fieldbus tugunlari keng tarqalgan murakkab mashina konfiguratsiyalari uchun mos qiladi.

Xususiyatlari

  • Moslashuvchan yulduz, daraxt yoki liniya topologiyasini taqsimlash uchun 8 portli EtherCAT ulanish moduli.
  • Mexanik zo‘riqish sharoitida ishonchli signal uzatishni ta’minlovchi ekranlangan M8 ulanish texnologiyasi.
  • Fast Ethernet standartlariga muvofiq 100 Mbit/s tezlikdagi yuqori tezkor ma’lumot uzatish.
  • Har bir port uchun taxminan 1 mikrosekundlik past tarqalish kechikishi.
  • Yuqori himoya darajasi (IP65, IP66 va IP67) boshqaruv shkaflarisiz to‘g‘ridan-to‘g‘ri mashinaga o‘rnatish imkonini beradi.
  • Oldindan parmalangan mahkamlash teshiklariga ega ixcham, joyni tejovchi PA6 poliamid korpus.

Qo‘llanilish sohalari

  • Modulli ishlab chiqarish mashinalari uchun markazlashtirilmagan fieldbus topologiyasini loyihalash.
  • Qadoqlash, yig‘ish va materiallarni tashish tizimlarida EtherCAT tarmoqlarini yulduzsimon tarmoqlash.
  • Kuchli tebranish yoki yuvib tozalash sharoitlarida dala darajasidagi sensor/aktuator integratsiyasi.
  • Aloqa stansiyalari o‘rtasida 100 metrgacha bo‘lgan uzoq masofalarda taqsimlangan tarmoq marshrutizatsiyasi.

Texnik spetsifikatsiyalar

Parametr Spetsifikatsiya
Tizim va aloqa
Protokol EtherCAT
Tizimdagi vazifa EtherCAT ulanishlarini birlashtirish
Ma’lumot uzatish tezligi 100 Mbit/s
Kechikish vaqti Har bir port uchun taxminan 1 mikrosekund
Ma’lumot uzatish muhiti Ethernet/EtherCAT kabeli (kamida 5-toifali), ekranlangan
Stansiyalar orasidagi masofa Maksimal 100 metr (100BASE-TX)
Elektr talablari
Nominal quvvat ta’minoti 24 V DC (-15% / +20%)
Tok iste’moli (24 V DC) Taxminan 150 mA
Fizik va ulanish tafsilotlari
Shina interfeysi 8 x M8 rozetka, ekranlangan, vintli
Ulash usuli M8, vintli, 4 kontaktli
O‘lchamlari (W x B x Ch) 60 mm x 126 mm x 26,5 mm
Korpus materiali PA6 (poliamid)
Korpus materiali Taxminan 300 g
Atrof-muhit va muvofiqlik
Ishlash harorati diapazoni -25 dan +60 darajagacha Selsiy
Saqlash harorati diapazoni -40 dan +85 darajagacha Selsiy
Himoya darajasi IP65, IP66, IP67 (EN 60529 standartiga muvofiq)
Tebranish / zarbaga chidamlilik EN 60068-2-6 / EN 60068-2-27 standartlariga muvofiq
EMC barqarorligi / emissiyasi EN 61000-6-2 / EN 61000-6-4 standartlariga muvofiq
Tasdiqlar va belgilar CE, UL

Ulanishlar / interfeyslar

Interfeys turi Funksiya
8 x M8 rozetka (vintli, 4 kontaktli) Kiruvchi va chiquvchi aloqa yo‘llari uchun ekranlangan EtherCAT tarmoqlagich portlari
Quvvat ta’minoti ulanishlari Mantiqiy va sensor quvvat ta’minoti uchun maydon tomondan kirish

O‘rnatish bo‘yicha ko‘rsatmalar

  1. Qurilmani o‘rnatish yoki simlarini ulashdan oldin tizim quvvat manbai to‘liq o‘chirilganiga ishonch hosil qiling.
  2. Modulni o‘rnatilgan mahkamlash teshiklaridan foydalanib, bevosita mashina ramasi yoki montaj plastinasiga mahkam o‘rnating (M3 vintlari uchun 2 ta 3,5 mm teshik yoki M4 vintlari uchun 2 ta 4,5 mm teshik).
  3. Elektromagnit xalaqitlarning oldini olish uchun faqat sanoatdagi M8 vintli ulagichlarga mos, ekranlangan, 5-toifali (yoki undan yuqori) Ethernet/EtherCAT kabellaridan foydalaning.
  4. IP65/66/67 atrof-muhitdan himoyalanish standartini ta’minlash uchun barcha M8 ulagichlari nominal moment bilan mahkamlanganiga ishonch hosil qiling.
  5. Tizimni quvvatlantirishdan oldin qutblanishning to‘g‘riligini (24 V DC) tekshirib, ta’minot kuchlanishini belgilangan quvvat pinlariga ulang.
  6. Tizimni dastlab ishga tushirish vaqtida o‘rnatilgan diagnostika LED indikatorlari yordamida aloqa holatini tekshiring.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the primary function of the BECKHOFF EP9128-0021?
The BECKHOFF EP9128-0021 is an 8-port EtherCAT junction box designed to branch a standard line topology into a star or tree topology directly in the field, eliminating the need for a control cabinet.
What connector type does the BECKHOFF EP9128-0021 use for its bus interfaces?
The BECKHOFF EP9128-0021 uses eight shielded, 4-pin M8 screw-type sockets for its EtherCAT junction connections to ensure secure data transmission under mechanical strain.
Does the BECKHOFF EP9128-0021 require configuration in TwinCAT?
No, the BECKHOFF EP9128-0021 operates as a transparent junction unit within the EtherCAT network and does not require complex software configuration to distribute the signals.
What are the environmental ratings of the BECKHOFF EP9128-0021?
The BECKHOFF EP9128-0021 is rated IP65, IP66, and IP67, making it highly resistant to dust, water jets, and temporary immersion, suitable for mounting directly onto machines in harsh industrial environments.
What is the signal transmission delay through the BECKHOFF EP9128-0021?
The BECKHOFF EP9128-0021 introduces a very low propagation delay of approximately 1 microsecond per port, preserving high-speed synchronization across the EtherCAT network.
Reviews

More from this brand

ABB 3BSE008546R2 AO820-eA S800 analog chiqish moduli
1SAP131000R0278 PM5630-2ETHABB 3BSE008546R2 AO820-eA S800 analog chiqish moduli
ABB 3BSE008546R2 AO820-eA S800 analog chiqish moduli
DSQC351 3HNE00006-1ABB 3BSE008546R2 AO820-eA S800 analog chiqish moduli
ABB 3BSE008546R2 AO820-eA S800 analog chiqish moduli
3BSE008544R2 AI820-eAABB 3BSE008546R2 AO820-eA S800 analog chiqish moduli
ABB 3BSE008546R2 AO820-eA S800 analog chiqish moduli
8VZZ000167H1 DO05ABB 3BSE008546R2 AO820-eA S800 analog chiqish moduli

EP9128-0021

Stock & lead time on request

Call
  • EP9128-0021
1 1

BECKHOFF EP9128-0021 EtherCAT tarmoq taqsimlagichi

Only 10 item(s) left in stock

  • Manufacturer: BECKHOFF

  • Product No.: EP9128-0021

  • Country of origin:Germany

  • Product Type: EtherCAT ulanish qutilari

  • Payment: T/T, Western Union

  • Weight: 300g

  • Dimensions: 60 mm x 126 mm x 26.5 mm

  • Shipping port: Xiamen

  • Warranty: 12 months

View full details
Product Description
FAQ
Shipping Returns
Additional details
Reviews

Tavsif

BECKHOFF EP9128-0021 murakkab sanoat muhitlarida EtherCAT topologiyalarini tarmoqlash uchun mo‘ljallangan 8 portli EtherCAT ulanish modulidir. Ushbu EtherCAT Box himoya boshqaruv shkaflariga bo‘lgan ehtiyojni bartaraf etib, kabel sarfini kamaytirgan holda liniya, yulduz yoki daraxt topologiyalarini bevosita ish maydonida sozlash imkonini beradi. U standart ekranlangan M8 ulanishlaridan foydalanib, EtherCAT signalini sakkiztagacha alohida ulanish nuqtasiga taqsimlaydi.

Ixcham poliamid korpusga joylashtirilgan BECKHOFF EP9128-0021 IP65/66/67 himoya darajasi bilan tashqi muhit ta’sirlariga mukammal chidamlilikni ta’minlaydi. Uning markazlashtirilmagan dizayni har bir port uchun taxminan 1 mikrosekundlik minimal tarqalish kechikishi bilan 100 Mbit/s gacha tezlikda sanoat ma’lumotlarini uzatishni qo‘llab-quvvatlaydi. Bu uni fieldbus tugunlari keng tarqalgan murakkab mashina konfiguratsiyalari uchun mos qiladi.

Xususiyatlari

  • Moslashuvchan yulduz, daraxt yoki liniya topologiyasini taqsimlash uchun 8 portli EtherCAT ulanish moduli.
  • Mexanik zo‘riqish sharoitida ishonchli signal uzatishni ta’minlovchi ekranlangan M8 ulanish texnologiyasi.
  • Fast Ethernet standartlariga muvofiq 100 Mbit/s tezlikdagi yuqori tezkor ma’lumot uzatish.
  • Har bir port uchun taxminan 1 mikrosekundlik past tarqalish kechikishi.
  • Yuqori himoya darajasi (IP65, IP66 va IP67) boshqaruv shkaflarisiz to‘g‘ridan-to‘g‘ri mashinaga o‘rnatish imkonini beradi.
  • Oldindan parmalangan mahkamlash teshiklariga ega ixcham, joyni tejovchi PA6 poliamid korpus.

Qo‘llanilish sohalari

  • Modulli ishlab chiqarish mashinalari uchun markazlashtirilmagan fieldbus topologiyasini loyihalash.
  • Qadoqlash, yig‘ish va materiallarni tashish tizimlarida EtherCAT tarmoqlarini yulduzsimon tarmoqlash.
  • Kuchli tebranish yoki yuvib tozalash sharoitlarida dala darajasidagi sensor/aktuator integratsiyasi.
  • Aloqa stansiyalari o‘rtasida 100 metrgacha bo‘lgan uzoq masofalarda taqsimlangan tarmoq marshrutizatsiyasi.

Texnik spetsifikatsiyalar

Parametr Spetsifikatsiya
Tizim va aloqa
Protokol EtherCAT
Tizimdagi vazifa EtherCAT ulanishlarini birlashtirish
Ma’lumot uzatish tezligi 100 Mbit/s
Kechikish vaqti Har bir port uchun taxminan 1 mikrosekund
Ma’lumot uzatish muhiti Ethernet/EtherCAT kabeli (kamida 5-toifali), ekranlangan
Stansiyalar orasidagi masofa Maksimal 100 metr (100BASE-TX)
Elektr talablari
Nominal quvvat ta’minoti 24 V DC (-15% / +20%)
Tok iste’moli (24 V DC) Taxminan 150 mA
Fizik va ulanish tafsilotlari
Shina interfeysi 8 x M8 rozetka, ekranlangan, vintli
Ulash usuli M8, vintli, 4 kontaktli
O‘lchamlari (W x B x Ch) 60 mm x 126 mm x 26,5 mm
Korpus materiali PA6 (poliamid)
Korpus materiali Taxminan 300 g
Atrof-muhit va muvofiqlik
Ishlash harorati diapazoni -25 dan +60 darajagacha Selsiy
Saqlash harorati diapazoni -40 dan +85 darajagacha Selsiy
Himoya darajasi IP65, IP66, IP67 (EN 60529 standartiga muvofiq)
Tebranish / zarbaga chidamlilik EN 60068-2-6 / EN 60068-2-27 standartlariga muvofiq
EMC barqarorligi / emissiyasi EN 61000-6-2 / EN 61000-6-4 standartlariga muvofiq
Tasdiqlar va belgilar CE, UL

Ulanishlar / interfeyslar

Interfeys turi Funksiya
8 x M8 rozetka (vintli, 4 kontaktli) Kiruvchi va chiquvchi aloqa yo‘llari uchun ekranlangan EtherCAT tarmoqlagich portlari
Quvvat ta’minoti ulanishlari Mantiqiy va sensor quvvat ta’minoti uchun maydon tomondan kirish

O‘rnatish bo‘yicha ko‘rsatmalar

  1. Qurilmani o‘rnatish yoki simlarini ulashdan oldin tizim quvvat manbai to‘liq o‘chirilganiga ishonch hosil qiling.
  2. Modulni o‘rnatilgan mahkamlash teshiklaridan foydalanib, bevosita mashina ramasi yoki montaj plastinasiga mahkam o‘rnating (M3 vintlari uchun 2 ta 3,5 mm teshik yoki M4 vintlari uchun 2 ta 4,5 mm teshik).
  3. Elektromagnit xalaqitlarning oldini olish uchun faqat sanoatdagi M8 vintli ulagichlarga mos, ekranlangan, 5-toifali (yoki undan yuqori) Ethernet/EtherCAT kabellaridan foydalaning.
  4. IP65/66/67 atrof-muhitdan himoyalanish standartini ta’minlash uchun barcha M8 ulagichlari nominal moment bilan mahkamlanganiga ishonch hosil qiling.
  5. Tizimni quvvatlantirishdan oldin qutblanishning to‘g‘riligini (24 V DC) tekshirib, ta’minot kuchlanishini belgilangan quvvat pinlariga ulang.
  6. Tizimni dastlab ishga tushirish vaqtida o‘rnatilgan diagnostika LED indikatorlari yordamida aloqa holatini tekshiring.
Loading product navigation…
Key Features:
#EtherCAT Box #EtherCAT Junctions

What is the primary function of the BECKHOFF EP9128-0021?
The BECKHOFF EP9128-0021 is an 8-port EtherCAT junction box designed to branch a standard line topology into a star or tree topology directly in the field, eliminating the need for a control cabinet.

What connector type does the BECKHOFF EP9128-0021 use for its bus interfaces?
The BECKHOFF EP9128-0021 uses eight shielded, 4-pin M8 screw-type sockets for its EtherCAT junction connections to ensure secure data transmission under mechanical strain.

Does the BECKHOFF EP9128-0021 require configuration in TwinCAT?
No, the BECKHOFF EP9128-0021 operates as a transparent junction unit within the EtherCAT network and does not require complex software configuration to distribute the signals.

What are the environmental ratings of the BECKHOFF EP9128-0021?
The BECKHOFF EP9128-0021 is rated IP65, IP66, and IP67, making it highly resistant to dust, water jets, and temporary immersion, suitable for mounting directly onto machines in harsh industrial environments.

What is the signal transmission delay through the BECKHOFF EP9128-0021?
The BECKHOFF EP9128-0021 introduces a very low propagation delay of approximately 1 microsecond per port, preserving high-speed synchronization across the EtherCAT network.

Global Express Shipping

  • Standard Delivery: 4-6 Business Days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries, including rapid delivery to Saudi Arabia and UAE.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our professional technical warranty.

Orders are processed and delivered Monday-Friday (excluding public holidays).


For full eligibility, restocking fees, and international return details, please view our official Refund & Return Policy .
