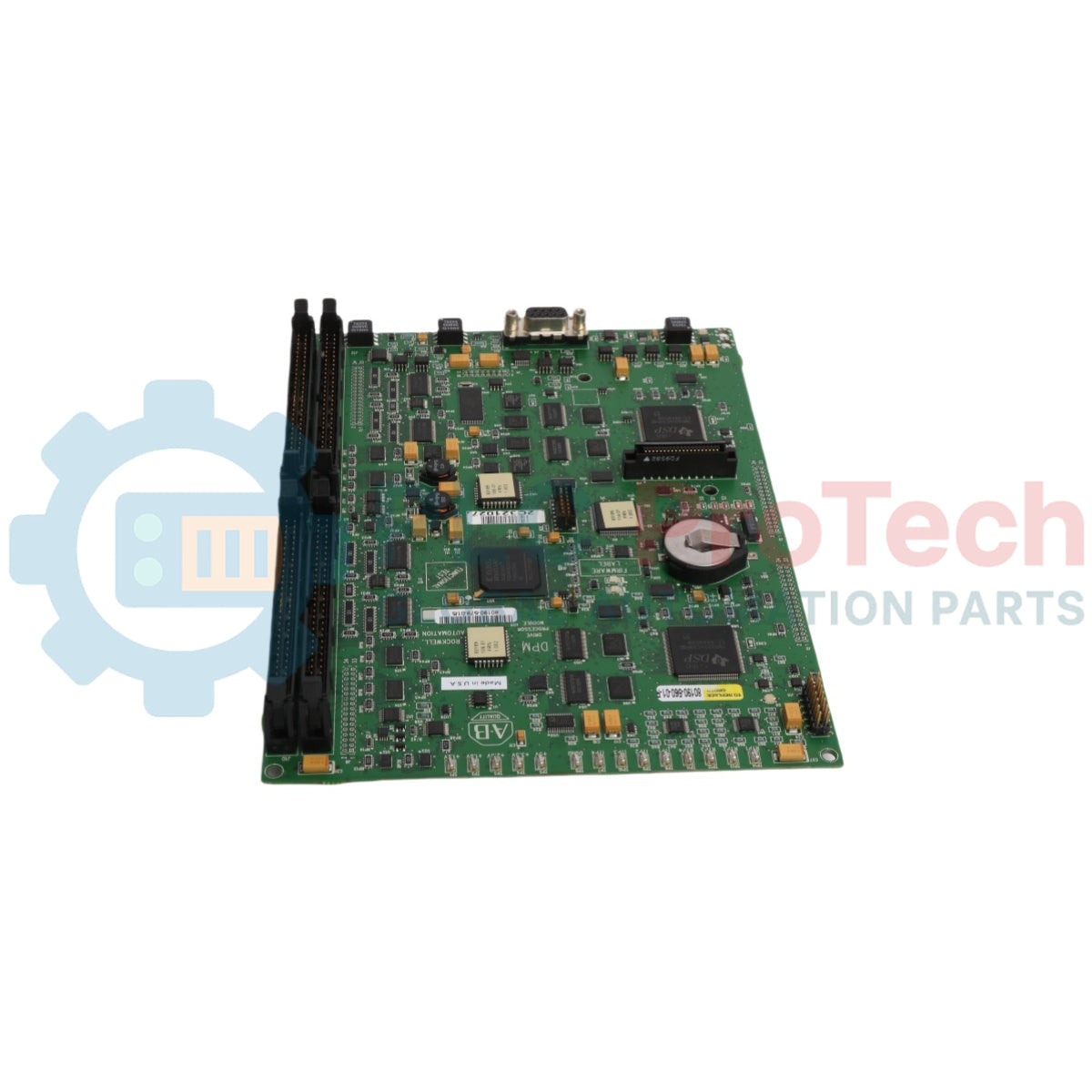

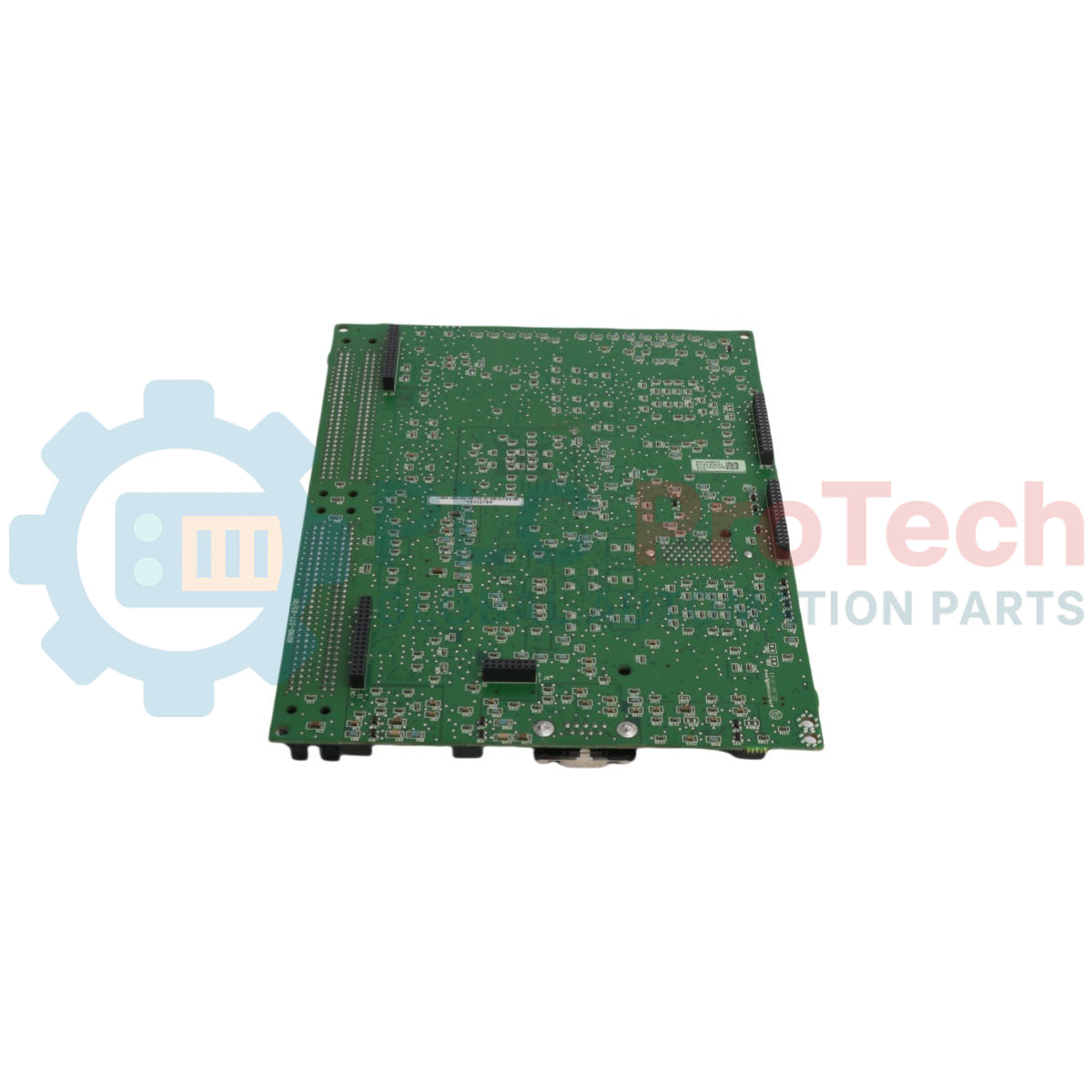

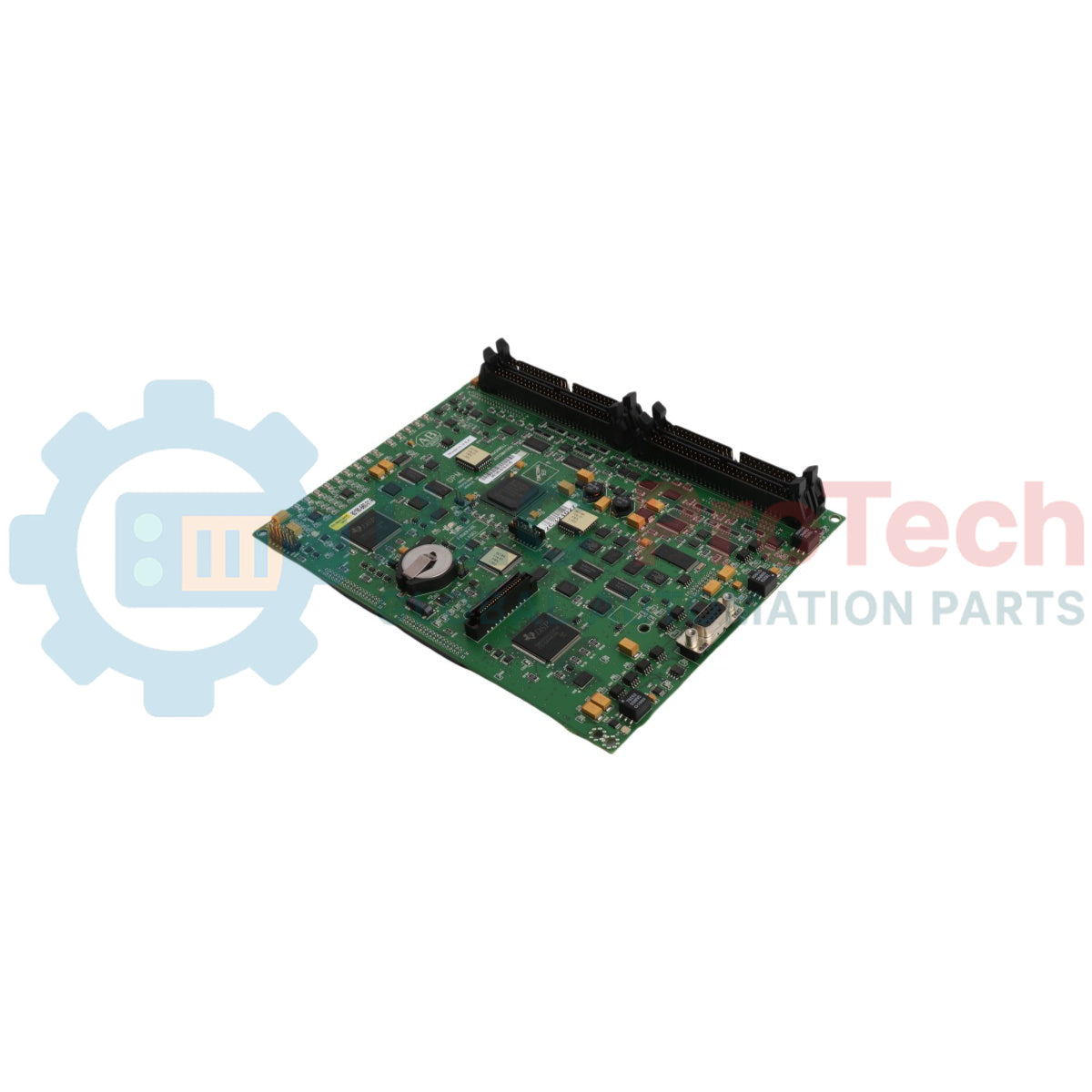

Allen-Bradley PowerFlex 7000 80190-560-01-R Analog Control Board for 18 Pulse Drive

Description

The Allen-Bradley 80190-560-01-R is a hardware-specific Analog Control Board (ACB) configured exclusively for standard integration within Bulletin 7000A, 7000, and 7000L PowerFlex 7000 Medium Voltage AC Drive systems operating a dedicated 18-Pulse rectifier topology. Rather than functioning as a generic interface, this board executes hardware-level parameter monitoring unique to multi-bridge high-power configurations, serving as the localized analog tracking hub inside the drive's control cabinet.

The core technical utility of the 80190-560-01-R involves real-time electrical health tracking and mechanical cooling diagnostic feedback. It incorporates dedicated circuits to manage lines from up to four separate internal AC/DC power supply units, continuously evaluating threshold levels for automated AC Fail and DC Fail event logging. Simultaneously, the board delivers calibrated excitation voltage loops to differential pressure transducers on the cooling fan stacks, evaluating airflow continuity, and monitors operational parameters across slave bridge networks to enforce strict current balance and phase alignment during high-inertia synchronous transfer cycles.

Features

• Built exclusively for direct slot-in alignment with Allen-Bradley PowerFlex 7000 18-Pulse medium voltage drive structures.
• Quad-channel monitoring architecture designed to manage feedback from up to 4 independent internal power supplies simultaneously.
• Low-drift analog signal processing rails for preventing high-resistance sensor reading errors or false system trips.
• Onboard diagnostic loop power supplying +15V DC excitation line directly to cooling stack differential pressure transducers.
• Hardware-level fault generation logic configured for instant activation during AC Line or DC bus voltage drops.
• Complete multi-pin plug compatibility with the core Drive Processor Module (DPM) backplane array.

Applications

• Multi-bridge slave rectifier phase sequencing and current balance verification in 18-Pulse drive frameworks.
• Real-time cabin cooling fan health monitoring using localized differential air pressure transducer inputs.
• Power supply drop monitoring and fault isolation within medium voltage motor control centers (MCC).
• High-power synchronous transfer operations requiring precise analog feedback scaling.

Technical Specifications

Connections / Interfaces

Installation Guidelines

• ESD Handling Mandate: Personnel must wear a verified, grounded ESD wrist strap before touching board components to eliminate static damage risks on precision A/D operational amplifiers.
• Control Feed De-Energization: Isolate all incoming medium voltage feeds and completely disconnect low-voltage 120V AC / 56V DC control links prior to physical circuit board removal.
• Plug Seating Verification: Ensure terminal blocks (J1, J9, J15, and J18–J21) are fully driven into position and latched to avoid terminal contact offsets or un-commanded drive faults.
• Signal Cable Separation: Route low-voltage analog wiring linked to connector J9 entirely clear of high-voltage power components or SGCT gate firing paths to mitigate EMI noise induction.
• System Parameter Check: Perform a parameter matching verification via the operator terminal post-installation to ensure new board characteristics correlate seamlessly with the active DPM firmware profile.

FAQ

Why can this board only be deployed in 18-Pulse PowerFlex 7000 drive systems?

The board is physically layout-configured with specialized tracking circuits for multi-bridge rectifier feedback, making it incompatible with standard 6-Pulse or PWM topologies.

What specific hardware limit triggers an AC input failure on this control board?

The integrated voltage tracking loop will initiate an AC Fail code immediately when the sampled input control line drops beneath 85V RMS.

Where exactly is the internal 120V AC diagnostic loop wired into the board?

The 120V AC diagnostic line connects directly to the drive terminal layer via pins 14 and 15 on connector block J1.

At what minimum threshold does the board flag an internal power supply DC failure?

A hardware-level DC Fail is executed if any monitored power line drops below 49V DC.

Which onboard connector terminal handles the primary 56V DC drive control bus checking?

The nominal 56V DC drive control bus is checked directly via pins 1 and 2 on the J15 connector interface.

Can the 80190-560-01-R power an airflow transducer without external auxiliary supplies?

Yes, the board features a built-in loop power circuit providing +15V DC via terminal J9 explicitly for cabinet differential pressure transducers.

What underlying component issue results in a RecAnlg SelfTest fault at drive initialization?

This fault indicates that during power-up automated checks, the board's internal analog scaling paths detected a DC offset that exceeded programmed tolerances.

Is it safe to swap this board with an 80190-560-02-R module during maintenance?

No, the -02-R variant features distinct circuit layouts mapped for alternative drive lines (such as 6-Pulse systems) and cannot substitute for an 18-Pulse drive board.

How many standalone internal power modules can this board run diagnostic checks on simultaneously?

The board is engineered with four dedicated standalone input monitoring ports (labeled J18 through J21) to run diagnostic tracking on up to four separate power supplies.

What field troubleshooting is required if a pressure fault is processed through connector J9?

Maintenance teams must confirm main cooling fan operation, check for blocked or dirty cabinet intake filters, and measure tracking voltage limits at the J9 plug.

Does this 18-Pulse control board support the standard integrated Safe Torque Off feature?

No, hardware constraints established by the manufacturer on standard 18-Pulse PowerFlex 7000 drives prevent the concurrent use of the Safe Torque Off option.

How does this board help protect the rectifier slave bridge assemblies?

It collects localized analog data to ensure precise current distribution tracking and voltage balance monitoring across the parallel-connected slave bridges.
