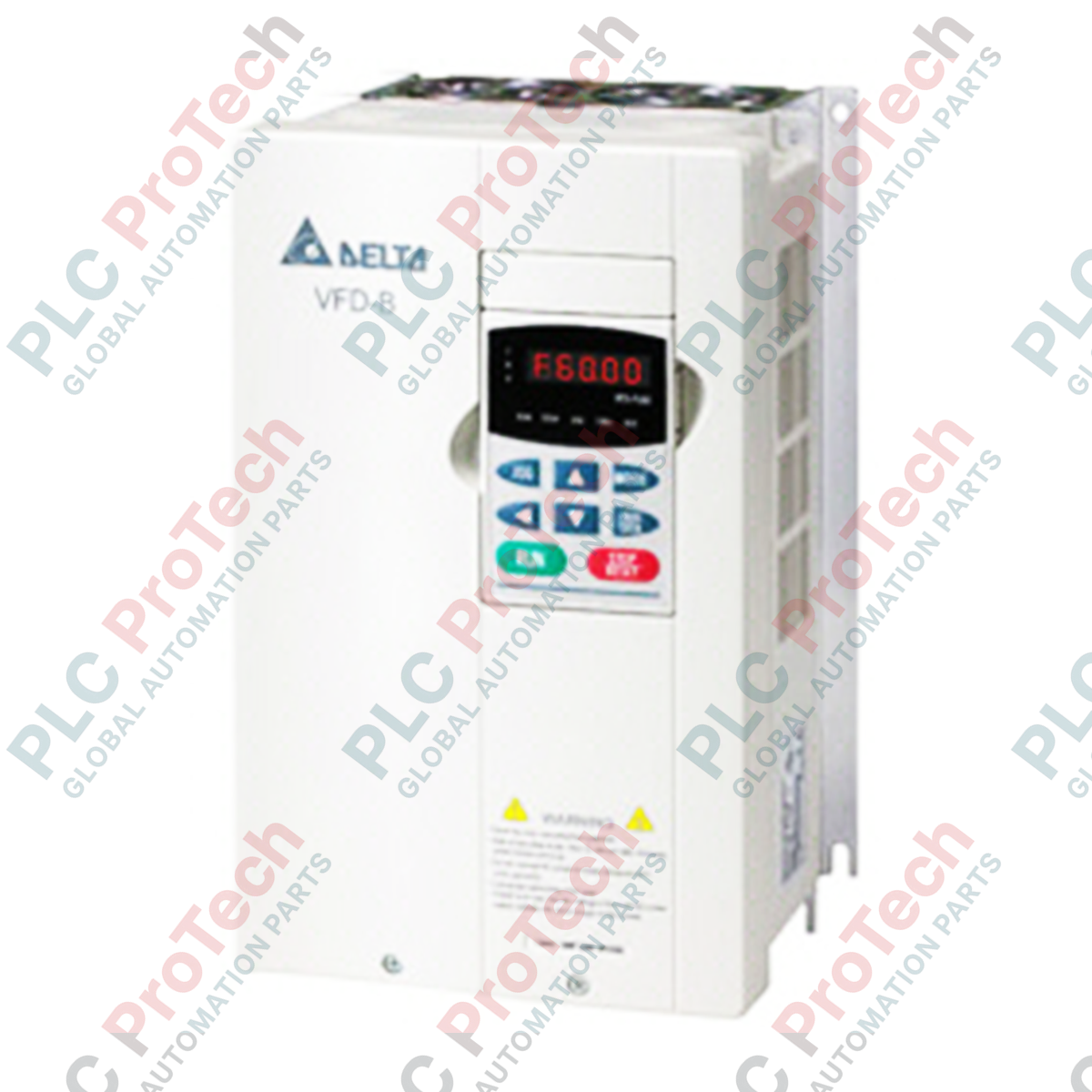

Delta Electronics VFD110B23A VFD-B Series AC Motor Drive

Description

Engineered to deliver highly reliable speed and torque control for industrial induction motors, the Delta Electronics VFD110B23A is a robust vector AC motor drive within the trusted VFD-B series. This 11 kW (15 HP) inverter functions as a NEMA 1 general-purpose motor controller, accommodating both open-loop and closed-loop vector control architectures. Operating on a 3-phase 200-240V input supply, it delivers a continuous output current of 49 Amps and supports an output frequency span from 0.1 to 400 Hz. Built-in Modbus communication interfaces seamlessly with centralized PLC control systems, while the modular design allows for expanded fieldbus integration via optional communication cards.

Key Features

• Dual Control Profiles: Supports adjustable V/f curve tuning alongside high-performance sensorless vector and closed-loop vector control.
• Multi-Step Speed Sequencing: Configurable 16-step speed progression and 15-step preset process control paths.
• Integrated Process Regulation: Built-in PID feedback control loop simplifies external instrumentation configuration.
• Dynamic Protection Systems: Automatic torque boost, slip compensation, and customizable overload thresholds preserve system safety.
• Industrial Communications: Built-in Modbus serial network connection with transmission speeds up to 38400 bps.

Applications

• Conveyor and Material Handling: Constant torque profiles ensure smooth, controlled starting and positioning under heavy loads.
• Pumping and Ventilation Systems: Utilizes energy-saving V/f curves and PID sleep/wake functions for flow control.
• Extruders and Mixers: High starting torque capabilities prevent stalling during high-viscosity process start-ups.
• Machine Tool Spindles: Exact frequency output up to 400 Hz delivers precise speed control for milling and turning machinery.

Technical Specifications

Connections and Interfaces

Empirical Engineering Insights

Alternative Models & Compatibility

The VFD110B23A serves as a drop-in replacement for legacy VFD-B drives of matching frame specifications. Note that upgrading older control loops utilizing analog feedback may require specific module alignment parameters. If integrating into high-speed architectures requiring 2000 Hz operation, ensure that your device has been factory programmed for high-frequency output, as standard firmware caps output frequency at 400 Hz.

Application Pitfalls & Engineering Notes

Operating an 11 kW drive at low speeds under constant torque loads can cause significant heat accumulation in the connected motor. Ensure the motor is equipped with an independent cooling fan (force-ventilation) if continuously running below 20 Hz. Additionally, pay close attention to the installation clearing distances; a minimum of 150 mm vertical clearance is required above and below the chassis to prevent local ambient temperatures from exceeding the 40 degC limit within high-density control panels.

Commissioning & Wiring Tips

When utilizing sensorless vector control (SVC), execute a motor auto-tune with the load uncoupled from the shaft. This allows the drive to precisely map stator resistance and inductance metrics, eliminating erratic torque behavior at startup. For Modbus serial networks, always terminate the final drive node with a 120-ohm resistor across the RS-485 differential lines to eliminate data reflections that can trigger communication timeout faults (CFe).
