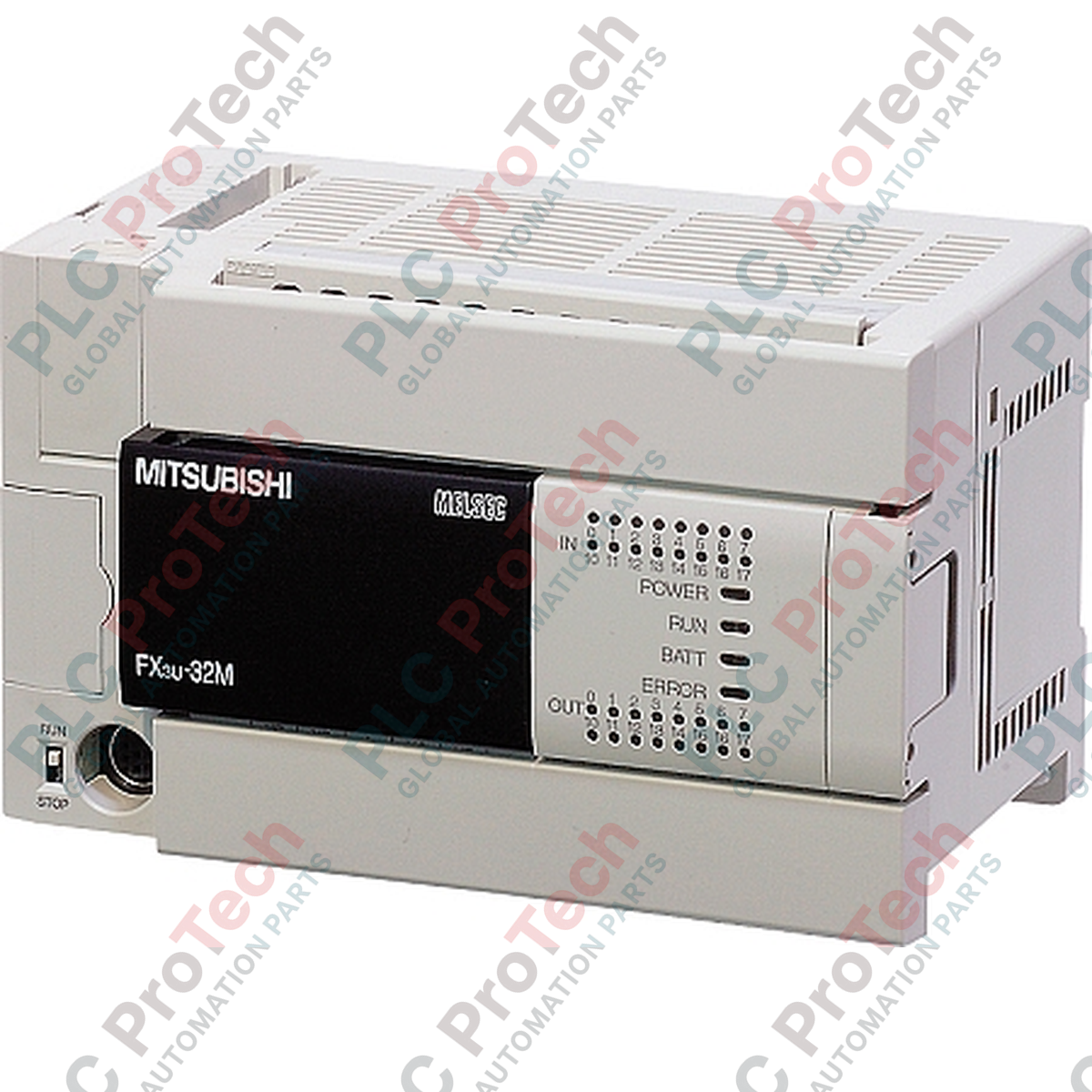

Mitsubishi Electric FX3U-32MR/ES MELSEC FX3U Series Main Unit PLC

Description

Designed for high-speed industrial control architectures, the Mitsubishi Electric FX3U-32MR/ES acts as a high-performance main processing unit within the MELSEC FX3U micro PLC family. This unit combines a compact physical footprint with an exceptional execution speed of 0.065 microseconds per basic instruction. Equipped with 16 integrated digital inputs (sink/source selectable) and 16 relay outputs, it manages complex automation logic directly or scales up to 384 local and network I/O points via extension blocks and network modules.

The platform utilizes a large 64,000-step internal RAM memory, which is continuously backed up by a built-in lithium battery to protect program integrity. Industrial communication protocols, high-speed counting inputs up to 100 kHz, and expandable positioning features make this main processing unit an incredibly flexible core for modern machine control.

Features

• Dual-Input Logic: 16 built-in digital inputs supporting both sink (NPN) and source (PNP) configurations.
• Robust Relay Outputs: 16 built-in relay outputs rated up to 2 A per point, suitable for switching both AC and DC loads.
• Massive Program Memory: 64,000 steps of built-in program memory with optional memory cassette loading functionality.
• Integrated High-Speed Counters: Supports 1-phase high-speed counting up to 100 kHz and 2-phase counting up to 50 kHz for rotary encoder feedback.
• On-Board Power Distribution: Features an integrated 24 V DC service power supply rated at 400 mA for direct sensor excitation.
• Real-Time Clock: Standard built-in RTC with automatic leap year correction and deviation of less than 45 seconds per month at 25 degC.

Applications

• Material Handling Systems: Conveyor sequencing, sorting lanes, and automated palletizer systems.
• Packaging Machinery: Form-fill-seal machines, continuous labeling lines, and capping mechanisms.
• Water and Wastewater Treatment: Pump control station management, level monitoring, and dosing control loops.
• Specialized Machine Tools: Woodworking machinery, multi-axis assembly tables, and custom assembly fixtures.

Technical Specifications Table

Connections and Interfaces

The controller uses physical removable M3 terminal blocks to guarantee secure connections in high-vibration applications. The following physical wiring map outlines standard system power and input/output routing:

Alternative Models & Compatibility

The FX3U-32MR/ES serves as a direct hardware upgrade path for the legacy FX2N-32MR-ES/UL units. Although mounting footprints are comparable, users must verify total physical depth clearance because the FX3U model incorporates additional side-bus expansion adapters. If you require transistor switching for high-speed pulse-train outputs (e.g., servo/stepper control), the FX3U-32MT/ES (transistor output version) should be selected instead of this relay model.

Application Pitfalls & Engineering Notes

When switching inductive loads (such as solenoid valves, magnetic contactors, or motor starters) through the integrated relay outputs, voltage surges can severely degrade contact life. To prevent contact welding and electromagnetic interference (EMI), engineers should install an external surge absorber (for AC loads) or a freewheeling diode (for DC loads) across the load. Additionally, keep the total maximum current of the common terminals below the 8 A limit to avoid thermal breakdown of the internal PCB traces.

Commissioning & Wiring Tips

Ensure the built-in RUN/STOP slider switch is set to STOP during initial program downloads via the peripheral port. When utilizing high-speed inputs (X000 to X007) for encoder counting, ensure that twisted-pair shielded cabling is run separately from high-voltage motor conductors. The shielding must be grounded at a single, clean grounding terminal (FG) close to the PLC base unit to avoid creating ground loops that could cause erroneous counting pulses.
