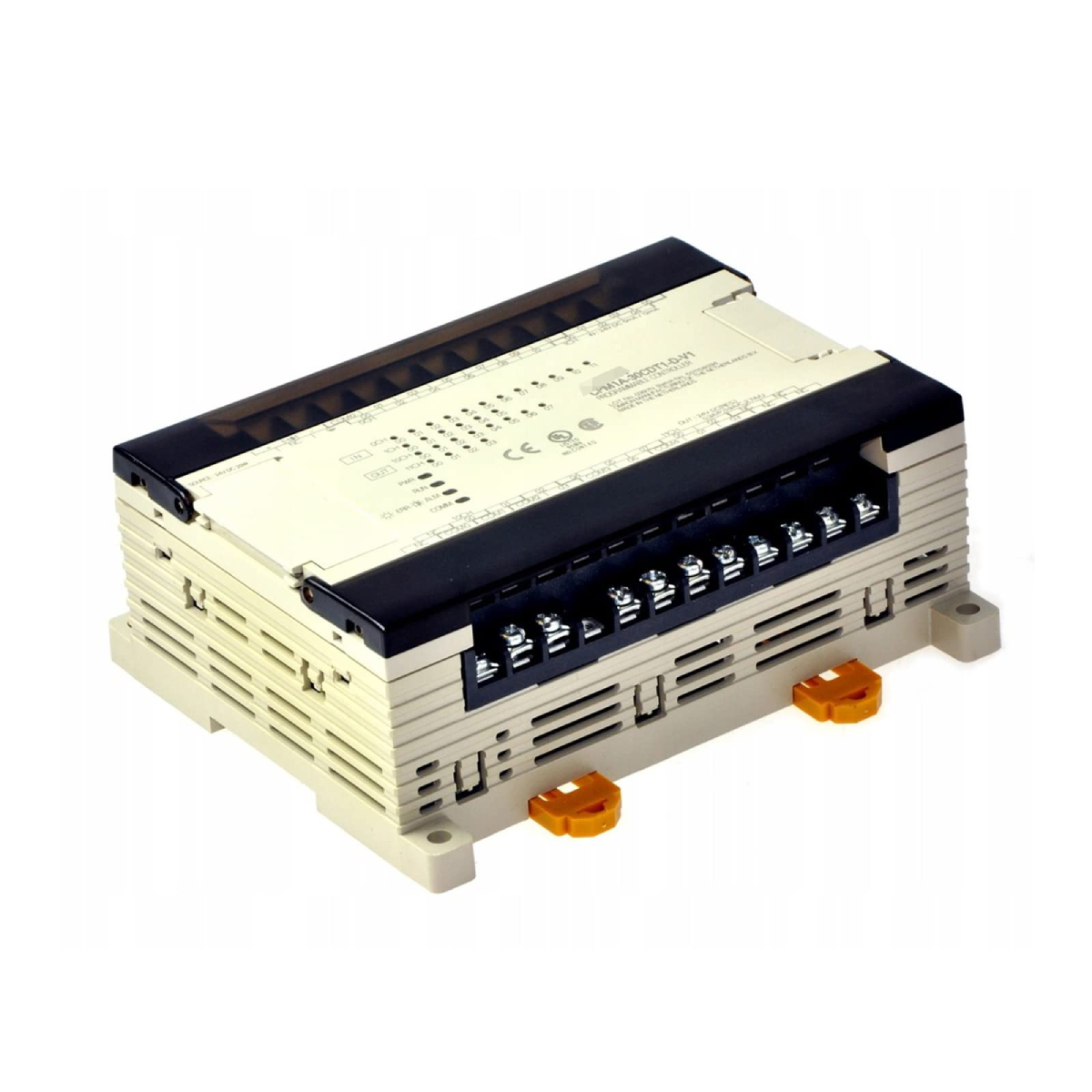

Omron CPM1A-30CDT1-D-V1 Micro PLC System Controller

The Omron CPM1A-30CDT1-D-V1 (CPM1A30CDT1DV1) is a versatile and compact micro PLC designed for high-efficiency control in small-scale automation. As part of the established CPM1A series, this controller is ideal for applications such as conveyor control, packaging machinery, and simple material handling systems. Featuring 18 digital inputs and 12 transistor outputs, the CPM1A-30CDT1-D-V1 offers a robust 30-point I/O density in a small form factor. Its integrated high-speed counter and pulse output capabilities make it particularly effective for basic positioning tasks and encoder feedback loops, providing a cost-effective solution for machine builders looking to balance performance with cabinet space.

Technical Configuration

The CPM1A-30CDT1-D-V1 architecture is optimized for speed and modularity. With a logic execution speed as fast as 0.72 µs, it handles discrete control logic with high precision. The "T1" designation specifies Transistor (Source Type) outputs, which are commonly used in European-style PNP logic circuits where the output provides the positive voltage to the load.

For systems requiring future growth, this unit supports up to 3 expansion I/O modules, allowing the 30-point base to scale significantly. It features a 2 kWord program capacity and 1 kWord of data memory, sufficient for complex sequential logic. The "V1" version represents an enhanced hardware revision, offering improved reliability and stability over the original series. Power is supplied via a standard 24 VDC input, making it compatible with most industrial power distribution systems.

Technical Specifications

Technical FAQs

Q1: What is the difference between Transistor "Source" and "Sink" outputs?

A1: The CPM1A-30CDT1-D-V1 uses "Source" (PNP) logic. This means that when an output is ON, it connects the load to the positive terminal (V+). In contrast, "Sink" (NPN) logic connects the load to the negative terminal (0V). Always match your field wiring and sensors to the PNP/Source specification of this module.

Q2: Can I use this PLC for simple motion control?

A2: Yes. With its built-in 2 kHz pulse output and 5 kHz encoder input, it is perfectly suited for basic positioning, such as controlling a stepper motor driver or monitoring a low-speed rotary encoder for conveyor tracking.

Q3: How many expansion modules can I add to the 30-point base?

A3: You can add a maximum of 3 expansion modules. These can be digital I/O, analog I/O, or specialized temperature sensor modules, allowing the CPM1A to handle more diverse signals as your machine requirements grow.

Engineering & Installation Guide

• Wiring and Termination: Use bootlace ferrules on all connections to the screw terminals. Given the compact 50 mm depth, ensure that your wire ducting allows for enough "bend radius" for the 24 VDC power and I/O cables to prevent mechanical stress on the PLC terminals.

• Pulse Signal Integrity: For the 5 kHz encoder input, use shielded twisted-pair cabling. Ground the shield at the PLC end only to prevent electromagnetic interference (EMI) from inducing "ghost pulses" that could lead to positioning errors in the 2 kWord program logic.

• Heat Dissipation: Although the PLC consumes little power, do not mount it directly above heat-generating components like large VFDs or power resistors. Maintain at least 20 mm of clearance above and below the unit to allow for natural convection through the cooling vents.

Engineering Advantages

The CPM1A-30CDT1-D-V1 is distinguished by its longevity and "set-and-forget" reliability. The 0.72 µs execution speed ensures that the PLC can handle high-frequency input changes without missing a scan cycle. Its modular expansion capability means that machine builders can standardize on a single base unit while customizing the I/O count for specific machine variants. Furthermore, the 24 VDC source-type outputs provide a safer failure mode in many industrial standards, as a short to ground typically results in a blown fuse rather than an unintended energized state.
