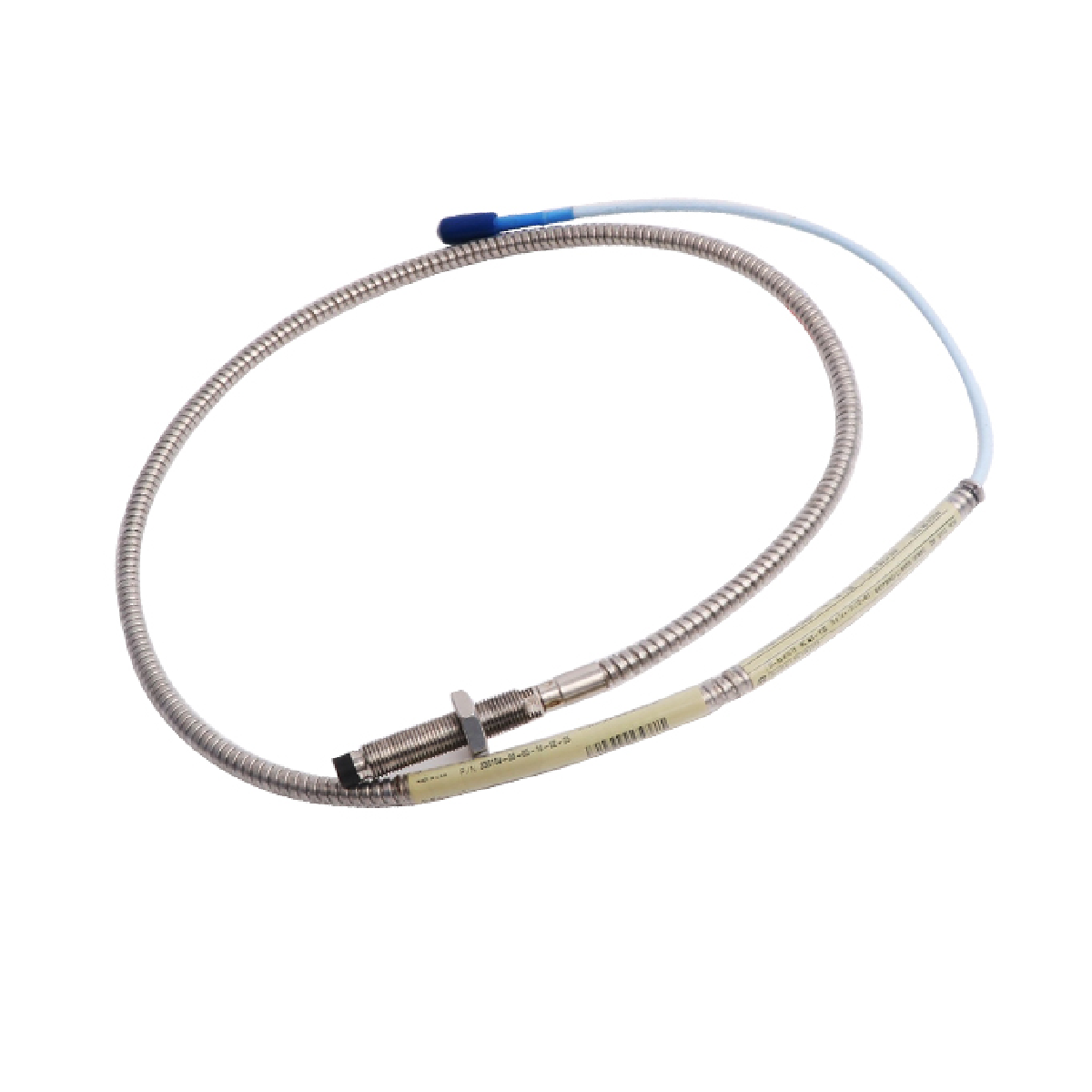

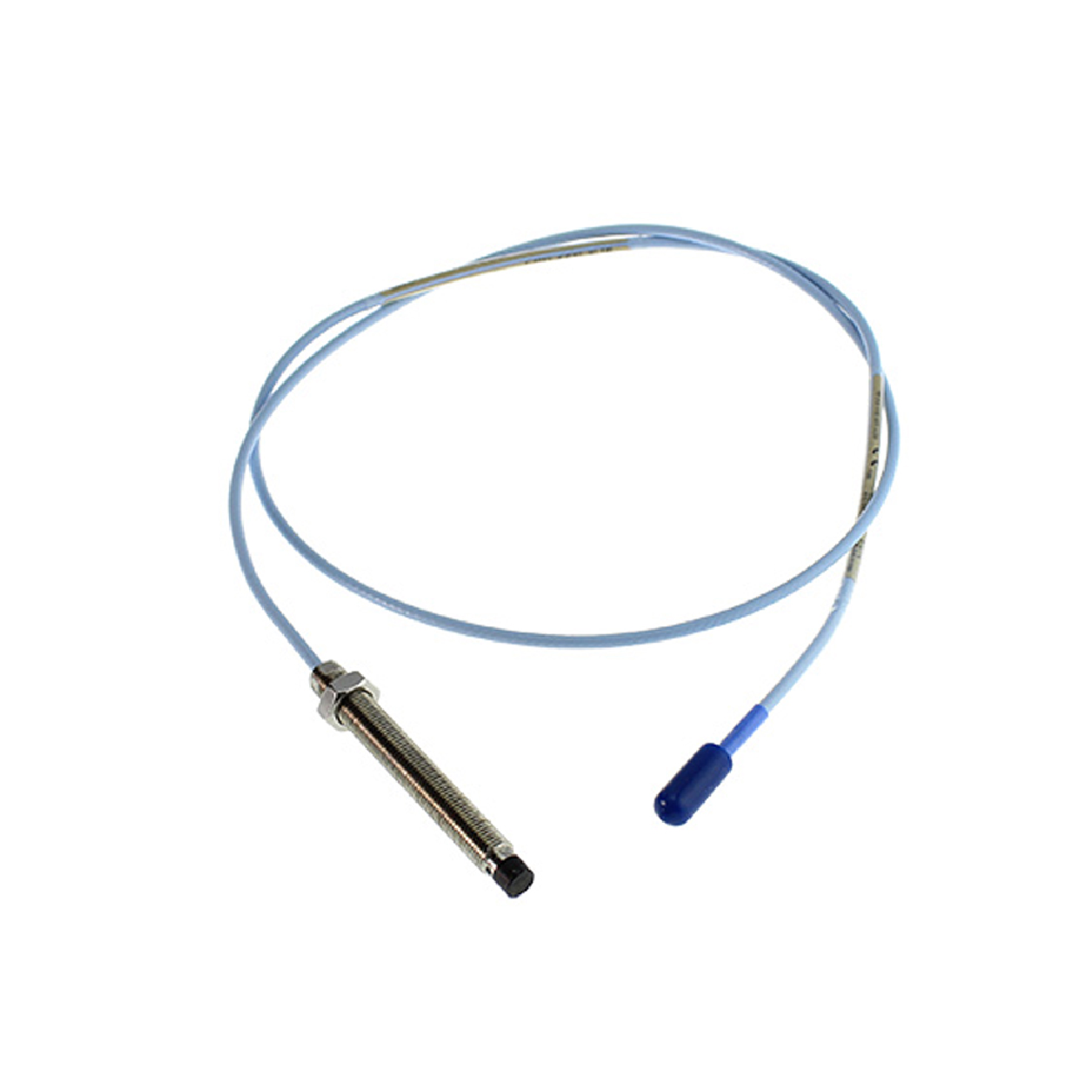

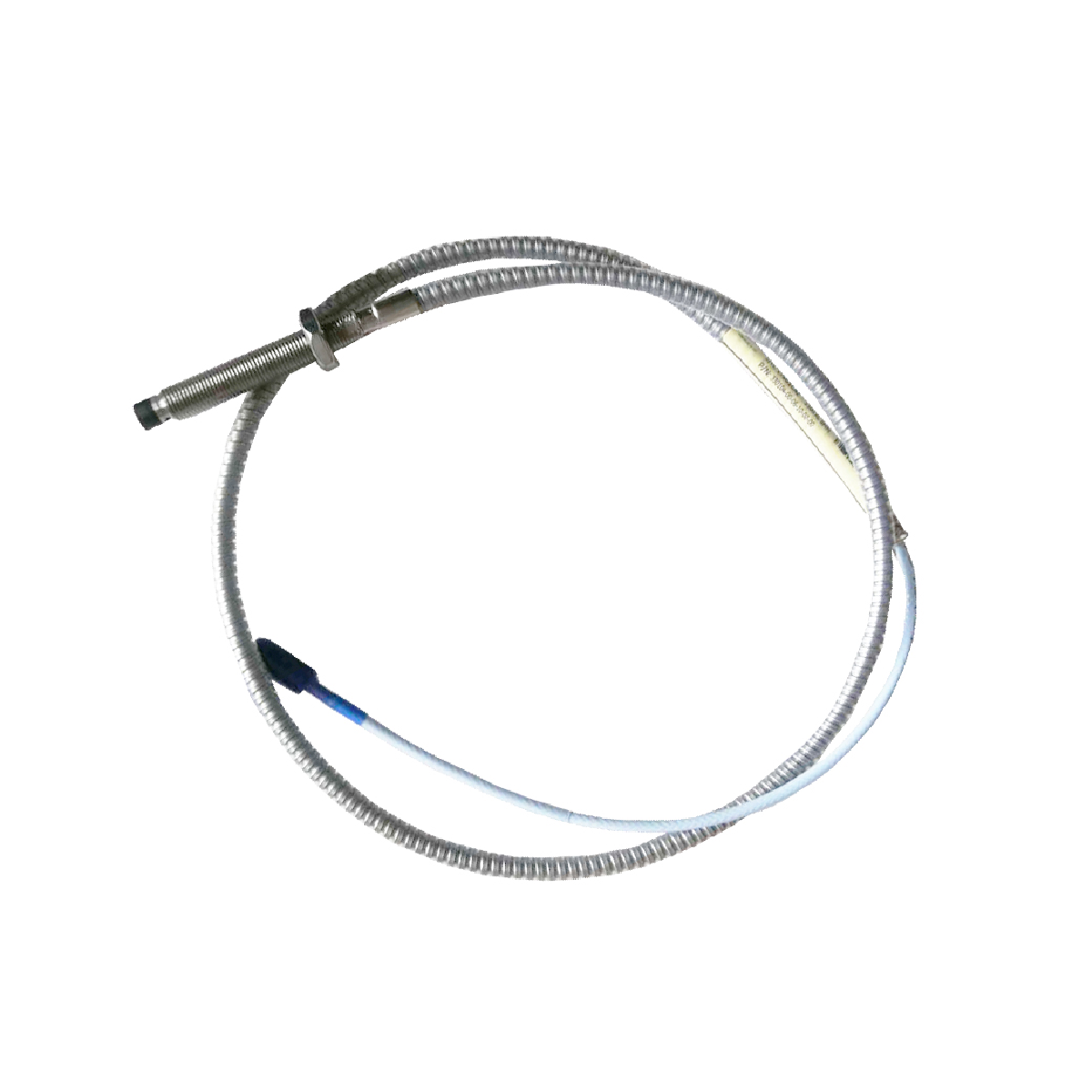

Bently Nevada 330104-00-04-10-02-01 3300 XL 8 mm Proximity Probe

تبقى فقط 10 عنصر/عناصر في المخزون

الشركة المصنعة: Bently Nevada
رقم المنتج: 330104-00-04-10-02-01
Country of origin:الولايات المتحدة
نوع المنتج: 3300 XL 8 mm Proximity Probes
Barcode: 0782451090532
الدفع: تحويل بنكي، ويسترن يونيون
الوزن: 380ج
Dimensions: 200 mm x 150 mm x 50 mm
ميناء الشحن: شيامن
الضمان: 12 شهرًا

Description

The Bently Nevada 330104-00-04-10-02-01 is a high-reliability 3300 XL 8 mm Proximity Probe equipped with an M10 x 1 metric thread and integrated stainless steel armor. As a fundamental component of the 3300 XL series eddy current proximity transducer system, it delivers an output voltage directly proportional to the static and dynamic distance between the probe tip and an observed conductive target surface. The physical design features a robust polyphenylene sulfide plastic tip combined with an AISI 303 or 304 stainless steel case, engineered specifically for critical vibration and position monitoring on fluid-film bearing machinery, speed sensing, and Keyphasor phase reference measurements.

Features

Full System Interchangeability: Achieves 100% compliance with API 670 Standard (4th Edition) for mechanical configuration, linear range, and temperature stability without requiring bench calibration or component matching.
Enhanced Structural Bond: Employs a patented TipLoc molding method providing an exceptionally strong bond between the probe tip and the stainless steel body.
High-Strength Cable Connection: Incorporates a patented CableLoc design delivering up to 330 N (75 lbf) pull strength where the triaxial cable attaches to the probe assembly.
Corrosion-Resistant Interconnects: Equipped with gold-plated brass or gold-plated beryllium copper ClickLoc coaxial connectors that secure with finger-tight torque.
Robust Armor Protection: Outfitted with flexible AISI 302 or 304 stainless steel protective armor jacketed in fluoroethylene propylene for harsh industrial exposure.
Backward Compatibility: Fully interchangeable and backward compatible with standard non-XL 3300 series 5 mm and 8 mm transducer components.

Applications

Fluid-Film Bearing Machinery: Continuous radial vibration and axial position logging in industrial turbines, compressors, and pumps.
Keyphasor & Speed Measurement: Providing precision phase reference and overspeed protection metrics for machinery diagnostics.
Harsh Environment Deployment: Specifically intended for high-density processing zones exposed to corrosive substances, turbine oils, and moisture up to 93% relative humidity.

Ordering Information Breakdown

Model Code Segment	Selected Option Value	Technical Meaning & Specification
330104	Base Model	3300 XL 8 mm Proximity Probe, M10 x 1 thread, with protective armor
-00	Unthreaded Length	0.0 mm unthreaded length configuration
-04	Overall Case Length	40 mm overall case length configuration
-10	Total Length	1.0 meter (3.3 feet) total probe system length
-02	Connector Type	Miniature coaxial ClickLoc connector, standard triaxial FEP cable
-01	Agency Approval	Multiple Hazardous Area Approvals (ATEX, CSA, IECEx)

Technical Specifications

Parameter	Value / Specification
Manufacturer	Bently Nevada (Baker Hughes)
Country of Origin	United States
Linear Range	2 mm (80 mils), beginning at 0.25 mm (10 mils) from target
Incremental Scale Factor (ISF)	7.87 V/mm (200 mV/mil) nominal
Recommended Gap Setting	1.27 mm (50 mils)
Nominal DC Resistance (RPROBE)	7.59 ohms plus or minus 0.50 ohms for 1.0 meter option
Frequency Response	0 to 10 kHz: +0, -3 dB down with up to 305 meters of field wiring
Operating Temperature Range	-51 degC to +177 degC (-60 degF to +351 degF)
Storage Temperature Range	-51 degC to +105 degC (-60 degF to +221 degF)
Relative Humidity Resistance	Less than 3% change in Average Scale Factor when tested in 93% humidity up to 56 days
Tip Material	Polyphenylene sulfide (PPS)
Case Material	AISI 303 or 304 stainless steel (SST)
Armor Composition	Flexible AISI 302 or 304 SST with FEP outer jacket
Cable Specifications	75 ohm triaxial, fluoroethylene propylene (FEP) insulation
Connector Pull Strength	330 N (75 lbf) probe case to probe lead; 270 N (60 lbf) at link to extension cable
Maximum Probe Case Torque	22.6 N-m (200 in-lbf)
Minimum Cable Bend Radius	25.4 mm (1.0 inch)
Shipping Weight (Calculated)	0.38 kg (0.84 lbs)
Package Dimensions (Calculated)	200 mm x 150 mm x 50 mm

Installation Guidelines

CRITICAL WARNING:

Before beginning any installation, verification, or probe adjustments, ensure the machine train has been brought to a complete mechanical standstill and all associated machinery monitoring control networks are fully bypassed. De-energize all connected electrical power lines and verify that the target area matches the certified classification mapping to guarantee absolute local safety compliance.

Mechanical Mounting and Thread Engagement: Carefully thread the probe into the mounting bracket or machine housing manually. Ensure clean thread engagement without cross-threading. Tighten to the recommended mounting torque using calibrated tools, preventing damage to the M10 x 1 casing.

Physical Gapping Adjustments: Utilize a precise micrometer or feeler gauges to gap the probe tip relative to the target surface. Adjust until reaching the recommended 1.27 mm (50 mils) distance, corresponding to the linear range center.

Cable Routing and Bend Radius Limits: Route the armored triaxial cable through appropriate conduit and protective channels. Maintain a structural routing trajectory ensuring the absolute minimum bend radius does not drop below 25.4 mm (1.0 inch) to prevent internal core stress.

Coaxial Connector Click Verification: Inspect the gold-plated miniature ClickLoc coaxial connections for cleanliness. Join the probe lead to the extension cable firmly with finger-tight torque until an audible structural click is registered, securing the mechanical locking thread.

Product Image	Model Number / Title	Condition	Availability	Action
	Bently Nevada 330104-00-04-10-11-01 3300 XL 8 mm Proximity Probe	Original New	In Stock	View Details

Key Features:

#Bently Nevada 3300 XL #Proximity Probes

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

What is the official scale factor of this eddy current system?

The system features a nominal Incremental Scale Factor of 7.87 V/mm (200 mV/mil) when properly paired with a 3300 XL extension cable and Proximitor Sensor calibrated to AISI 4140 steel targets.

What structural thread pattern does this specific model utilize?

This model features standard metric M10 x 1 threads with a 40 mm overall case length configuration and an unthreaded length configuration of 0.0 mm.

Does this unit include internal cable sealing against leakage?

This specific configuration includes standard FEP jacketed triaxial armored cable. If high-pressure fluid blocking through the internal core is required, a dedicated FluidLoc cable variant must be selected.

What is the recommended installation torque for the metric threads?

The recommended maximum rated probe case installation torque for standard forward-mounted metric configurations is 22.6 N-m (200 in-lbf).
