ABB 10012279 SDCS-POW-1 DCS 500 Power Supply Board

Nur noch 8 Artikel auf Lager verfügbar

Hersteller: ABB
Produkt-Nr.: SDCS-POW-1C
Herkunftsland:Finnland,Saudi-Arabien
Produkttyp: DC Power Supply Board
Strichcode: 85049090
Zahlung: T/T, Western Union
Gewicht: 440g
Abmessungen: 260 mm x 180 mm x 55 mm
Versandhafen: Xiamen
Garantie: 12 Monate

Description

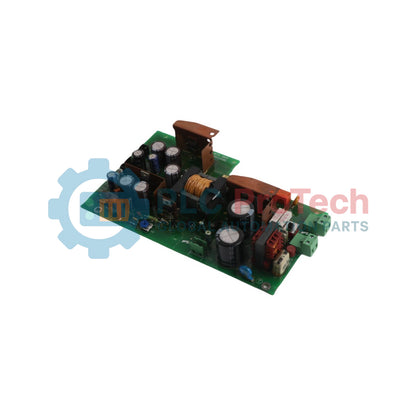

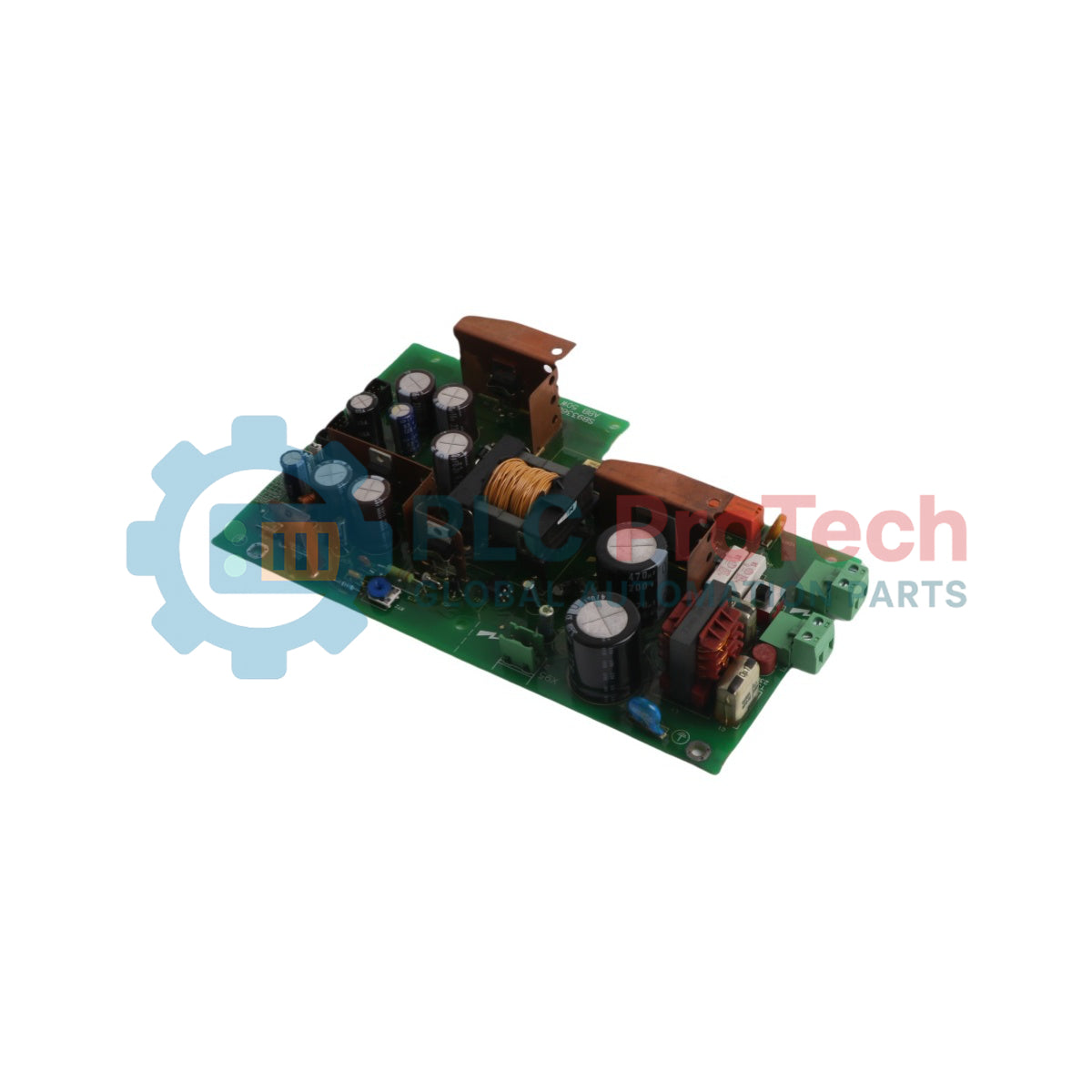

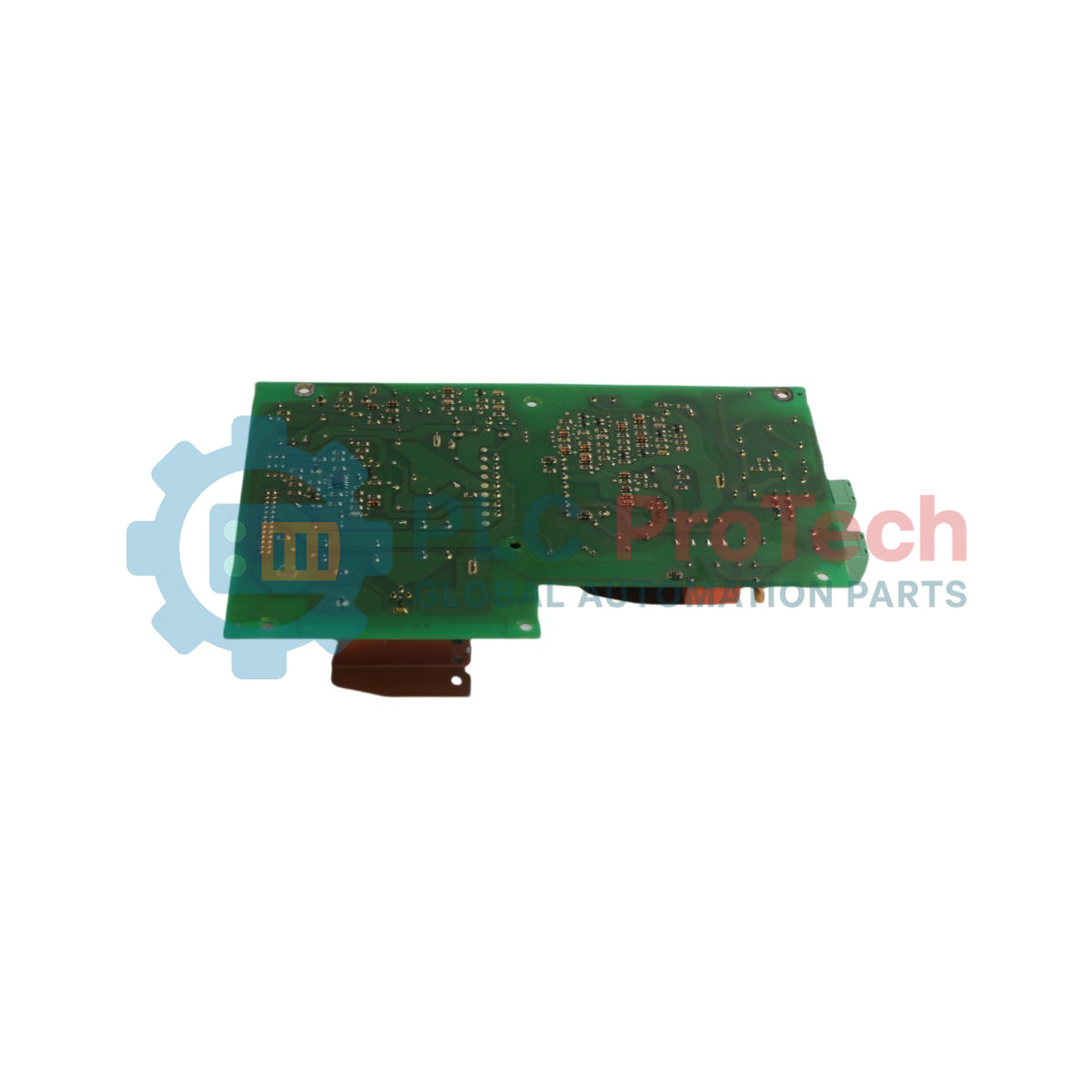

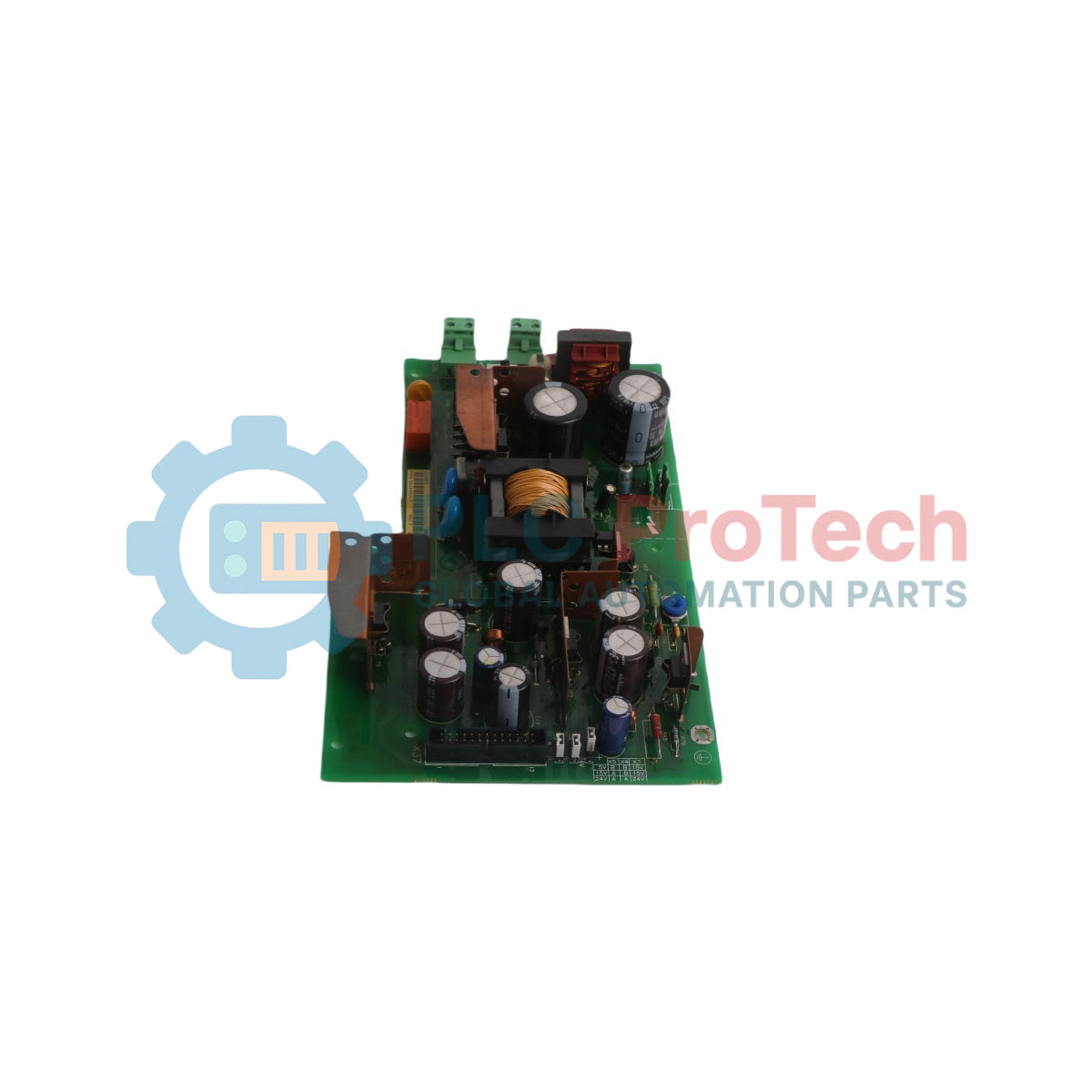

The ABB SDCS-POW-1 is an internal auxiliary power supply module engineered specifically for integration within the electronics assembly of DCS 500 industrial DC drive systems. Acting as a dedicated power supply board, this card handles the critical conversion and regulation of baseline internal operating voltages required by main controller processors, diagnostic logic circuitry, and interface extension options.

To maintain stable operation under volatile heavy industrial load fluctuations, the board utilizes highly isolated multi-channel regulation paths that buffer delicate microelectronics from harmonic feedback and line notches native to high-power thyristor networks. This module is supplied exclusively as a conformally coated version (original part number 64162993), providing advanced resistance against atmospheric impurities, humidity, and fine particulate contamination common in harsh automation control environments.

Features

DCS 500 Native Compatibility: Designed strictly to match the electrical characteristics and structural mounting footprints of DCS 500 drive control trays.
Conformal Coating Treatment: Standard factory protective treatment safeguards vulnerable components against oxidation, moisture tracking, and chemical dust.
High-Isolation Output Channels: Decouples auxiliary logic operating voltages to prevent high-voltage switching spikes from causing processing errors.

Applications

Auxiliary voltage regulation and internal logic power sourcing within DCS 500 series industrial DC drives.
Heavy-duty metal processing mills, mining hoists, extruders, and printing lines operating legacy DCS 500 architectures.

Technical Specifications

Parameter	Specification
Manufacturer	ABB
Model Designation	SDCS-POW-1
Product ID	10012279
Coated Factory Part Number	64162993
Replacement Product ID (New)	42000553
Device Classification	Power Supply Board
System Usage Hierarchy	DCS 500 Modules
Part Type Status	Original / New
Country of Origin	Finland (FI) / Saudi Arabia (SA)
Customs Tariff Number	85049090
Product Net Weight	0.44 kg
Shipping Weight (Calculated)	0.95 kg
Package Dimensions (Calculated)	260 mm x 180 mm x 55 mm

Alternative Models & Compatibility

The SDCS-POW-1 auxiliary power card under Product ID 10012279 maps directly to the active factory lifecycle tracking code 42000553. When retrofitting legacy DCS 500 configurations, ensure that older non-coated variants are phased out in favor of the factory standard 64162993 coated assembly to protect control signals from premature structural breakdowns.

Installation Guidelines

CRITICAL WARNING: HIGH VOLTAGE RISK

Isolate all incoming main line three-phase power feeds and independent auxiliary supplies servicing the drive enclosure before opening the electronics tray. Wait a minimum of 15 minutes for internal bus capacitors to bleed off residual charges. Verify a zero-voltage state with a certified multi-meter at all testing junctions before initiating board extraction.

Continuous grounding protocols must be strictly enforced. Engineers must wear a verified anti-static wrist strap bonded to the chassis framework to prevent electrostatic damage to the coated board micro-circuits.

Carefully map and disconnect all ribbon interface cables and point-to-point power linkages hooked to the old board assembly, noting exact plug configurations.

Loosen the dedicated chassis retention fasteners, swap the faulty card out for the new unit, and torque all hardware evenly to secure chassis-to-board ground references. Reattach internal wiring buses firmly.

Key Features:

#Power Supply Boards

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

What is the primary technical function of the SDCS-POW-1 board?

The board operates as an internal auxiliary power supply card that conditions and steps down system potentials to provide regulated logic power to DCS 500 drive control architectures.

What is the engineering significance of the 64162993 part number?

Part number 64162993 designates the official conformally coated variant of this power board, providing environmental protection against humidity and atmospheric contaminants.

Which drive system family natively supports this specific power card?

This power supply board is engineered exclusively for deployment within ABB DCS 500 series industrial converter and drive frameworks.

What active part number should be specified if ordering a new replacement line item?

The designated factory update and replacement product identifier for the legacy board configuration is 42000553.
