Siemens 6AG1526-1BH00-2AB0 SIPLUS S7-1500 F-DI Digital-Eingangsmodul

Description

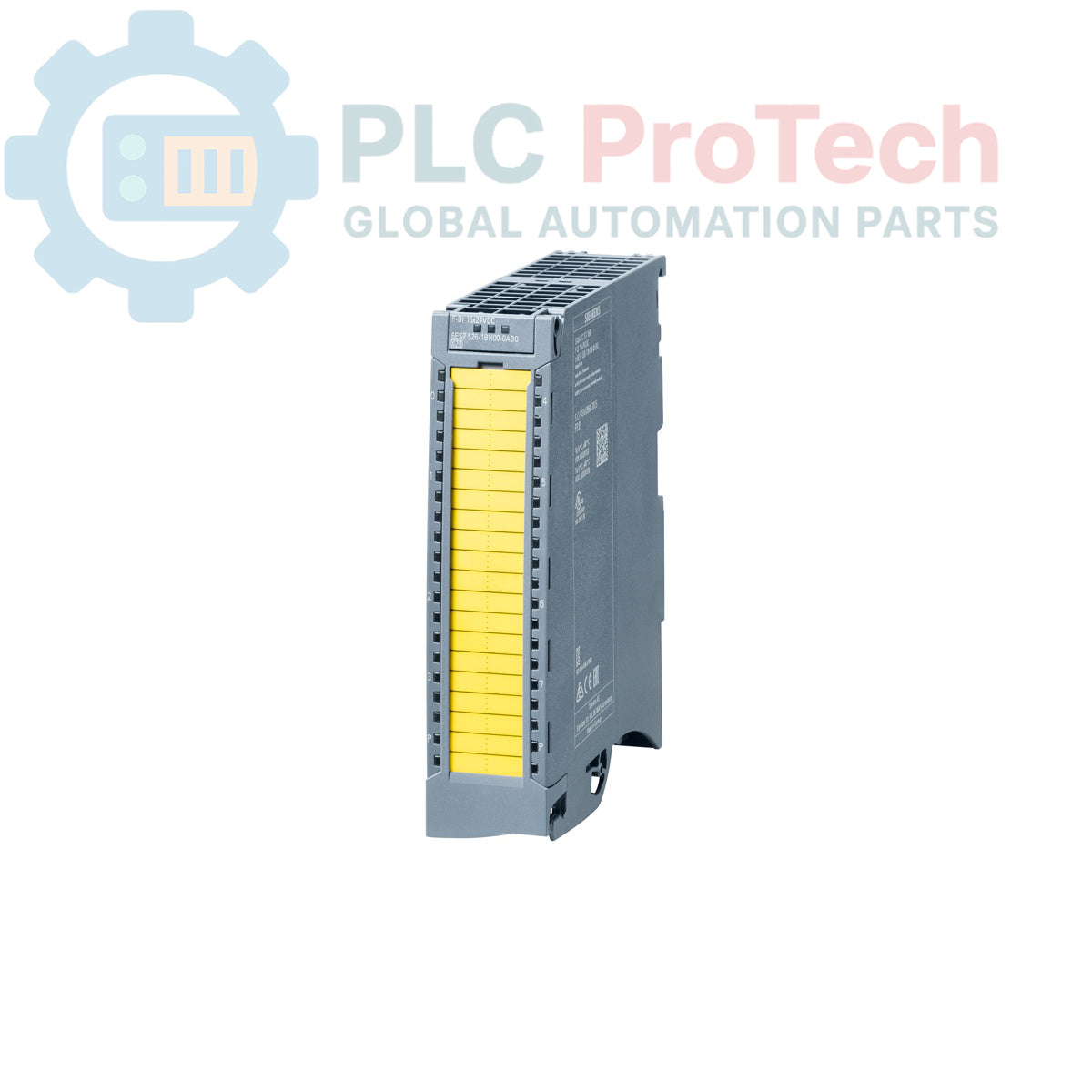

The 6AG1526-1BH00-2AB0 is a high-performance SIPLUS S7-1500 F-DI 16x24 V DC fail-safe digital input module, designed for demanding automation environments. Based on the 6ES7526-1BH00-0AB0, this module is enhanced with conformal coating to ensure long-term reliability in harsh conditions, supporting an extended operating temperature range of -30 degC to +60 degC.

Engineered for safety-critical applications, it provides 16 digital inputs and supports safety levels up to PL E according to ISO 13849-1 and SIL 3 according to IEC 61508. With a compact width of 35 mm, it allows for efficient space utilization within the S7-1500 system architecture while maintaining high functional safety standards.

Features

• 16 fail-safe digital inputs (F-DI)
• Enhanced durability with conformal coating
• Wide operating temperature range: -30 degC to +60 degC
• Safety certification up to PL E (ISO 13849-1) and SIL 3 (IEC 61508)
• Compact 35 mm module width
• Rated supply voltage: 19.2 V DC to 28.8 V DC

Applications

• Emergency stop monitoring and safety light curtain integration
• Hazardous area processing and machine protection systems
• Fail-safe signal acquisition in automotive or chemical manufacturing
• Industrial automation requiring SIL 3 compliance

Technical Specifications

Installation Guidelines

• Mounting: Install the module onto a standard S7-1500 DIN rail. Ensure the U-connector is correctly seated for power and data transmission.
• Grounding: Proper shield connection is mandatory for safety-related inputs to prevent electromagnetic interference (EMI).
• Wiring: Utilize the front connector for 16-channel wiring. Ensure proper wire gauging and ferrules to maintain secure connections.
• Thermal Management: Although rated for -30 degC to +60 degC, provide sufficient airflow to prevent hotspots in high-density rack configurations.
• Safety Precautions: Must be configured within a compatible Fail-safe PLC environment. Ensure the safety software parameters align with the connected physical sensors.
