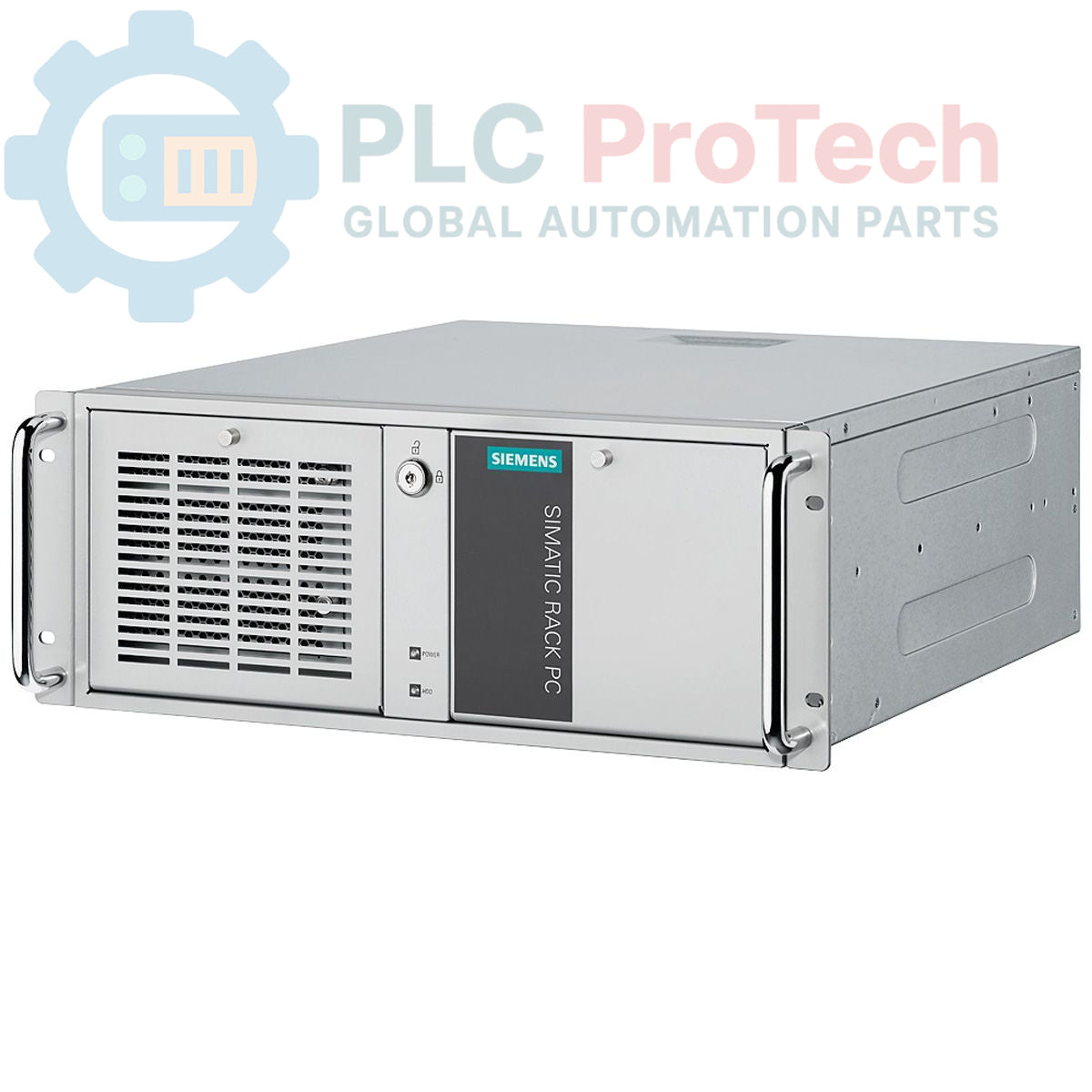

Siemens 6AG4012-0CA22-0XX0 Simatic IPC347D Rack-PC

The 6AG4012-0CA22-0XX0 is a SIMATIC IPC347D industrial rack PC, designed as a robust 19-inch, 4U form factor computing unit for control cabinet integration. Powered by the Core i5-3000 series processor (4-core/4-thread, 6 MB cache), this system is built to provide reliable computational performance for industrial monitoring and visualization tasks. The unit is equipped with 4 GB of DDR3 SD-RAM and a 500 GB internal hard drive, offering a stable foundation for industrial software applications. Connectivity is extensive, featuring dual Gigabit Ethernet ports, multiple USB interfaces, and legacy I/O support, ensuring compatibility with a wide range of industrial peripherals and plant floor communication networks.

Features

• Form Factor: 19-inch, 4U rack-mount chassis for standard industrial cabinet mounting.
• Processor: Integrated Core i5-3000 series (4C/4T) for balanced processing power.
• Memory/Storage: 4 GB DDR3 SD-RAM and 500 GB internal HDD.
• Connectivity: 2x Gbit Ethernet, 6x USB ports (2 front/4 rear), 2x Serial, 2x PS/2, and Audio.
• Display Support: Includes both DVI-D and VGA video output interfaces.
• Power Supply: Industrial-grade 100/240 V AC power supply.
• Multimedia: Integrated DVD +/-RW drive.

Applications

• Industrial HMI and visualization systems.
• Plant floor data acquisition and monitoring.
• Industrial process automation and server-based control.
• Long-term data logging and production management.

Technical Specifications

Installation Guidelines

• Rack Mounting: Ensure the 4U rack space is structurally sound to support the 16.66 kg unit weight. Use appropriate cage nuts and rack screws.
• Environment: Maintain optimal operating temperatures by ensuring clear air intake at the front and exhaust at the rear. Avoid mounting in locations with high vibration or excessive dust.
• Power: Ensure the power source is grounded. Note that the unit is supplied without a line cable; ensure a suitable high-quality AC power cable is utilized.
• Internal Components: If installing additional cards or upgrading RAM, ensure the chassis is disconnected from power and utilize ESD protection measures.
