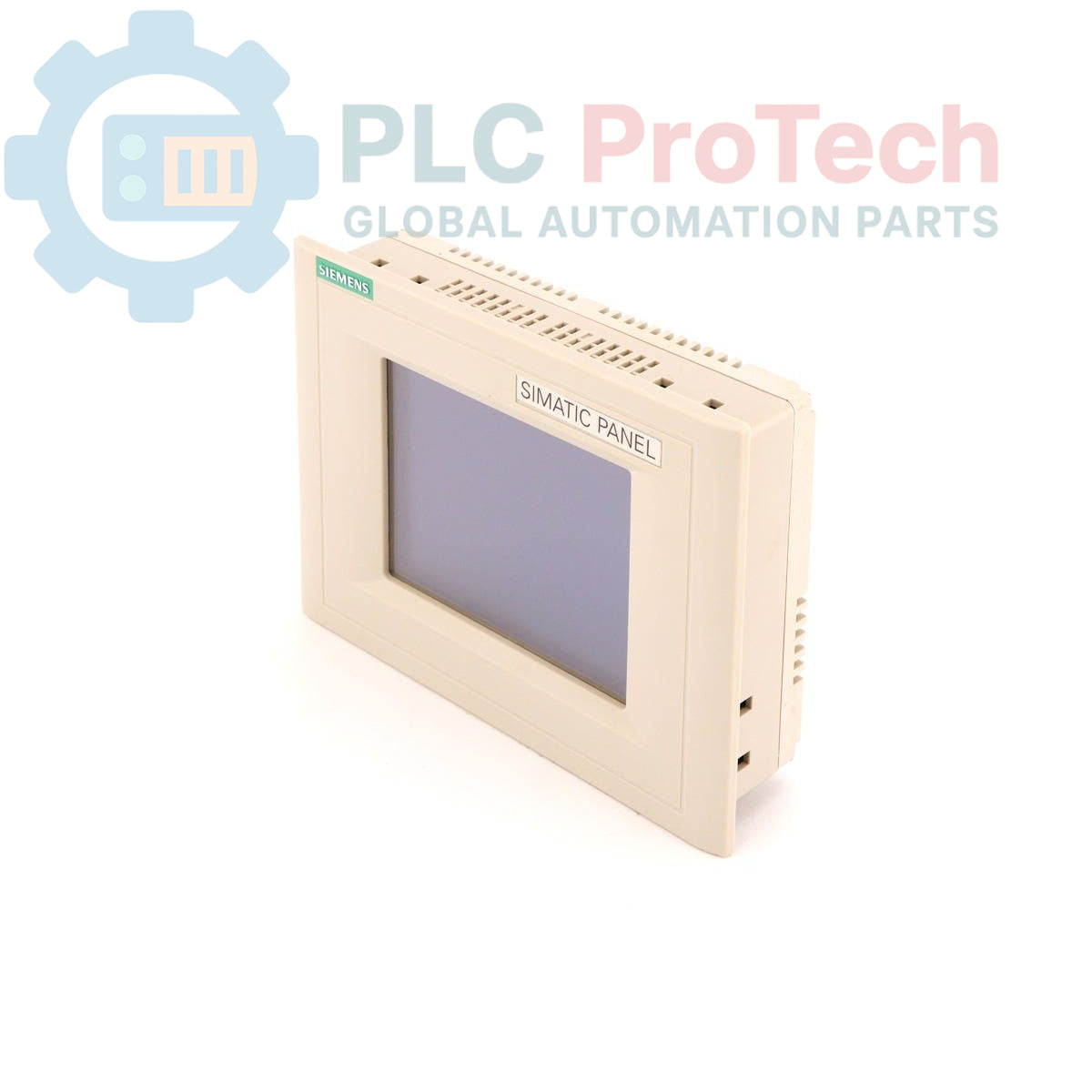

Siemens 6AV6545-5BC00-0BQ0 SIMATIC HMI TP170A Touch Panel

Only 8 item(s) left in stock

Manufacturer: Siemens
Product No.: 6AV6545-5BC00-0BQ0
Country of origin:Deutschland
Product Type: Touch Panel
Barcode: 85371091
Payment: T/T, Western Union
Weight: 3240g
Dimensions: 19.00 x 32.50 x 11.00 cm
Shipping port: Xiamen
Warranty: 12 months

Description

The Siemens 6AV6545-5BC00-0BQ0 is a SIMATIC HMI TP170A Touch Panel, identified as a customer-specific design version C. This unit is delivered with a standard front and is part of the SIMATIC HMI Touch Panels 170 series, designed for industrial human-machine interface applications. It facilitates operator control and monitoring in various automation environments.

Features

Customer-specific design version C
Delivered with standard front

Applications

The Siemens SIMATIC HMI TP170A Touch Panel is typically deployed in industrial settings for:

Machine operation and control
Process visualization and monitoring
Data input and parameter adjustment
Alarm management and diagnostics
Integration into SIMATIC automation systems

Technical Specifications

Parameter	Value
Brand	Siemens
Manufacturer	Siemens
Range	SIMATIC HMI
Subrange	Touch Panels 170 series
Type of Product	Touch panel
PLM Product Phase	Obsolete
Package Dimensions (Calculated)	19.00 x 32.50 x 11.00 cm
Shipping Weight	3.24 kg
Commodity Code	85371091
Export Control Regulations (ECCN)	N
Country of Origin	Not specified

Installation Guidelines

Proper installation ensures reliable operation and safety for the Siemens 6AV6545-5BC00-0BQ0 Touch Panel.

De-energize System: Before beginning any installation or wiring, ensure all power to the control system and the HMI mounting area is completely de-energized and locked out.
Mounting: Securely mount the touch panel into a prepared panel cutout. Ensure adequate clearance for ventilation and cable routing.
Power Connection: Connect the power supply according to the specified voltage and polarity. Verify all connections are tight and correct before applying power.
Communication Wiring: Connect necessary communication cables (e.g., MPI, PROFIBUS, Ethernet if applicable) to the designated ports. Ensure proper shielding and grounding for communication lines to prevent interference.
Grounding: Establish a robust protective earth (PE) connection to the HMI chassis to ensure electrical safety and minimize electromagnetic interference.
Cable Routing: Route power and communication cables separately where possible to avoid signal interference. Use cable ties to secure wiring and maintain an organized installation.
Environmental Considerations: Ensure the installation environment meets the HMI's specified operating conditions regarding temperature, humidity, and vibration.
Power-Up and Test: After all connections are verified, re-energize the system and perform functional tests to confirm proper operation of the touch panel and its interface with the PLC.

Key Features:

#SIMATIC HMI #Touch Panel

What is the primary function of the Siemens 6AV6545-5BC00-0BQ0?

This unit functions as an industrial Human-Machine Interface (HMI) for operator control, process visualization, and monitoring within automation systems.

Which product series does this touch panel belong to?

It is part of the Siemens SIMATIC HMI Touch Panels 170 series.

Is the 6AV6545-5BC00-0BQ0 still actively manufactured?

According to the provided specifications, the product phase for this model is 'Obsolete'.

What are the package dimensions of this HMI?

The package dimensions are 19.00 x 32.50 x 11.00 cm.

What is the shipping weight of the unit?

The shipping weight is 3.24 kg.
