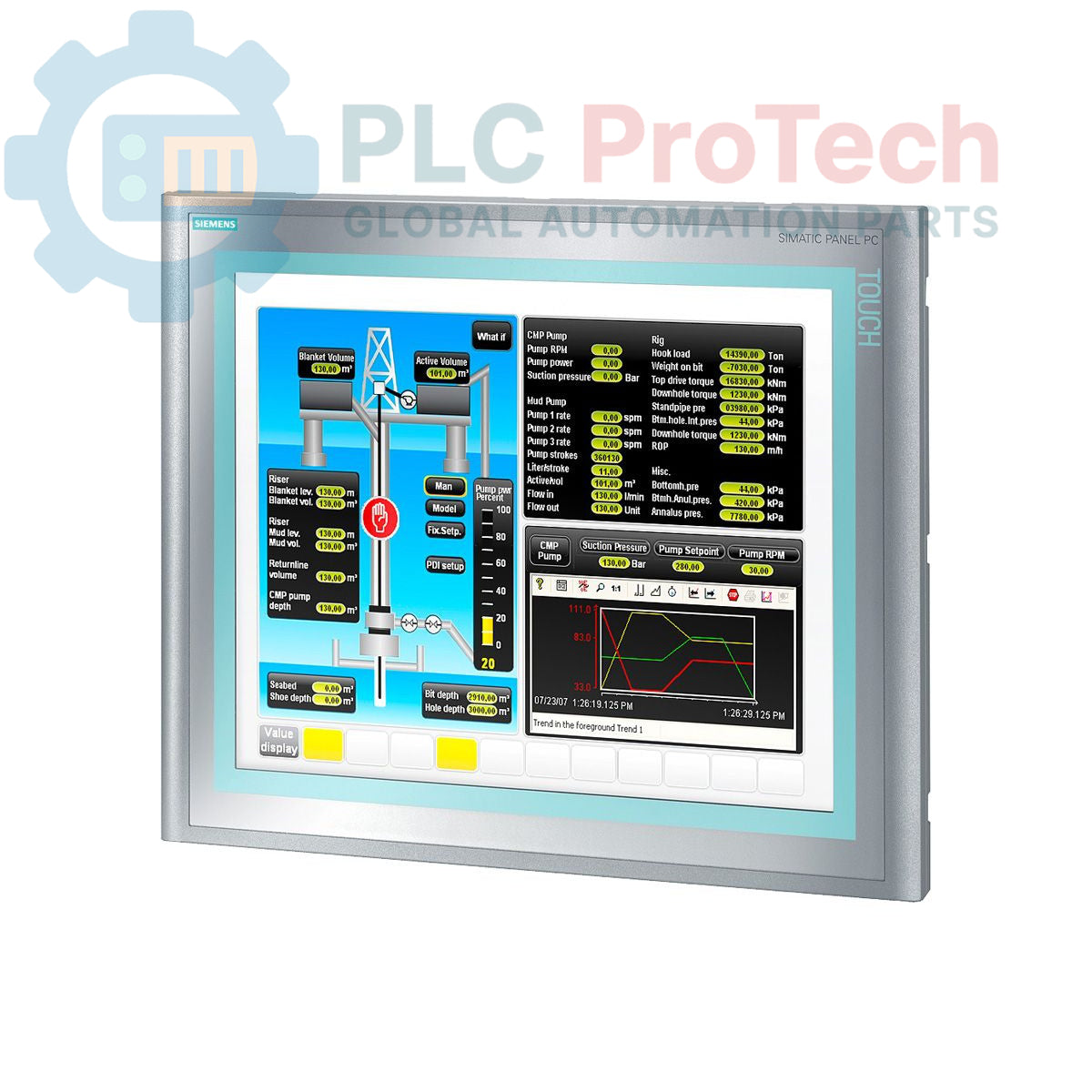

Siemens 6AV7883-7AG20-6GA0 SIMATIC HMI IPC 477C PRO 19-inch Touch Panel PC

Only 8 item(s) left in stock

Manufacturer: Siemens
Product No.: 6AV7883-7AG20-6GA0
Country of origin:Deutschland
Product Type: Industrial Panel PC
Barcode: 85371098
Payment: T/T, Western Union
Weight: 15020g
Dimensions: 46.50 x 30.80 x 20.00 cm
Shipping port: Xiamen
Warranty: 12 months

Description

The Siemens 6AV7883-7AG20-6GA0 is a SIMATIC HMI IPC 477C PRO industrial panel PC designed for demanding production environments. This unit comes as an optional bundle with WinCC flexible 2008 and WinAC, providing a versatile solution for process visualization and control. It features a 19-inch touch display, fully protected by an IP65-rated housing, making it suitable for areas exposed to dust or moisture.

Equipped with an Intel Core2Duo 1.2 GHz processor and 2 GB DDR3 RAM, the 6AV7883-7AG20-6GA0 delivers reliable performance for HMI and automation tasks. The system includes a 50 GB solid-state drive (SATA, high endurance) for fast data access and enhanced durability. Connectivity options are comprehensive, featuring four USB ports on the back and two Gigabit Ethernet (PROFINET/IE) interfaces. The standard front panel ensures easy integration into existing systems, while two CF slots (not equipped) offer additional expansion possibilities. Windows 7 Ultimate MUI is pre-installed on the SSD without SIMATIC software.

Features

19-inch Touch Display
IP65 fully protected housing
Intel Core2Duo 1.2 GHz Processor
2 GB DDR3 RAM
50 GB SATA Solid-State Drive (high endurance)
4x USB ports (rear)
2x Gigabit Ethernet (PROFINET/IE) interfaces
Pre-installed Windows 7 Ultimate MUI
Optional bundle with WinCC flexible 2008 and WinAC

Applications

Process visualization and control systems
Human Machine Interface (HMI) tasks in industrial settings
Automation tasks requiring robust computing
Integration into diverse production lines and machinery
Environments requiring IP65 protection against dust and moisture

Technical Specifications

Brand	Siemens
Manufacturer	Siemens
Series	Simatic Panel PC
Sub-Series	HMI
Product Type	Industrial PC
Model	6AV7883-7AG20-6GA0
Display	19-inch Touch Display
Protection Rating	IP65
Processor	Intel Core2Duo 1.2 GHz
RAM	2 GB DDR3
Storage	50 GB SATA Solid-State Drive (high endurance)
Operating System	Windows 7 Ultimate MUI (pre-installed)
Communication Interfaces	2x Gigabit Ethernet (PROFINET/IE)
USB Ports	4x USB (rear)
Expansion Slots	2x CF slots (not equipped)
Software Bundle	WinCC flexible 2008 / WinAC (optional)
Product Phase	Phase-Out
Package Dimensions (Calculated)	46.50 x 30.80 x 20.00 cm
Shipping Weight	15.02 kg
Commodity Code	85371098
Export Control Regulations (ECCN)	N

Key Features:

#Industrial Panel PC #SIMATIC HMI IPC

What is the primary function of the Siemens 6AV7883-7AG20-6GA0?

It is an industrial panel PC designed for process visualization, control, and HMI tasks in demanding production environments, often bundled with WinCC flexible 2008 and WinAC.

What display features does this unit offer?

The unit features a 19-inch touch display, providing an interactive interface for operators.

What operating system is pre-installed on the panel PC?

Windows 7 Ultimate MUI is pre-installed on the 50 GB solid-state drive, without additional SIMATIC software.

What are the main connectivity options available?

It includes four USB ports on the back and two Gigabit Ethernet interfaces, supporting PROFINET/IE for industrial communication.

Is this unit suitable for harsh industrial environments?

Yes, its fully protected IP65-rated housing makes it suitable for use in areas exposed to dust or moisture.
