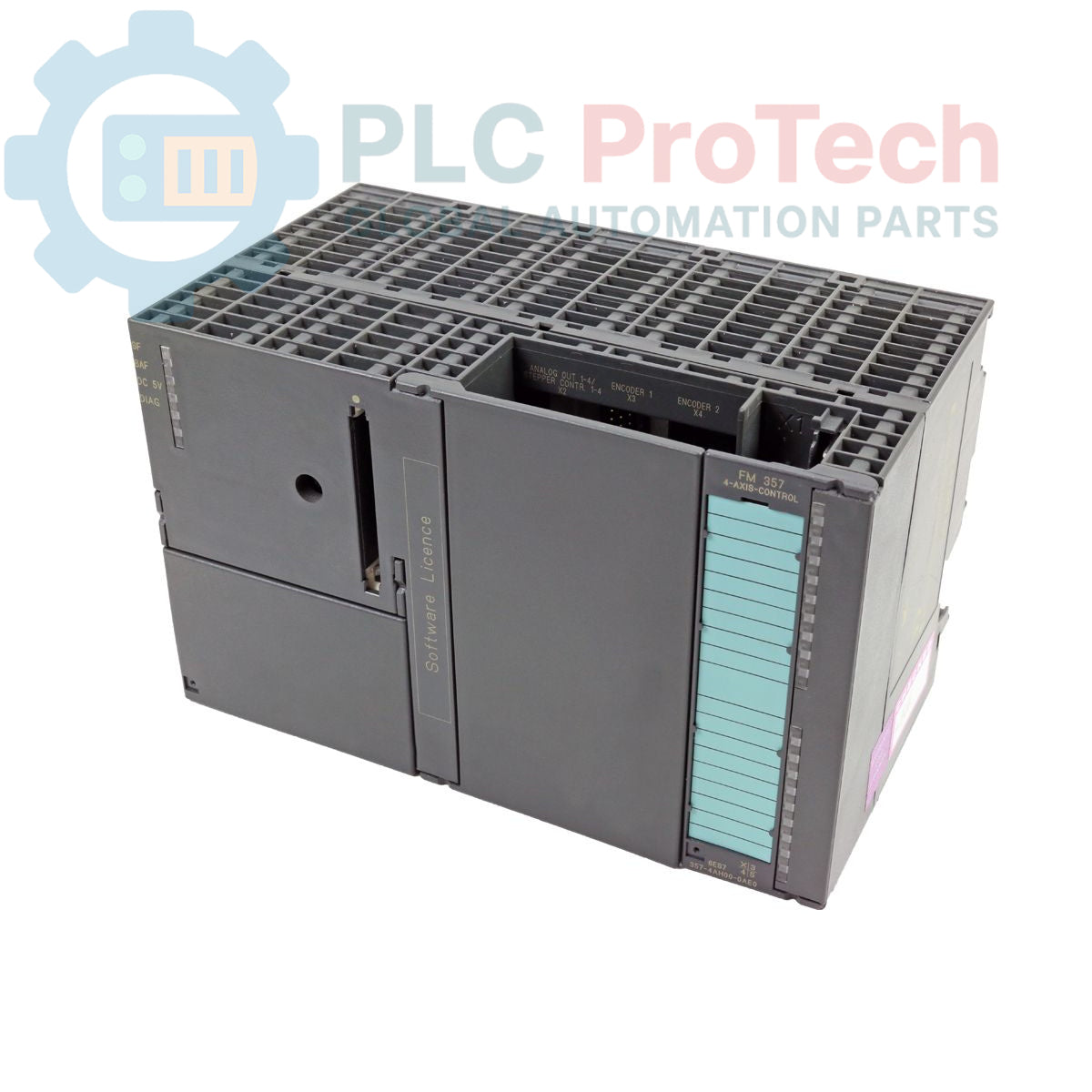

Siemens 6ES7357-4AH00-0AE0 SIMATIC S7-300 FM 357 Function Module

Description

The 6ES7357-4AH00-0AE0 is a SIMATIC S7-300 FM 357 function module hardware unit designed for advanced positioning and path control applications. This module provides integrated support for the control of both stepper and servo motors, utilizing 4 measuring circuits for precise motion management. Engineered to function within the SIMATIC S7-300 automation system, the FM 357 enables complex multi-axis synchronization and accurate positioning, facilitating high-performance motion control for industrial production machinery.

Features

• Module Type: Positioning and path control function module (FM 357)
• Motion Control: Supports both stepper and servo motor technologies
• Measuring Channels: 4 integrated measuring circuits
• System Compatibility: Designed specifically for the SIMATIC S7-300 PLC architecture
• Functionality: Enables precise path control and coordinated motion profiles

Applications

• High-speed positioning systems
• Complex multi-axis machine tool control
• Automated assembly and handling equipment
• Synchronized industrial motion sequences
• Servo and stepper motor integration in production lines

Technical Specifications

Installation Guidelines

• Mounting: Install the module onto the S7-300 mounting rail. Ensure it is properly engaged with the backplane bus connector to establish communication with the CPU.
• Wiring: Connect the servo or stepper motor drive interfaces to the corresponding measuring circuits according to the system wiring diagram. Use shielded cables to minimize electrical noise.
• Configuration: The module requires specific software configuration within the STEP 7 programming environment to define motion parameters and coordinate the four measuring circuits.
• Safety: Always disconnect power to the rack before inserting or removing the function module to prevent damage to the module electronics or the backplane.
• Grounding: Ensure the mounting rail is connected to a common system ground to maintain signal integrity and adhere to electromagnetic compatibility (EMC) standards.
