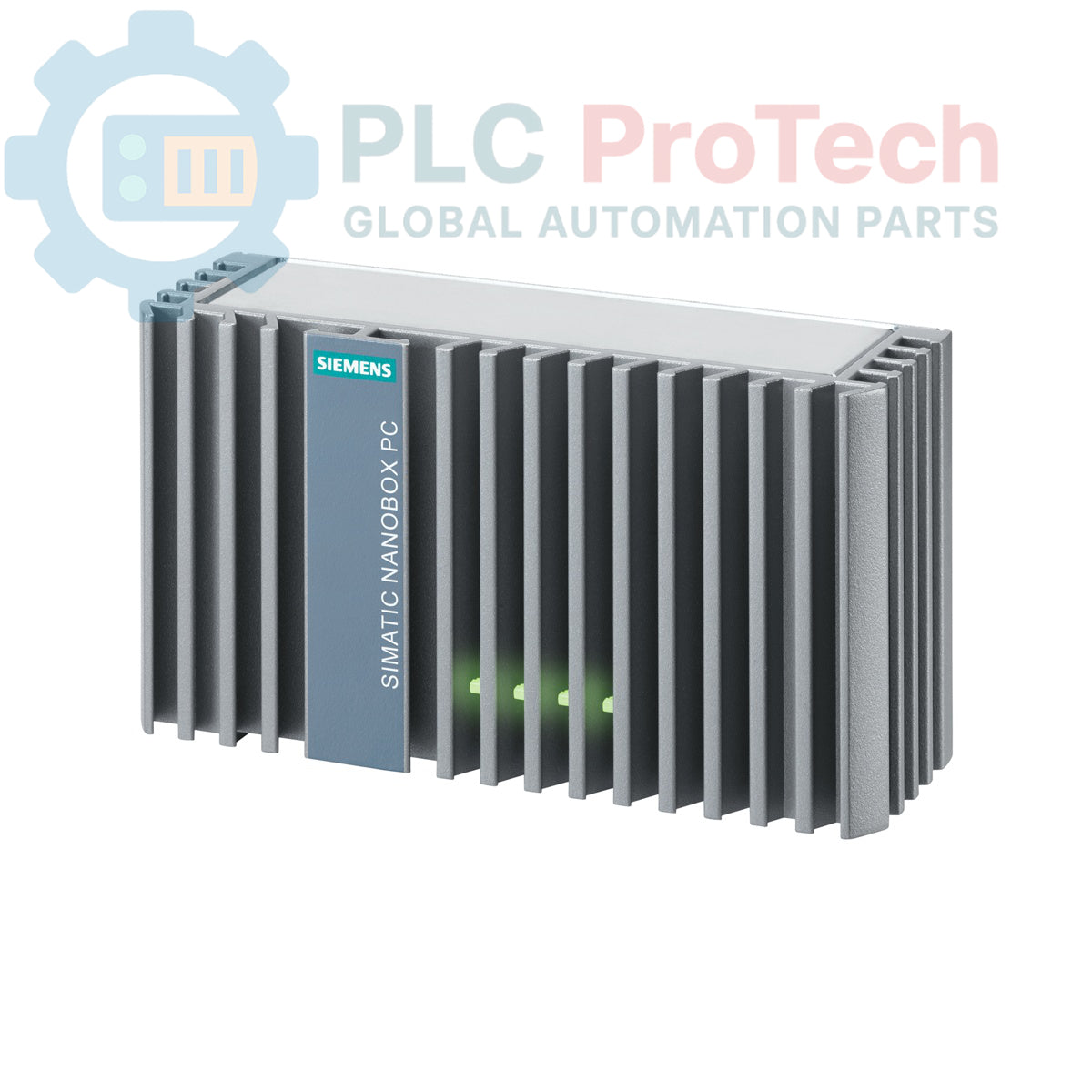

Siemens 6ES7647-8BA11-1LA1 SIMATIC IPC227E Nanobox-PC

Description

The Siemens 6ES7647-8BA11-1LA1 is a high-performance, ultra-compact SIMATIC IPC227E Nanobox PC. Designed for space-constrained industrial environments, this fanless embedded computer provides reliable performance for machine, plant, and process automation tasks. Powered by an Intel Celeron N2807 (2C/2T) processor and equipped with 2 GB of RAM, it serves as an efficient platform for headless operations or control visualization. It features a robust 24 V DC industrial power supply and is designed for DIN rail mounting, making it ideal for direct integration into control cabinets.

Features

• Processor: Intel Celeron N2807 (Dual-core/Dual-thread)
• Memory: 2 GB RAM
• Storage: 8 GB CFast card
• Connectivity: 2 x 10/100/1000 Mbit/s Ethernet (RJ45), 1 x DisplayPort, 1 x USB 3.0, 3 x USB 2.0
• Form Factor: Compact Nanobox design for DIN rail mounting
• Durability: Fanless, maintenance-free industrial design
• Power: 24 V DC industrial power supply

Applications

• Embedded industrial control and automation
• Data acquisition and gateway applications
• Human-Machine Interface (HMI) nodes
• Edge computing in manufacturing plants

Technical Specifications

Installation Guidelines

• Mounting: Utilize the integrated mounting brackets to snap the unit onto a standard 35mm DIN rail. Ensure proper orientation for heat dissipation.
• Ventilation: Despite the fanless design, maintain adequate clearance around the device to allow for natural convection cooling.
• Grounding: Connect the functional earth (FE) terminal to a low-impedance ground to protect against electrical interference and surges.
• Connectivity: Use industrial-grade shielded Ethernet cables to ensure reliable data transmission in high-EMI environments.
• Power: Ensure the 24 V DC supply is stabilized and protected against reverse polarity as per the system manual.
