Siemens 6ES7713-1BB10-0AD3 SIMATIC Field PG M2 Programming Device

Description

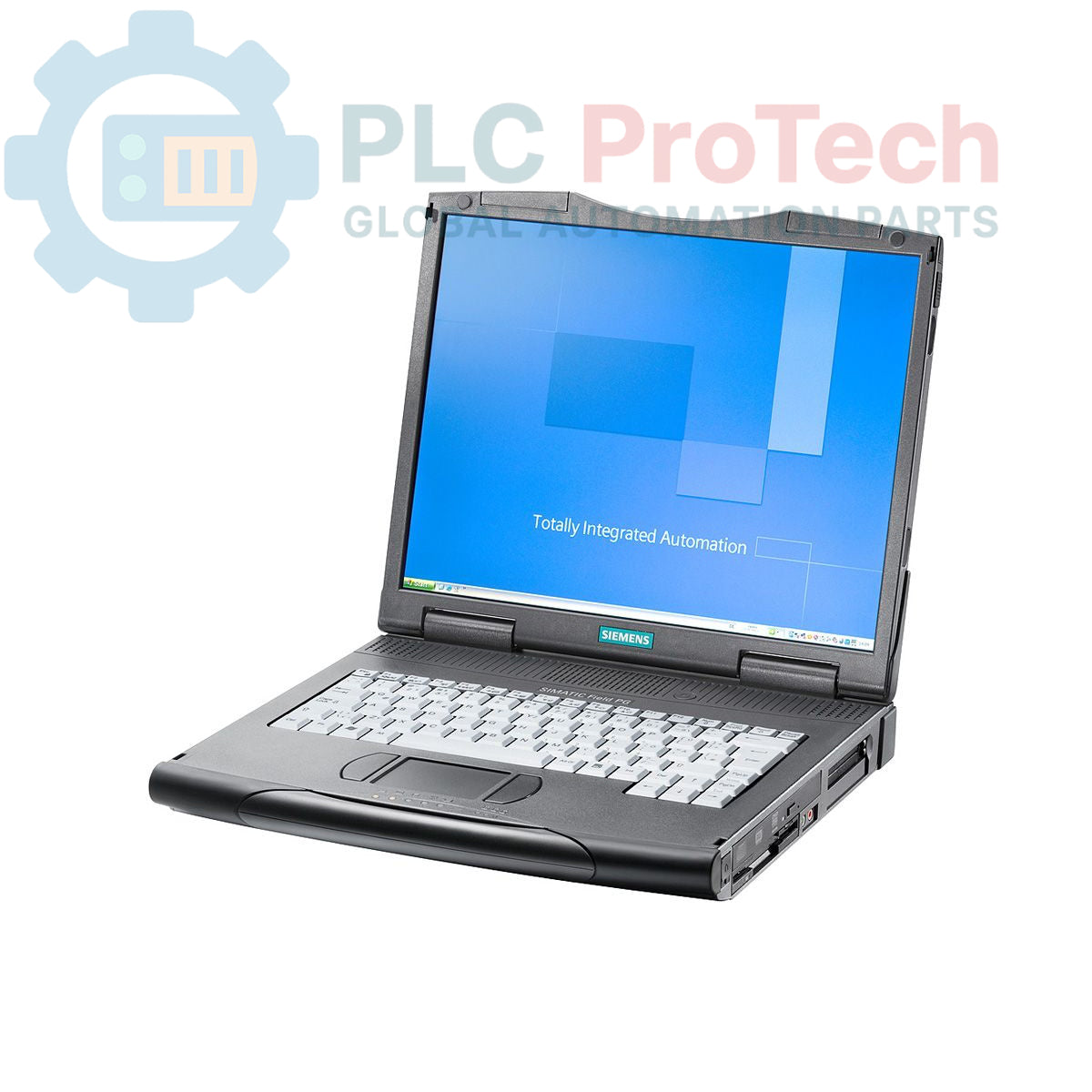

The Siemens 6ES7713-1BB10-0AD3 is a SIMATIC Field PG M2 Premium model, a ruggedized portable programming device designed for industrial automation environments. This unit is equipped with a 2.2 GHz Core 2 Duo T7500 processor, 2 GB of DDR2 RAM, and a 250 GB S-ATA hard drive for storing complex engineering projects. It includes a comprehensive suite of pre-installed Siemens automation software, including licenses for STEP 7 Professional, WinCC flexible Advanced, and STEP 5, making it a complete solution for commissioning, servicing, and diagnosing SIMATIC control systems. The device features a high-resolution 15-inch SXGA+ display and comes with essential accessories like an S5-PLC cable and an EPROM adapter.

Features

• Processor: Intel Core 2 Duo T7500 at 2.2 GHz
• Memory: 2 GB DDR2 RAM
• Storage: 250 GB S-ATA Hard Disk Drive
• Display: 15-inch SXGA+ (1400 x 1050 resolution)
• Optical Drive: DL Multistandard DVD RW
• Operating System: Windows XP Professional (English MUI)
• Pre-installed Software: STEP 7 Professional, STEP 5, STEP 7 Micro/WIN, STEP 7 Basic, WinCC flexible Advanced
• Connectivity: WLAN and Modem with European approvals
• Included Accessories: EPROM adapter and S5-PLC cable

Applications

• PLC programming and software development
• HMI configuration and design
• System commissioning and startup
• On-site diagnostics and troubleshooting
• Industrial network analysis
• Field maintenance and system servicing

Technical Specifications

Installation Guidelines

1. 1 Inspect Device: Before use, visually inspect the Field PG, power supply, and all cables for any signs of physical damage. Do not use if damage is apparent.
2. 2 Power Connection: Connect the provided power cable to the Field PG and a grounded, stable power outlet that matches the supply's voltage rating. Avoid using ungrounded extension cords or multi-plugs in industrial settings.
3. 3 Initial Boot and Verification: Power on the device and allow the operating system to load completely. Verify that the required engineering software (e.g., STEP 7) launches correctly before proceeding to a live environment.
4. 4 Data Backup: Before connecting to a control system to download or modify a program, always create a backup of the existing project and machine parameters. Store the backup on a separate, secure medium.
5. 5 Controller Connection: Use the appropriate communication cable (e.g., the included S5-PLC cable or a standard MPI/Profibus/Ethernet cable) to establish a connection. Ensure the cable is securely seated in both the Field PG and the controller port before initiating communication.
