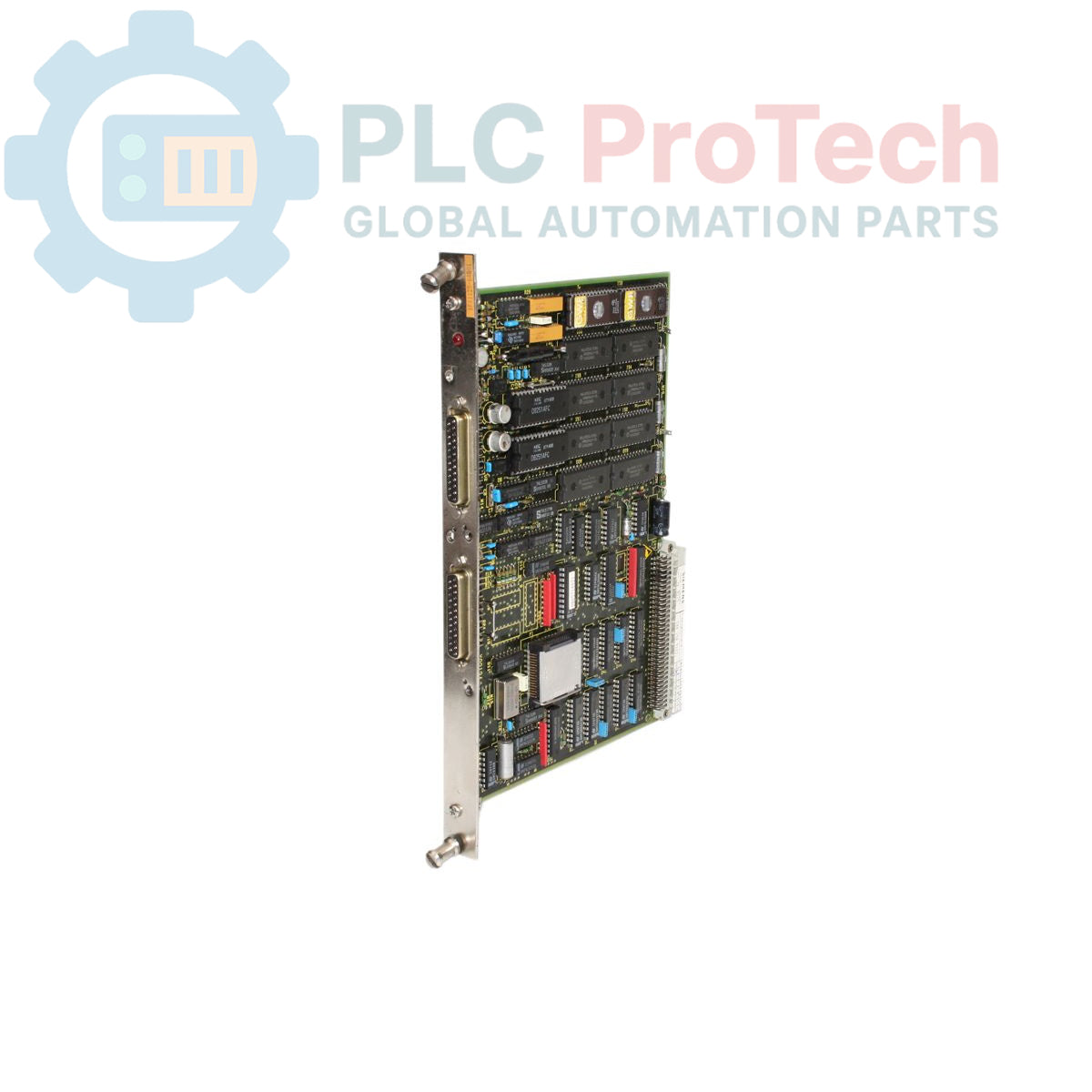

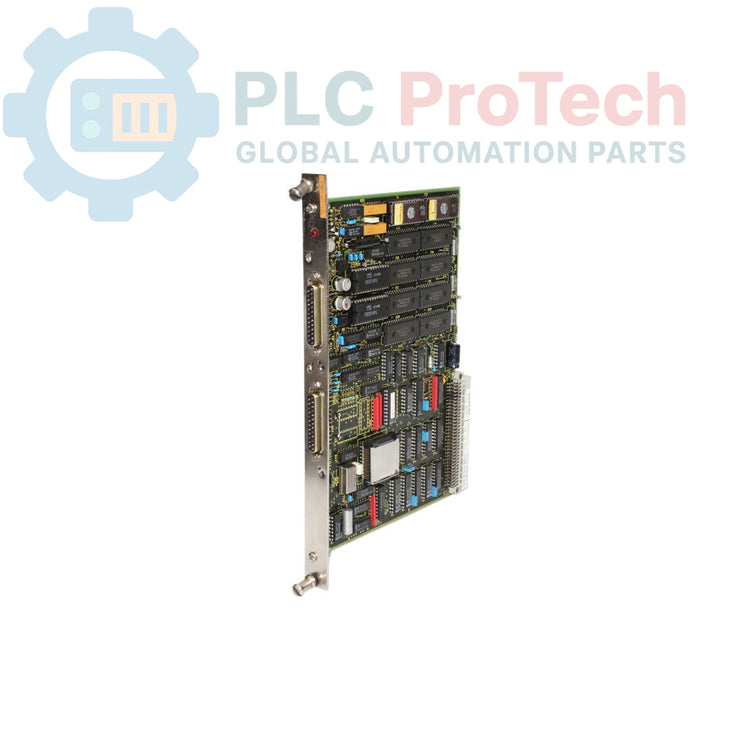

Siemens 6FX1125-8AB01 SINUMERIK 810-GA1 CPU-Modul

The 6FX1125-8AB01 is a SINUMERIK 810-GA1 CPU module, specifically designed as a surface-mount device (SMD) processor board for the Sinumerik 810 control system. This module features a 48 KB memory capacity and is supplied without a bootstrap loader, requiring proper initialization and software loading to integrate into an existing numerical control (NC) architecture. As a core component of the Sinumerik 810 series, this CPU facilitates the processing of CNC instructions and machine logic, serving as a critical replacement component for legacy manufacturing equipment.

Features

• Compatibility: Specifically designed for the SINUMERIK 810-GA1 control series.
• Architecture: SMD (Surface Mount Device) design for high-density component integration within the control unit.
• Memory: Integrated 48 KB onboard memory for system tasks and control parameters.
• Configuration: Delivered without bootstrap software, allowing for user-defined system loading.

Applications

• Replacement and maintenance of legacy SINUMERIK 810 CNC control systems.
• Industrial CNC machine tool management.
• Automation systems requiring specific GA1 series controller processing.

Technical Specifications

Installation Guidelines

• Handling: As an SMD-based PCB, the module is highly sensitive to Electrostatic Discharge (ESD). Always use an anti-static wrist strap when handling the unit.
• Bootstrap Loading: Because this unit is supplied without a bootstrap, ensure you have the appropriate system software and EPROM tools required to initialize the CPU before installation into the control rack.
• Seating: Verify that the edge connector and any internal ribbon cables are seated securely in the Sinumerik housing to ensure reliable electrical contact.
• Power: Ensure the machine control system is powered down completely before the removal or insertion of the CPU module.
