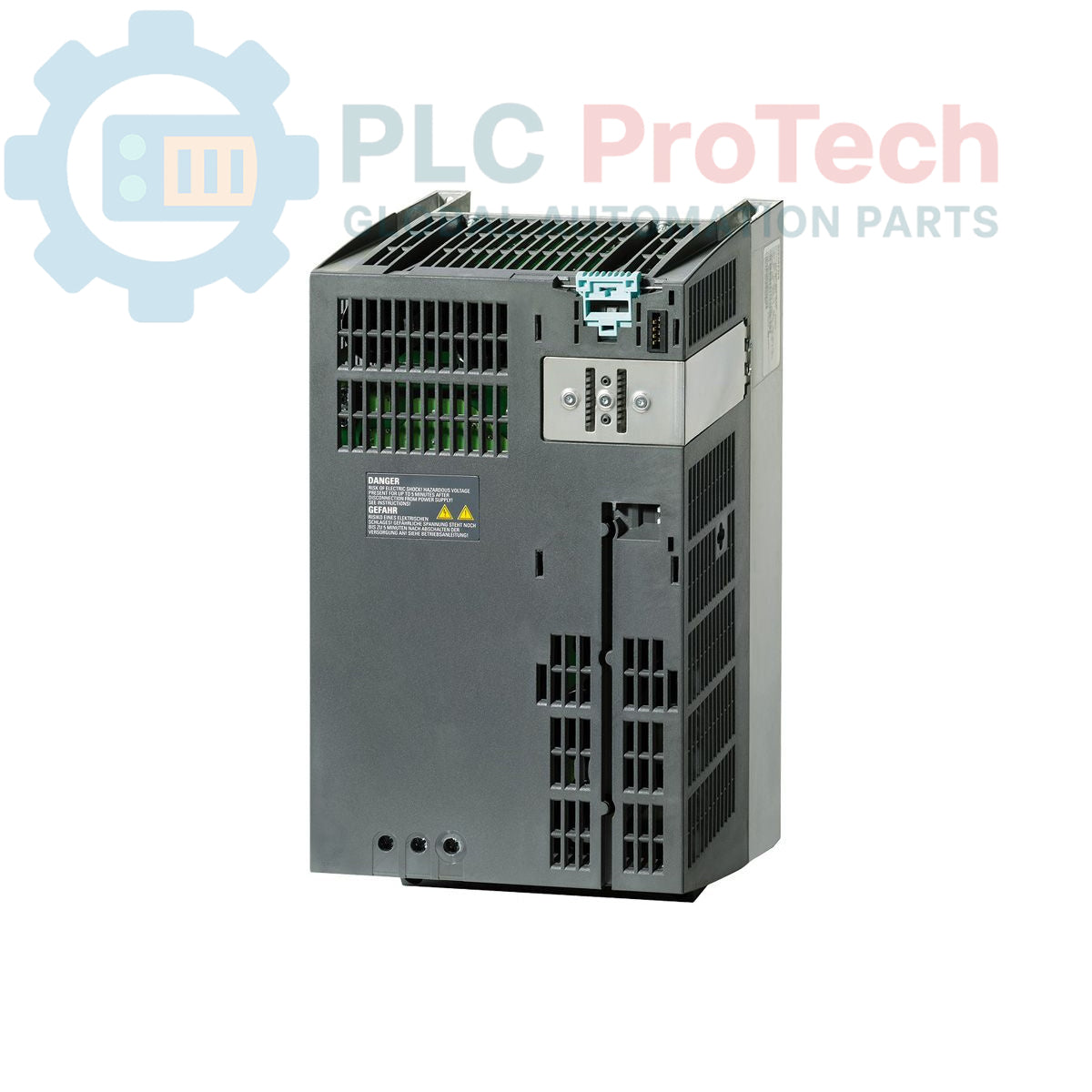

Siemens 6SL3210-1SE22-5UA0 SINAMICS S120 Leistungsmodul PM340

Description

The 6SL3210-1SE22-5UA0 is a SINAMICS S120 Power Module (PM340) designed for high-performance motor control within industrial automation systems. This module is engineered for robust power conversion, supporting a 3-phase input voltage range of 380 V to 480 V at 50/60 Hz.

Constructed in a compact Blocksize frame (Size FSC), this power module provides a nominal output current of 25 A. It is equipped with an integrated internal air cooling system to maintain optimal operating temperatures, ensuring reliability during continuous duty cycles. As a core component of the Siemens S120 drive family, the 6SL3210-1SE22-5UA0 offers flexible integration for multi-axis or complex drive configurations in industrial production lines.

Features

• SINAMICS S120 Power Module (PM340)
• Compact Blocksize construction (Frame size FSC)
• 3-phase input voltage range: 380–480 V AC
• Nominal output current: 25 A
• Integrated internal air cooling system
• IP20 ingress protection rating

Applications

• Multi-axis industrial motion control systems
• High-precision positioning and speed control applications
• Production machinery requiring modular drive architectures
• Industrial automation drive system upgrades

Technical Specifications

Installation Guidelines

• Mounting: Designed for vertical mounting within a control cabinet. Ensure sufficient clearance is maintained above and below the module to facilitate effective air intake and exhaust.
• Cooling: This unit utilizes internal air cooling; ensure the cabinet environment is clean and free from conductive dust to prevent debris buildup within the cooling channels.
• Grounding: Establish a high-integrity connection to the protective earth (PE) busbar to ensure electromagnetic compatibility and operator safety.
• Cable Routing: Use shielded power cables to minimize electromagnetic interference (EMI) with sensitive control signal wiring in the vicinity of the power module.
• Environment: Installation should be in a temperature-controlled cabinet environment to maintain the rated performance and service life of the module.
